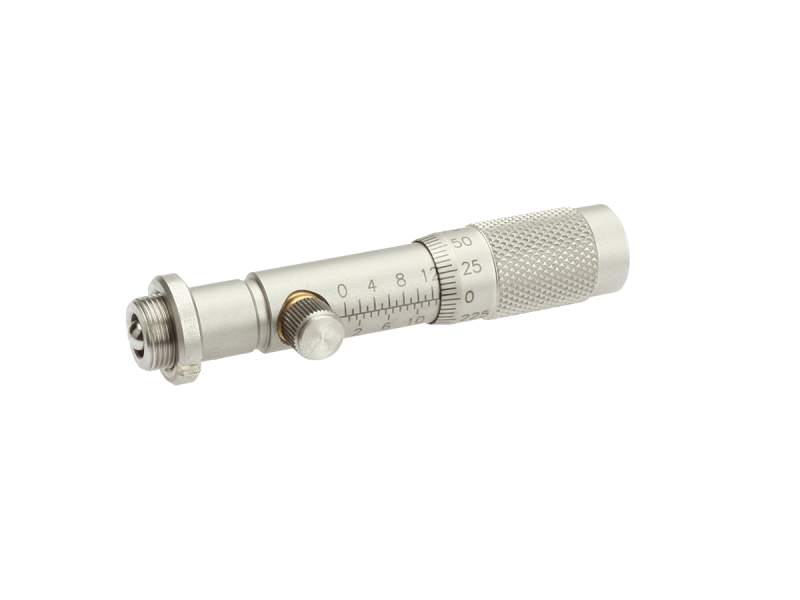

The HR Series Micrometer Heads have a novel thumbscrew locking mechanism that clamps a non-threaded portion of the screw from all sides. This stress-balanced design secures the position with negligible displacement during locking.
All HR series micrometers have the same 9.5-mm mounting interface making them both interchangeable with other micrometers and compatible with the Newport stages listed below.
HR Series Lockable High-Resolution Micrometer Heads have 0.25 mm pitch threads (over 100 TPI), providing twice the sensitivity of standard SM Series. These fine threads allow 0.5 µm sensitivity with direct position readout in 5 µm graduations. They are recommended for applications requiring sensitive positioning, as well as accurate position readout.
| Compare | Description | Compatibility | Drawings, CAD & Specs | Avail. | Price | |||
|---|---|---|---|---|---|---|---|---|
 |
562-XYZ XYZ Linear Stage, ULTRAlign, 0.5 in., Right-Handed, 8-32 and 1/4-20 | IMPERIAL |
In Stock
|
$2,988.00 |
|
|||
 |
SM-13 Vernier Micrometer, 13 mm Travel, 9 lb. Load Capacity, 50.8 TPI | UNIVERSAL |
In Stock
|
$103.00 |
|
|||
 |
SM-25 Vernier Micrometer, 25 mm Travel, 23 lb. Load Capacity, 50.8 TPI | UNIVERSAL |
In Stock
|
$163.00 |
|
|||
 |
M-562F-XYZ Fiber Alignment Stage, ULTRAlign, Right-Handed, 13 mm XYZ, M4 and M6 | METRIC |
In Stock
|
$2,977.00 |
|
|||
| |
562F-XYZ Fiber Alignment Stage, ULTRAlign, Right-Handed, 13 mm XYZ Travel, 8-32 and 1/4-20 | IMPERIAL |
In Stock
|
$2,977.00 |
|
| Compare | Description | Compatibility | Drawings, CAD & Specs | Avail. | Price | |||
|---|---|---|---|---|---|---|---|---|
 |
SDK-1 Mounting Kit, Side-Drive, X or Y Axis, 462 Series | UNIVERSAL |
In Stock
|
$110.00 |
|
|||
 |
AB-4 Actuator Push Block, Spare, 423/433/443/426/436 Stages | UNIVERSAL |
In Stock
|
$30.00 |
|
|||
 |
SDK-2 Mounting Kit, Side-Drive, Z Axis, 462 Series | UNIVERSAL |
In Stock
|
$110.00 |
|
|||
 |
AB-3 Mounting Block, Actuator, Spare, 423/433/443/426/436 Stages | UNIVERSAL |
In Stock
|
$30.00 |
|
| Compare | Description | Compatibility | Drawings, CAD & Specs | Avail. | Price | |||
|---|---|---|---|---|---|---|---|---|
| |
SM-13 Vernier Micrometer, 13 mm Travel, 9 lb. Load Capacity, 50.8 TPI | UNIVERSAL |
In Stock
|
$103.00 |
|
|||
 |
HR-6 Micrometer Head, High Resolution, 0.5 µm Sensitivity, 6 mm Travel | UNIVERSAL |
2 Weeks
|
$243.00 |
|
|||
 |
BM11.16 Micrometer Head, Standard Resolution, 16 mm Travel, 9 lb. Load | UNIVERSAL |
In Stock
|
$233.00 |
|
|||
 |
DM-13L Lockable Differential Micrometer, 13 mm Coarse, 0.2 mm Fine, 11 lb. | UNIVERSAL |
In Stock
|
$726.00 |
|
|||
 |
AJS127-0.5 Adjustment Screw, 127 TPI, 12.7 mm Travel, Small Knob, Side Lock | UNIVERSAL |
In Stock
|
$53.00 |
|
|||
 |
DM11-16 Differential Micrometer Head, 16.1 mm Coarse, 0.1 mm Fine, 6.6 lb. Load | UNIVERSAL |
In Stock
|
$530.00 |
|
|||
 |
AJS100-0.5 Adjustment Screw, 100 TPI, 12.7 mm Travel, Small Knob, Side Lock | UNIVERSAL |
In Stock
|
$39.00 |
|
|||
 |
DM-13 Differential Micrometer Head, 13.0 mm Coarse, 0.2 mm Fine, 5 lb. Load | UNIVERSAL |
In Stock
|
$680.00 |
|
|||
 |
TRA12CC Motorized Actuator, Miniature, 12 mm Travel, DC Servo motor | UNIVERSAL |
In Stock
|
$1,065.00 |
|
