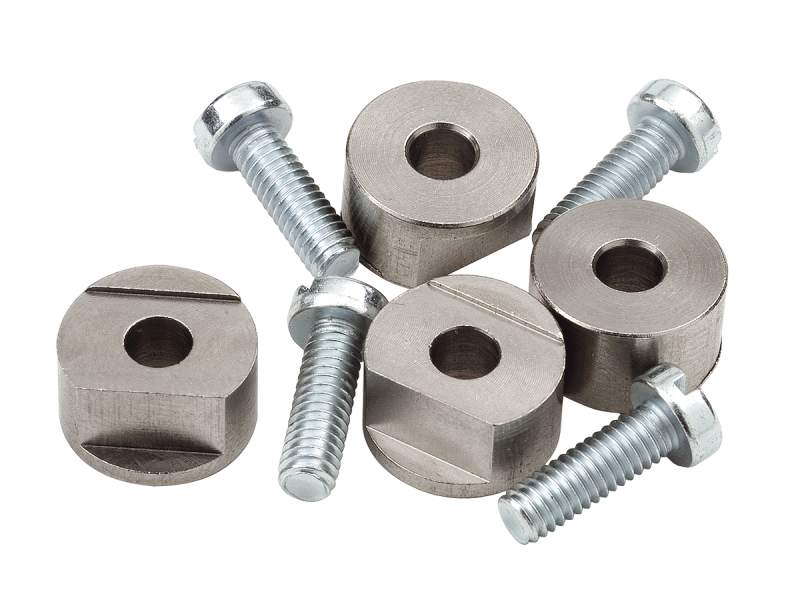

The M-BR5 Mounting Bridle secures round base components such as a M-UTR120 or M-TGN120 Series stage to a similar size linear and rotary positioning devices such as a M-MVN120 or UMR12. Much like motor clamps, precision machined tabs on the steel bridles insert into a groove around the base of the component to be mounted. In some cases, the base plate of the component to be mounted must be removed for proper usage. M-BR bridles are sold in sets of four, and have a 10.4 mm height.
BR32Mounting Bridle, UTR46S to MVN50 or UMR5, 0.18 in. Height, Qty 4
IMPERIAL
In Stock
$53.00
M-BR42Mounting Bridle,M-UTR80S to M-MVN80, M-TGN80 or M-UMR8, 5.6 mm Height, Qty 4
METRIC
In Stock
$58.00
Compatible
Compare
Description
Compatibility
Drawings, CAD & Specs
Avail.
Price
M-MVN120Vertical Linear Stage, Precision Ball Bearing, 20 mm Travel, M5 & M6 Threads
METRIC
In Stock
$2,601.00
M-TGN120Tilt Platform, Stainless Steel, 120 x 180 mm, ±2.86° Range, M5 and M6
METRIC
In Stock
$954.00
M-UTR160Manual Rotation Stage, Steel, 159 mm Diameter, 4° Fine Travel, M6
METRIC
In Stock
$2,270.00
M-PBN12Base Plate, Used with UMR12 Series, MVN120 & UTR120 Series
UNIVERSAL
In Stock
$151.00
M-BR5 - Drawings & CAD
Additional CAD file downloads are not available for this product.
M-BR5 - Drawings
Additional drawings are not available for this product.
