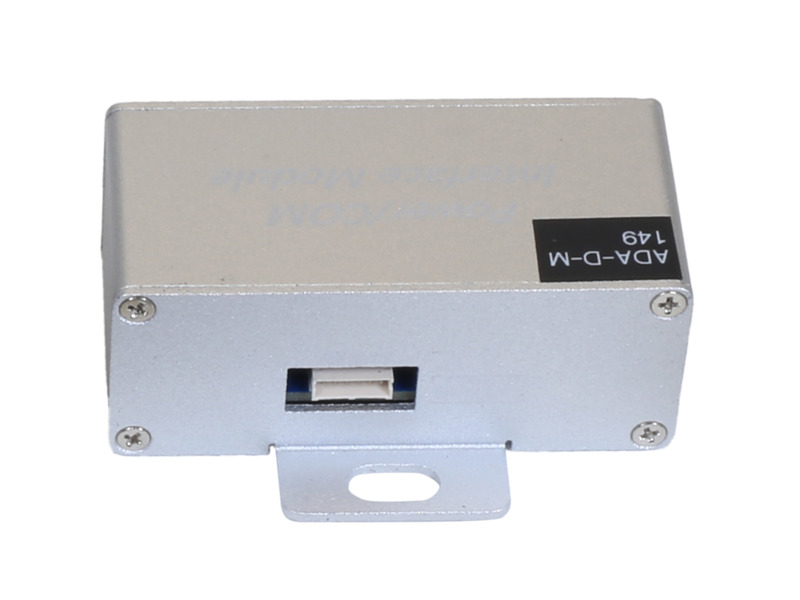

M-CB Modulator Bias Control Board

Modulator Bias Control Board, 5 Mode

Model: M-CB

$1,850.00

In Stock

Compare

Add to List

Product Series Overview

Fiber-Optic Modulator Accessories

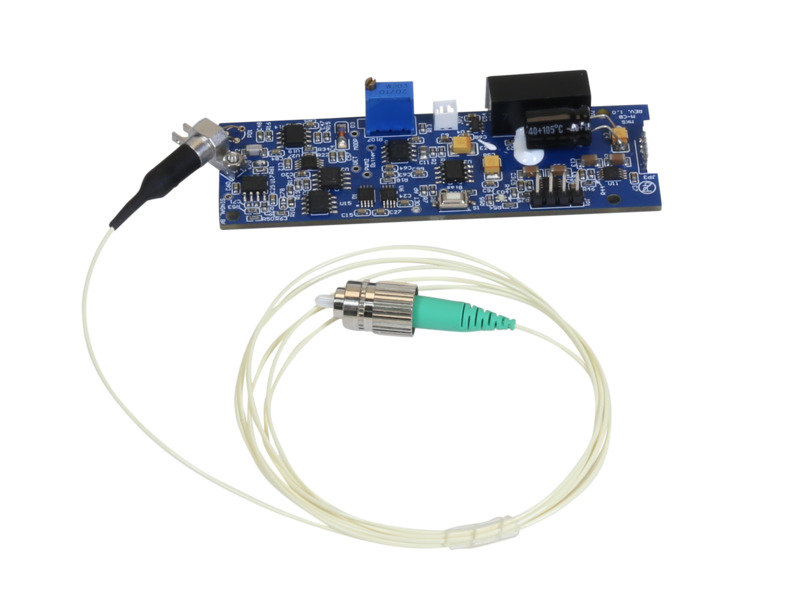

The M-CB is a compact bias control board designed to maintain the linear operating point of optical intensity modulators. Featuring a compact miniature design for OEM integration, the M-CB allows for a stable Q+, Q-, Min, Max, and Manual operation over long periods of time. With a single 5 VDC power and RS485 multi-addressing control and monitor interface, the M-CB unit is the ideal choice for industrial and OEM applications when paired with any of Newport’s optical modulators.

Specifications

Technical Specs

Type

Modulator Bias Control Board
Operating Frequency

1 kHz Dithering
Power Requirements

+5 VDC

Operating Temperature

-10 to 60 °C
Storage Temperature

-60 to 90 °C

Type

Modulator Bias Control Board
Operating Frequency

1 kHz Dithering
Power Requirements

+5 VDC

Operating Temperature

-10 to 60 °C
Storage Temperature

-60 to 90 °C

Resources & Downloads

DS-062303 M-CB Datasheet.pdf (2 MB, PDF)
