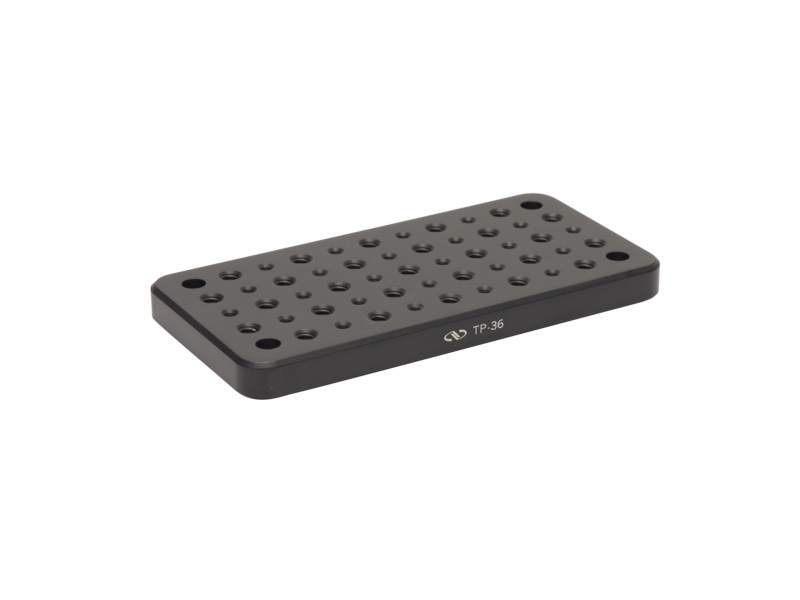

The M-TP-36 is a 76.2 X 152.4 mm threaded plate featuring a double-density pattern of M4 and M6 threaded mounting holes. Use these plates to combine several optical mounts together on to a single stable platform. Each of these plates also have counterbored thru holes which can be used for stand-off posts and pedestals. These threaded plates are made from 1/2-in. (12.7-mm) thick aluminum alloy plate and finished with a durable type 2 black anodize.
Use these pedestal posts along with the spacers to set your platform height
| Compare | Description | Compatibility | Drawings, CAD & Specs | Avail. | Price | |||
|---|---|---|---|---|---|---|---|---|
 |
SP-1Z Optical Pedestal, Magnetic Base, 1.0 in. Height, 0.5 in. Diameter, 8-32 | IMPERIAL |
In Stock
|
$16.30 |
|
|||
 |
SP-1.5Z Optical Pedestal, Magnetic Base, 1.5 in. Height, 0.5 in. Diameter, 8-32 | IMPERIAL |
In Stock
|
$18.40 |
|
|||
 |
SP-2Z Optical Pedestal, Magnetic Base, 2.0 in. Height, 0.5 in. Diameter, 8-32 | IMPERIAL |
In Stock
|
$20.00 |
|
|||
 |
SP-3Z Optical Pedestal, Magnetic Base, 3.0 in. Height, 0.5 in. Diameter, 8-32 | IMPERIAL |
In Stock
|
$23.00 |
|
|||
 |
SP-4Z Optical Pedestal, Magnetic Base, 4.0 in. Height, 0.5 in. Diameter, 8-32 | IMPERIAL |
In Stock
|
$27.00 |
|
|||
 |
SP-F Clamping Fork, 0.5 in. Optical Pedestals, 1/4-20(M6) Slot | UNIVERSAL |
In Stock
|
$11.40 |
|
Use the SP-F fork to clamp the pedestal posts
Use these pedestal posts along with the spacers to set your platform height
| Compare | Description | Compatibility | Drawings, CAD & Specs | Avail. | Price | |||
|---|---|---|---|---|---|---|---|---|
| |
M-SP-1Z Optical Pedestal, Magnetic Base, 25.4 mm Height, 12.7 mm Diameter, M4 Thread | METRIC |
In Stock
|
$16.30 |
|
|||
| |
M-SP-1.5Z Optical Pedestal, Magnetic Base, 38.1 mm Height, 12.7 mm Diameter, M4 Thread | METRIC |
In Stock
|
$18.40 |
|
|||
| |
M-SP-2Z Optical Pedestal, Magnetic Base, 50.8 mm Height, 12.7 mm Diameter, M4 Thread | METRIC |
In Stock
|
$20.00 |
|
|||
| |
M-SP-3Z Optical Pedestal, Magnetic Base, 76.2 mm Height, 12.7 mm Diameter, M4 Thread | METRIC |
In Stock
|
$23.00 |
|
|||
| |
M-SP-4Z Optical Pedestal, Magnetic Base, 101.6 mm Height, 12.7 mm Diameter, M4 Thread | METRIC |
In Stock
|
$27.00 |
|
|||
| |
SP-F Clamping Fork, 0.5 in. Optical Pedestals, 1/4-20(M6) Slot | UNIVERSAL |
In Stock
|
$11.40 |
|
Use the SP-F fork to clamp the pedestal posts
Use the stand off spacers with the stand offs to reach non-standard platform heights
| Compare | Description | Compatibility | Drawings, CAD & Specs | Avail. | Price | |||
|---|---|---|---|---|---|---|---|---|
 |
SP-0.031-S-10 Pedestal Spacer Pack, 1/32 in., 0.5 in. Diameter, 8-32 (M4) CLR, Qty 10 | UNIVERSAL |
In Stock
|
$29.00 |
|
|||
 |
SP-0.063-S-10 Pedestal Spacer Pack, 1/16 in., 0.5 in. Diameter, 8-32 (M4) CLR, Qty 10 | UNIVERSAL |
In Stock
|
$29.00 |
|
|||
 |
SP-0.125-S-10 Pedestal Spacer Pack, 1/8 in., 0.5 in. Diameter, 8-32 (M4) CLR, Qty 10 | UNIVERSAL |
In Stock
|
$29.00 |
|
|||
 |
SP-0.25-S-10 Pedestal Spacer Pack, 1/4 in., 0.5 in. Diameter, 8-32 (M4) CLR, Qty 10 | UNIVERSAL |
In Stock
|
$29.00 |
|
Stand off spacers are sold in packs of 10 ea.
These are similarly sized mounting plates
| Compare | Description | Compatibility | Drawings, CAD & Specs | Avail. | Price | |||
|---|---|---|---|---|---|---|---|---|
 |
SA2-04x06 Optical Breadboard Plate, Solid Aluminum, 4 x 6 in., 1/4-20 Hole Grid | IMPERIAL |
In Stock
|
$57.00 |
|
|||
 |
SA2-06x06 Optical Breadboard Plate, Solid Aluminum, 6 x 6 in., 1 in. 1/4-20 Grid | IMPERIAL |
In Stock
|
$67.00 |
|
|||
 |
SA2-06x06-D Optical Breadboard Plate, Solid Aluminum, 6 x 6 in., 1/4-20, Double Density | IMPERIAL |
4 Weeks
|
$101.00 |
|
|||
| |
M-SA2-04X06 Optical Breadboard Plate, Solid Aluminum, 100 x 150 mm, 25 mm M6 Grid | METRIC |
In Stock
|
$57.00 |
|
|||
| |
M-SA2-06X06 Optical Breadboard Plate, Solid Aluminum, 150 x 150 mm, 25 mm M6 Grid | METRIC |
In Stock
|
$67.00 |
|
|||
| |
M-SA2-06x06-D Optical Breadboard Plate, Solid Aluminum, 150 x 150 mm, M6, Double Density | METRIC |
In Stock
|
$101.00 |
|
