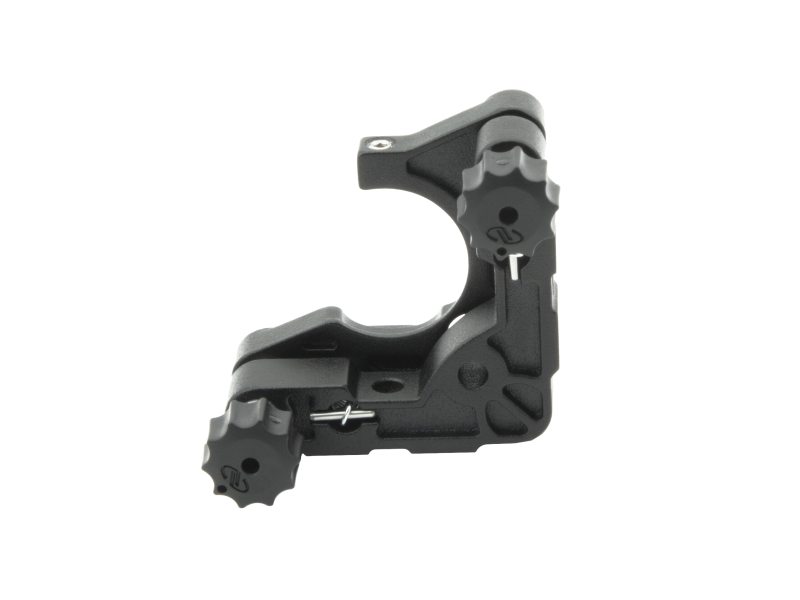

M1Q Mirror Mount

The M1Q Mirror Mount is ideal for general purpose applications that require a compact, robust, kinematic design at an economical price. The M1Q has a clear edge-aperture for 1 inch (25.4 mm) diameter optics. UPA-series adaptors, which are compatible with the M1 mount, allow other various sizes and types of optics to be securely held and positioned. Two precision 100-TPI adjustment screws are standard providing exceptionally smooth, high-resolution adjustment. This product is also available in 10-piece saving pack M1Q-PK.

Specifications

Technical Specs

Mechanism

Kinematic
Optic Diameter

25.4 mm
Number of Actuators

2
Actuator Locks

No
Adjustment Screw Thread

100 TPI
Adjustments

θx, θy
Sensitivity

3.8 arc sec

Angular Range

±4°
Optic Loading

Front
Material

Coated Aluminum
Drive Type

Knob, non-locking
Thread Type

8-32 (M4) CLR
Optical Axis Height

25.4 mm

Mechanism

Kinematic
Optic Diameter

25.4 mm
Number of Actuators

2
Actuator Locks

No
Adjustment Screw Thread

100 TPI
Adjustments

θx, θy
Sensitivity

3.8 arc sec

Angular Range

±4°
Optic Loading

Front
Material

Coated Aluminum
Drive Type

Knob, non-locking
Thread Type

8-32 (M4) CLR
Optical Axis Height

25.4 mm

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

M1Q Drawing (324.6 kB, PDF)

Other

M1Q RoHS Certificate (278.8 kB, PDF)
M1Q_RoHS2021.pdf (682.2 kB, PDF)
