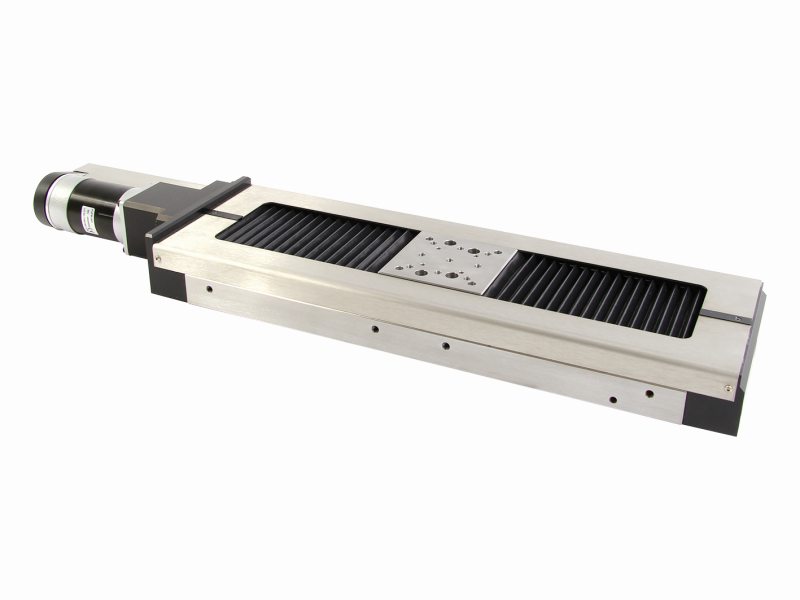

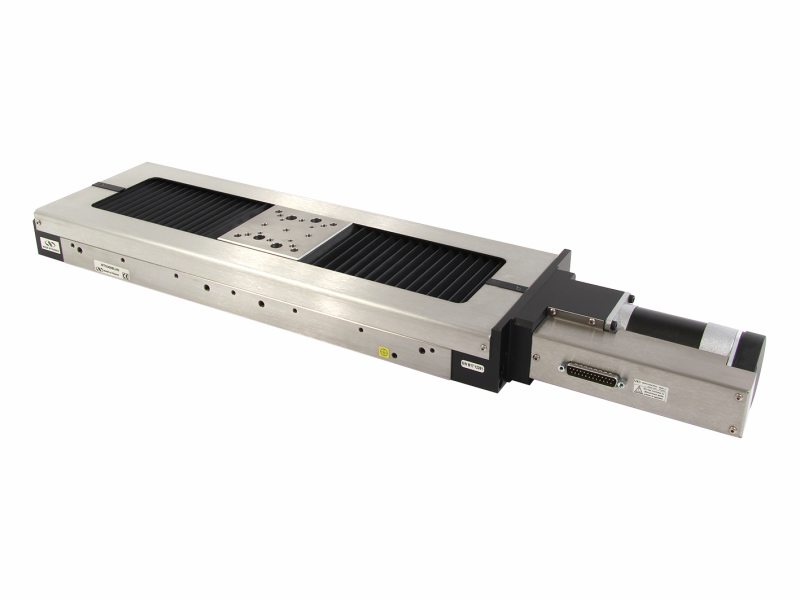

The MTN300BLHS is 300 mm travel reliable, all-steel construction stage with excellent stiffness, load capacity and thermal stability. It can bear up to 100 kg centered load, when mounted horizontally and 200 N axial load capacity in both directions. The MTN300BLHS is equipped with linear guides for smooth and accurate motion trajectory ,brushless motor for 250mm/sec max speed and non-migrating ball cage design for no drift. Ideal for applications that require moving heavy loads at high-speeds with very fine repeatability.
All MTN-BLHS stages are delivered with a MCAB-3-B cable, 3-meter cable with a SUB-D25M connector for direct connection to Newport Controllers.
Based on axis required, choose a specific XPS-D or XPS-RLD controller to pair with the stage. Along with the controller, a driver module is required.
| Compare | Description | Compatibility | Drawings, CAD & Specs | Avail. | Price | |||
|---|---|---|---|---|---|---|---|---|
 |
XPS-D Universal High-Performance 1-8 Axis Motion Controller and Driver 1 | UNIVERSAL | ||||||
 |
XPS-RLD Universal High-Performance 1-4 Axis Motion Controller and Driver 2 | UNIVERSAL |
| Compare | Description | Compatibility | Drawings, CAD & Specs | Avail. | Price | |||
|---|---|---|---|---|---|---|---|---|
 |
MCAB-1-B Cable, 1 m, DB25 Male to DB25 Female, Brushless DC | UNIVERSAL | $277.00 |
|
||||
| |
MCAB-3-B Cable, 3 m, DB25 Male to DB25 Female, Brushless DC | UNIVERSAL |
In Stock
|
$338.00 |
|
|||
| |
MCAB-5-B Cable, 5 m, DB25 Male to DB25 Female, Brushless DC | UNIVERSAL | $417.00 |
|
||||
| |
MCAB-10-B Cable, 10 m, DB25 Male to DB25 Female, Brushless DC | UNIVERSAL | $662.00 |
|
