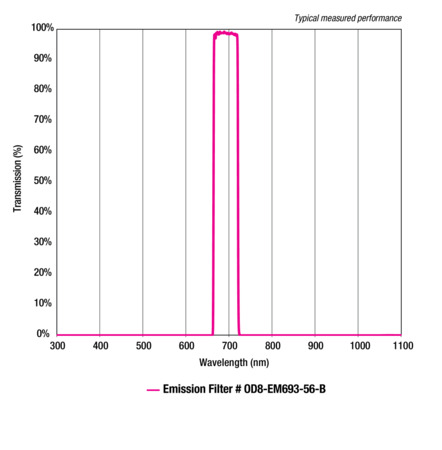

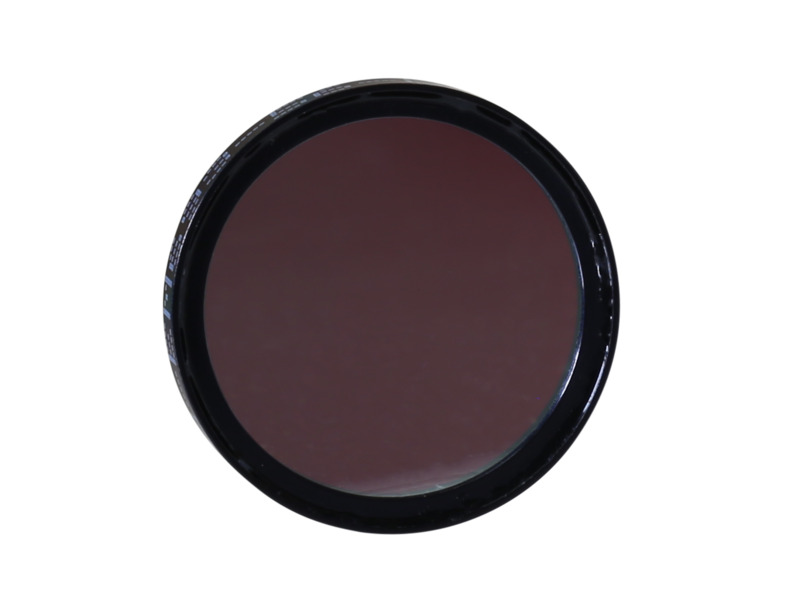

New ODiate® Emission Filter, 25.0 mm, 693 nm CWL, 56 nm FWHM

In addition to Cy5™ the following fluorophores are also compatible with this set:

Abberior STAR 635, Abberior STAR RED, Alexa Fluor® 647, Alexa Fluor^® 660, APC, ATTO 635, ATTO 647, ATTO 655, BODIPY^® 650/665-X, C5-Thiacyanine, Carboxynapthofluorescein, CellMask Deep Red, CF 640R, CF 647, DiD, DRAQ5, DY-635, DY-636, DY-647, DY-650, DY-651, DY-656, EVOblue-30, FluoSpheres® Dark Red, HCS CellMask Deep Red, HCS NuclearMask Deep Red, HiLyte Fluor 647, HiLyte Plus 647, LIVE/DEAD^® Fixable Far Red Dead Cell Stain, MitoTracker^® Deep Red, Nile Blue (EtOH), Nile Blue (MeOH), NirFP, Oxazine 1, PromoFluor-647, Quasar^® 670, Spectrum Far Red, SYTO^® 60, SYTO^® 62, Vybrant^® DyeCycle Ruby.

Newport pushed the boundaries with the introduction of our ODiate Fluorescence Filter Sets, to allow customers to fully optimize their system performance.  Our expert engineering team has been involved from the first stage of design to ensure that we exceed your requirements and continues through the entire process of continual production deliveries.

The coating systems used to produce ODiate filters use a dense sputtering process to provide robust environmental reliability to meet the highest demands for thin-film coatings. The resulting highly durable coatings meet or exceed testing procedures including humidity, thermal shock, adhesion, chemical resistance, and moderate abrasion per U.S. Military and international standards.
