Cell Holder, Height Adjustable, Vacuum Plate, 2x2 to 6x6 in.

Cell Holder, Height Adjustable, Vacuum Plate, 2x2 to 6x6 in.

Model: PVIV-VAC-CHUCK

$2,445.00

In Stock

Compare

Add to List

Product Series Overview

Oriel I-V Test Station

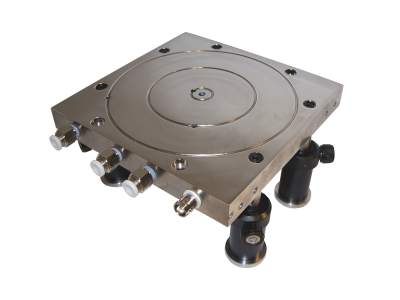

The PVIV-VAC-CHUCK is a height adjustable vacuum plate, capable of mounting photovoltaic PV cells sized from 2 inches x 2 inches through 6 inches x 6 inches. A vacuum pump is required to secure a sample under test, sold separetely.

Resources & Downloads

Manuals

Oriel PVIV Vacuum Chuck User's Manual (750.2 kB, PDF)

Literature

Oriel PVIV Test Solution Datasheet (570.7 kB, PDF)

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

PVIV-VAC-CHUCK-DWG.pdf (451.4 kB, PDF)

Related Products

Accessories

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		PVIV-VAC-PUMP PVIV Vacuum Pump, Oil Free, Cool Air Output, 110 VAC	UNIVERSAL		Show	$1,250.00
		PVIV-VAC-PUMP-220 PVIV Vacuum Pump, Oil Free, Cool Air Output, 220 VAC	UNIVERSAL		In Stock	$1,425.00
		PVIV-PROBE-KIT PVIV Probe Kit, PVIV and QE Systems	UNIVERSAL		In Stock	$1,200.00

Compatible

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		PVIV-1A I-V Test Station, 1 Amp Max, Software and Meter Included	UNIVERSAL		In Stock
		PVIV-10A I-V Test Station, 10 Amp Max, Software and Meter Included	UNIVERSAL		In Stock
