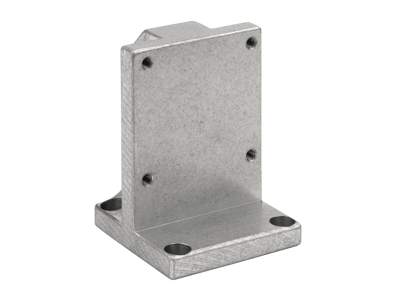

The SDS65-BK 90° Angle Bracket is used to build multi-axis stage assemblies. It is constructed of stainless steel for high rigidity. It's profile is narrow; no wider than the SDS65 stage is attaches to. For additional flexibility, this angle brackets can also be used as an orthogonal platform for component mounting. SDS Series Angle Brackets are compatible with SDS Series linear stages, DS Series linear dovetail stages, RS Series rotation stages, and GON Series goniometers.
360-45Angle Bracket, 45°, 1/4-20 (M6) Slots, 1 in. Spacing
UNIVERSAL
In Stock
$135.00
CB-2-MConstruction Plates, 63.5 x 88.9 mm, 2 pieces, M6
METRIC
In Stock
$137.00
360-30Angle Bracket, 30°/60°, 1/4-20 (M6) Slots, 1 in. Spacing
UNIVERSAL
In Stock
$153.00
360-90Angle Bracket, 90°, 1/4-20 (M6) Slots, 1 in. Spacing
IMPERIAL
In Stock
$103.00
Compatible
Compare
Description
Compatibility
Drawings, CAD & Specs
Avail.
Price
SDS65Manual Linear Stage, 0.98 in. Travel, Ball Bearings, 1/4-20 Threads
IMPERIAL
2 Weeks
$803.00
DS65-XManual Linear Stage, Compact, Dovetail, 1.0 in., 2.56x2.56 x 1.11 in.
IMPERIAL
In Stock
$222.00
RS65Manual Rotation Stage, Aperture , 2.65 in. Diameter, 10° Fine, 6-32 and 1/4-20
IMPERIAL
In Stock
$582.00
GON65-UGoniometric Stage, Upper, ±10°, 2.56 x 2.56 x 1.18 in., 6-32 & 1/4-20
IMPERIAL
In Stock
$854.00
GON65-LGoniometric Stage, Lower, ±5°, 2.56 x 2.56 x 1.18 in., 6-32 & 1/4-20
IMPERIAL
5 Weeks
$854.00
SDS65-BK - Drawings & CAD
Additional CAD file downloads are not available for this product.
SDS65-BK - Drawings
Additional drawings are not available for this product.
