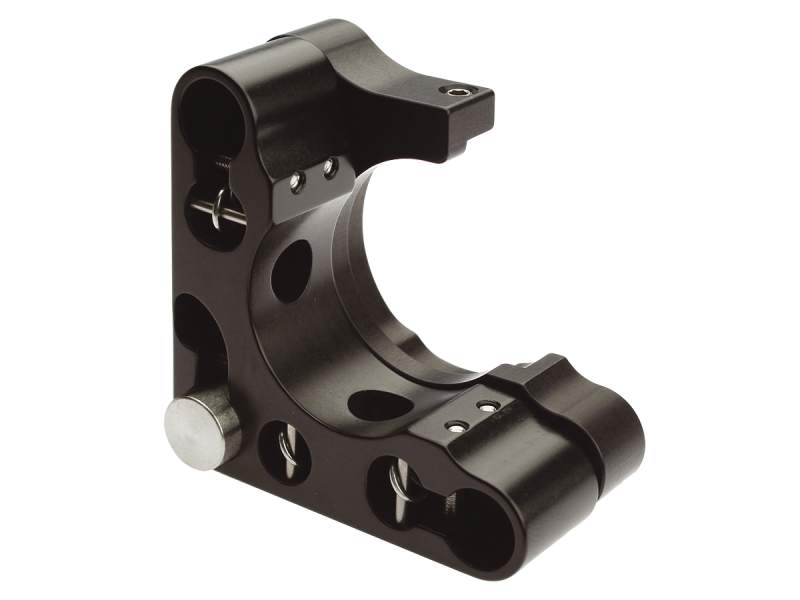

The U100-A-30 ULTIMA® Clear Quadrant Mirror Mount is designed to hold 30-mm diameter mirrors and does not include actuators. Thick front and rear plates and optimized, stiff springs improve the long-term stability and provide greater protection against vibrations. Hard carbide pads enable smooth, repeatable motion. A large array of optical mounting accessories is available for these mounts making ULTIMA a basic building block for many optical systems. Convenient clearance mounting holes on each of two sides are compatible with either 8-32 or M4 screws providing quicker, more precise, and more secure mounting. ULTIMA mounts can be mounted to posts for adjustable height or pedestal posts for a stable fixed height.
With the Clear Edge design, beams can be reflected from one mount to another at smaller incident angles (Φ) taking less space between the mounts (d). Clear Edge Mounts are also ideal for compensating for pulse dispersion effects through multiple reflections on Chirped Mirrors.
The ULTIMA's industry-standard clamp design allows many different types of actuators to be used to adjust the mirror position to meet the requirements for any application. Actuators can be replaced with ease by simply loosening two screws to allow the actuator to gently slide into and out of the mount. ULTIMA mounts are compatible not only with standard knob and hex-key adjustment screws, but also with micrometers and motorized actuators. See our Recommended Compatible Actuators in the Accessories section below.
ULTIMA mounts have extra thick frames for optimal stiffness and exceptional stability. The additional stiffness lowers deflection during adjustment, allowing fast and easy alignment.
| Compare | Description | Compatibility | Drawings, CAD & Specs | Avail. | Price | |||
|---|---|---|---|---|---|---|---|---|
 |
BDK-1 Ball Driver Allen Wrench Set, Includes 9 Ball drivers | IMPERIAL |
In Stock
|
$39.00 |
|
|||
 |
SK-TA Thread Adaptor Set, English | UNIVERSAL |
In Stock
|
$330.00 |
|
|||
 |
BB-M Optical Beam Block, Tool Holder, Magnetic-Base, Medium | UNIVERSAL |
In Stock
|
$36.00 |
|
|||
 |
SK-25A Black Oxide Screw Kit, 1/4-20, Assortment, Qty 261 | UNIVERSAL |
In Stock
|
$74.00 |
|
|||
 |
AW-1 Adaptor Washers, 1/4-20 (M6) to 8-32 (M4), Qty 10 | UNIVERSAL |
In Stock
|
$20.00 |
|
| Compare | Description | Compatibility | Drawings, CAD & Specs | Avail. | Price | |||
|---|---|---|---|---|---|---|---|---|
 |
U200-A Mirror Mount, ULTIMA®, Clear Edge, 2.0 in., No Actuators | UNIVERSAL |
In Stock
|
$188.00 |
|
|||
 |
U100-A Mirror Mount, ULTIMA®, Clear Edge, 1.0 in., No Actuators | UNIVERSAL |
In Stock
|
$123.00 |
|
|||
 |
U300-A Mirror Mount, ULTIMA®, Clear Edge, 3.0 in., No Actuators | UNIVERSAL |
In Stock
|
$250.00 |
|
|||
 |
U50-A Mirror Mount, ULTIMA®, Clear Edge, 0.5 in., (3) 80-TPI Allen-Keys | UNIVERSAL |
In Stock
|
$116.00 |
|
| Compare | Description | Compatibility | Drawings, CAD & Specs | Avail. | Price | |||
|---|---|---|---|---|---|---|---|---|
 |
TRA12PPD Motorized Actuator, Miniature, 12 mm Travel, Stepper, 25-pin D-Sub | UNIVERSAL |
In Stock
|
$1,065.00 |
|
|||
 |
AJS100-0.5K-NL Adjustment Screw, 100 TPI, 12.7 mm Travel, Large Knob | UNIVERSAL |
In Stock
|
$32.00 |
|
|||
 |
KD.75 Large Adjustment Knob, 2.0 mm Hex Key, Silver | UNIVERSAL |
In Stock
|
$10.70 |
|
|||
 |
AJS100-0.5H Hex Adjustment Screw, 100 TPI, 12.7 mm Travel, End Lock | UNIVERSAL |
In Stock
|
$39.00 |
|
|||
| |
TRA12CC Motorized Actuator, Miniature, 12 mm Travel, DC Servo motor | UNIVERSAL |
In Stock
|
$1,065.00 |
|
|||
 |
AJS100-0.5K Adjustment Screw, 100 TPI, 12.7 mm Travel, Large Knob, Side Lock | UNIVERSAL |
In Stock
|
$39.00 |
|
|||
 |
AJS100-0.5H-NL Hex Adjustment Screw, 100 TPI, 12.7 mm Travel | UNIVERSAL |
In Stock
|
$31.00 |
|
