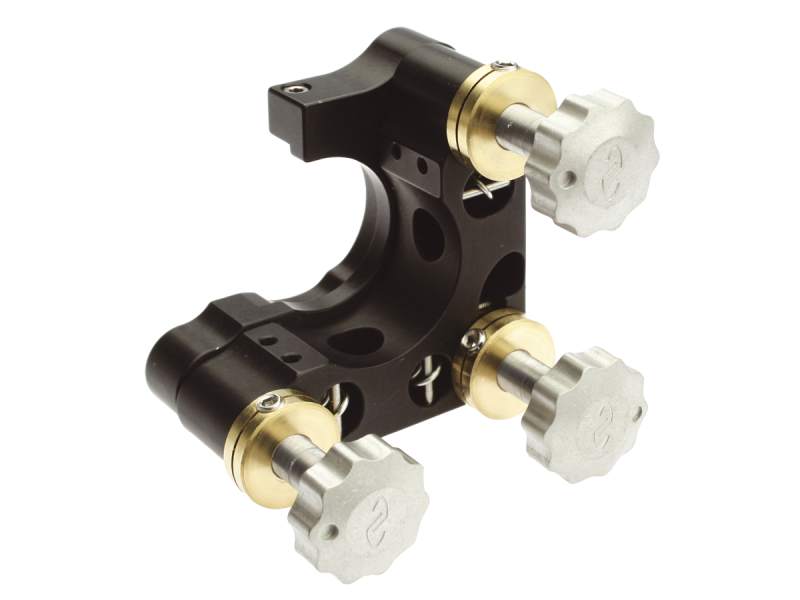

The U100-A-LH-3K ULTIMA® Clear Quadrant Left Handed Mirror Mount offers unsurpassed functionality. This optical mount for 1 inch (25.4 mm) diameter optics includes three 100 TPI locking actuators with knob providing ±7° of tip/tilt adjustment. Thick front and rear plates and optimized, stiff springs improve the long-term stability and provide greater protection against vibrations. Hard carbide pads enable smooth, repeatable motion. A large array of optical mounting accessories is available for these mounts making ULTIMA a basic building block for many optical systems. Translation of the optic is accomplished by turning all three actuators. Convenient clearance mounting holes on each of two sides are compatible with either 8-32 or M4 screws providing quicker, more precise, and more secure mounting. ULTIMA mounts can be mounted to posts for adjustable height or pedestal posts for a stable fixed height.
With the Clear Edge design, beams can be reflected from one mount to another at smaller incident angles (Φ) taking less space between the mounts (d). Clear Edge Mounts are also ideal for compensating for pulse dispersion effects through multiple reflections on Chirped Mirrors.
ULTIMA Clear Edge Performance Mirror Mounts feature a Flexure Lock built with an AJS bushing in select models. Flexure Locks exert a tangential force on the screw to prevent rotation and prevent unintended adjustment.
The ULTIMA's industry-standard clamp design allows many different types of actuators to be used to adjust the mirror position to meet the requirements for any application. Actuators can be replaced with ease by simply loosening two screws to allow the actuator to gently slide into and out of the mount. ULTIMA mounts are compatible not only with standard knob and hex-key adjustment screws, but also with micrometers and motorized actuators. See our Recommended Compatible Actuators in the Accessories section below.
Select models are available in both right- and left-handed versions: U100-A2K and U100-A-LH-2K, U100-A3K and U100-A-LH-3K. They are essentially mirror images of each other to provide flexibility and convenience in optical system setups.
ULTIMA mounts have extra thick frames for optimal stiffness and exceptional stability. The additional stiffness lowers deflection during adjustment, allowing fast and easy alignment.
| Compare | Description | Compatibility | Drawings, CAD & Specs | Avail. | Price | |||
|---|---|---|---|---|---|---|---|---|
 |
10D620AL.2 UV Aluminum Mirror, Economy, Borofloat, 25.4 mm, λ/10, 250-600 nm | UNIVERSAL |
In Stock
|
$48.00 |
|
|||
 |
SM-13 Vernier Micrometer, 13 mm Travel, 9 lb. Load Capacity, 50.8 TPI | UNIVERSAL |
In Stock
|
$103.00 |
|
|||
 |
U100-ACG-2K-NL Optical Mount, Clear Edge, Corner, ULTIMA®, 1.0 in., 2 Knob Adjustment | UNIVERSAL |
In Stock
|
$181.00 |
|
|||
 |
U200-A3K Mirror Mount, ULTIMA®, Clear Edge, 2.0 in., 3 Locking Knobs | UNIVERSAL |
In Stock
|
$280.00 |
|
|||
 |
U100-A3K Mirror Mount, ULTIMA®, Clear Edge, 1.0 in., 3 Locking Knobs | UNIVERSAL |
In Stock
|
$181.00 |
|
| Compare | Description | Compatibility | Drawings, CAD & Specs | Avail. | Price | |||
|---|---|---|---|---|---|---|---|---|
 |
HVM-1 Kinematic Mirror Mount, Vertical Drive, 1.0 in., (2) 80-TPI Knob Adjusters | UNIVERSAL |
|
$196.00 |
|
|||
| |
U100-A3K Mirror Mount, ULTIMA®, Clear Edge, 1.0 in., 3 Locking Knobs | UNIVERSAL |
In Stock
|
$181.00 |
|
|||
 |
U100-A-LH Mirror Mount, ULTIMA®, Clear Edge, 1.0 in., No Actuators, Left-Handed | UNIVERSAL |
In Stock
|
$123.00 |
|
|||
 |
U100-A-LH-2K Mirror Mount, ULTIMA®, Clear Edge, 1.0 in., 2 Locking Knobs, Left-Handed | UNIVERSAL |
In Stock
|
$147.00 |
|
|||
 |
U100-A-LH-3H Mirror Mount, ULTIMA®, Clear Edge, 1.0 in., 3 Locking Allen-Keys, Left-Handed | UNIVERSAL |
2 Weeks
|
$181.00 |
|
| Compare | Description | Compatibility | Drawings, CAD & Specs | Avail. | Price | |||
|---|---|---|---|---|---|---|---|---|
 |
AJS100-0.5K Adjustment Screw, 100 TPI, 12.7 mm Travel, Large Knob, Side Lock | UNIVERSAL |
In Stock
|
$39.00 |
|
|||
 |
KD.75 Large Adjustment Knob, 2.0 mm Hex Key, Silver | UNIVERSAL |
In Stock
|
$10.70 |
|
|||
 |
AJS100-0.5H Hex Adjustment Screw, 100 TPI, 12.7 mm Travel, End Lock | UNIVERSAL |
In Stock
|
$39.00 |
|
|||
 |
AJS100-0.5H-NL Hex Adjustment Screw, 100 TPI, 12.7 mm Travel | UNIVERSAL |
In Stock
|
$31.00 |
|
|||
 |
AJS100-0.5K-NL Adjustment Screw, 100 TPI, 12.7 mm Travel, Large Knob | UNIVERSAL |
In Stock
|
$32.00 |
|
|||
 |
TRA12CC Motorized Actuator, Miniature, 12 mm Travel, DC Servo motor | UNIVERSAL |
In Stock
|
$1,065.00 |
|
|||
| |
TRA12PPD Motorized Actuator, Miniature, 12 mm Travel, Stepper, 25-pin D-Sub | UNIVERSAL |
In Stock
|
$1,065.00 |
|
| Compare | Description | Compatibility | Drawings, CAD & Specs | Avail. | Price | |||
|---|---|---|---|---|---|---|---|---|
 |
UPA1-.75 Mirror Mount Adapter, 25.4 mm to 19.05 mm Diameter, For ULTIMA® | UNIVERSAL |
In Stock
|
$42.00 |
|
|||
 |
UPA1-.5 Mirror Mount Adapter, 25.4 mm to 12.7 mm Diameter, For ULTIMA® | UNIVERSAL |
In Stock
|
$30.00 |
|
|||
 |
UPA-RM1A Rotation Mount, Polarizer, 1 inch, For U100-A Mount | UNIVERSAL |
In Stock
|
$74.00 |
|
|||
 |
UPATO Thin Optics Adapter, 1.0 in. (25.4 mm) Diameter | UNIVERSAL |
In Stock
|
$49.00 |
|
|||
 |
UPA-OM Objective Lens Adapter, RMS Thread, 1 inch Mount | UNIVERSAL |
In Stock
|
$49.00 |
|
|||
 |
UPA-CH1 Cube Beamsplitter Holder, 1.0 in. Cubes, For 1.0 in. Mirror Mounts | UNIVERSAL |
In Stock
|
$104.00 |
|
|||
 |
UPA-45D1 45 Degree Mirror Holder, 25.4 mm Diameter | UNIVERSAL |
In Stock
|
$58.00 |
|
