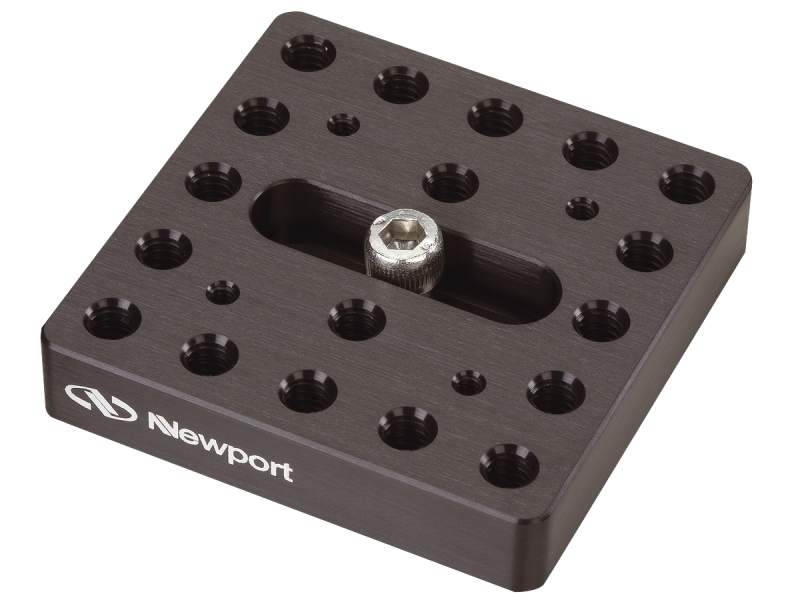

The UP-1A Universal Mounting Plate utilizes our patented rotating slot concept to provide mounting holes nearly anywhere, and in any orientation, on your optical table. The positioning flexibility of this plate makes it much simpler to mount components and stages off the table hole pattern. This plate is also useful to adapt metric components to an English table - or vice versa. The plate is bolted to the table with a standard 1/4-20 cap head screw.
Hole Pattern
Ample 1/4-20 threaded holes are available to mount a variety of components to the plate. 6-32 threaded holes are useful for mounting our 1.57 x 1.57 in. (40 x 40 mm) size stages..
| Compare | Description | Compatibility | Drawings, CAD & Specs | Avail. | Price | |||
|---|---|---|---|---|---|---|---|---|
 |
GON65-U Goniometric Stage, Upper, ±10°, 2.56 x 2.56 x 1.18 in., 6-32 & 1/4-20 | IMPERIAL |
5 Weeks
|
$854.00 |
|
|||
 |
GON65-L Goniometric Stage, Lower, ±5°, 2.56 x 2.56 x 1.18 in., 6-32 & 1/4-20 | IMPERIAL |
5 Weeks
|
$854.00 |
|
|||
 |
CR-1 Construction Rail, 1 x 5 in., 1/4-20 | IMPERIAL |
In Stock
|
$29.00 |
|
|||
 |
CB-2 Construction Plates, 2.5 x 3.5 in., 2 pieces, 1/4-20 | IMPERIAL |
In Stock
|
$137.00 |
|
|||
 |
SK-25A Black Oxide Screw Kit, 1/4-20, Assortment, Qty 261 | UNIVERSAL |
In Stock
|
$74.00 |
|
| Compare | Description | Compatibility | Drawings, CAD & Specs | Avail. | Price | |||
|---|---|---|---|---|---|---|---|---|
 |
MRP3-1 Modular Riser Plates, 3 in. x 3 in. x 1 in., 1/4-20 Thread | IMPERIAL |
In Stock
|
$129.00 |
|
|||
| |
CB-2 Construction Plates, 2.5 x 3.5 in., 2 pieces, 1/4-20 | IMPERIAL |
In Stock
|
$137.00 |
|
|||
 |
CR-1-M Construction Rail, 25.4 x 127 mm, M6 | METRIC |
In Stock
|
$29.00 |
|
|||
 |
MRP4-1 Modular Riser Plates, 4 in. x 4 in. x 1 in., 1/4-20 Thread | IMPERIAL |
In Stock
|
$129.00 |
|
|||
 |
460P-90BK 90 Degree Angle Bracket, 460P Series | IMPERIAL |
In Stock
|
$147.00 |
|
| Compare | Description | Compatibility | Drawings, CAD & Specs | Avail. | Price | |||
|---|---|---|---|---|---|---|---|---|
 |
SDS65 Manual Linear Stage, 0.98 in. Travel, Ball Bearings, 1/4-20 Threads | IMPERIAL |
2 Weeks
|
$803.00 |
|
|||
| |
GON65-L Goniometric Stage, Lower, ±5°, 2.56 x 2.56 x 1.18 in., 6-32 & 1/4-20 | IMPERIAL |
5 Weeks
|
$854.00 |
|
|||
 |
RSP-1T Optic Rotation Mount, 25.4 mm, Fine Adjust Knob, 8-32 and M4 | UNIVERSAL |
In Stock
|
$291.00 |
|
|||
 |
488 Rotary Stage, Height-Adjustable, 1 in. Vertical Travel, 8-32 and 1/4-20 | IMPERIAL |
In Stock
|
$606.00 |
|
|||
 |
RS65 Manual Rotation Stage, Aperture , 2.65 in. Diameter, 10° Fine, 6-32 and 1/4-20 | IMPERIAL |
In Stock
|
$582.00 |
|
