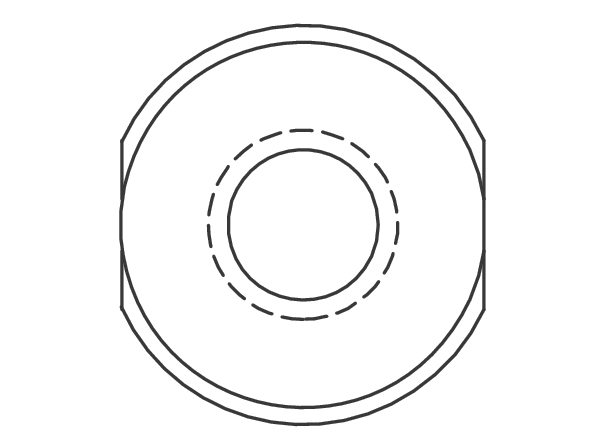

Keyed guide rods allow any of Newport's A-Line optic holders to mount with the same orientation along the rod. Two flat and parallel surfaces, machined along the length of the rod, key the A-Line mounts to the same rotational orientation.
| Compare | Model | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|
LH-GR-0.5 Keyed Guide Rod, 6 mm Diameter, 4-40 Thd, 0.5 in. Length, A-LINE |
In Stock
|
$10.70 |
|
|||
|
|
LH-GR-1 Keyed Guide Rod, 6 mm Diameter, 4-40 Thd, 1 in. Length, A-LINE |
In Stock
|
$11.90 |
|
|||
|
LH-GR-2 Keyed Guide Rod, 6 mm Diameter, 4-40 Thd, 2 in. Length, A-LINE |
In Stock
|
$13.60 |
|
|||
|
LH-GR-3 Keyed Guide Rod, 6 mm Diameter, 4-40 Thd, 3 in. Length, A-LINE |
In Stock
|
$14.40 |
|
|||
|
LH-GR-4 Keyed Guide Rod, 6 mm Diameter, 4-40 Thd, 4 in. Length, A-LINE |
In Stock
|
$17.40 |
|
|||
|
LH-GR-6 Keyed Guide Rod, 6 mm Diameter, 4-40 Thd, 6 in. Length, A-LINE |
In Stock
|
$20.00 |
|

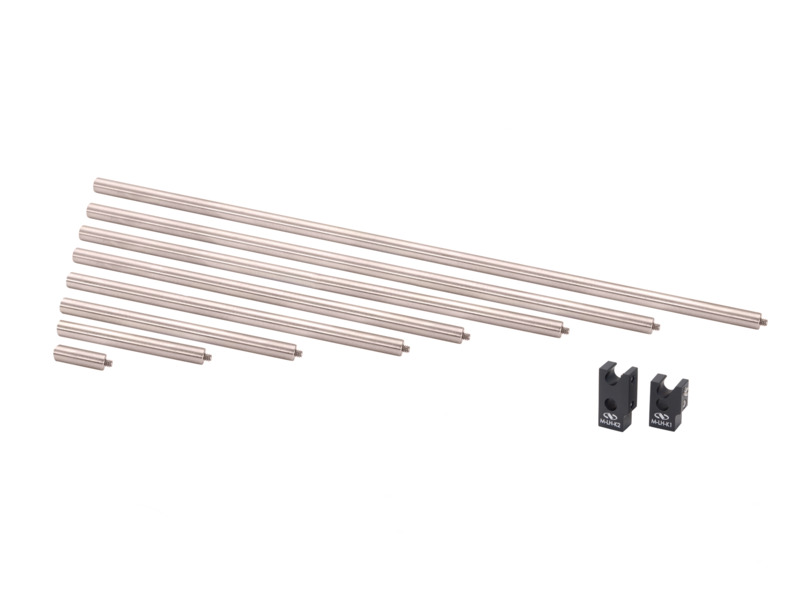

The A-Line guide rods feature two flat, parallel surfaces machined along the length of the rod. This keyed guide provides instant alignment for A-Line mounts and can hold multiple mounts.
A-Line™ family of self-aligning mounts are designed to make mounting, aligning and focusing lens groups fast and easy. How? The front of each lens mount has a special 6 mm alignment hole, which can be used with GR Series Guide Rods such that several A-Line lens holders can be mounted together in a self-aligned row. This overview video demonstrates the easy and fast aligning process using the A-Line lens mounts.
The Insertable link blocks in the A-Line family of products allow the user to align the optical centers of 1-in. and 2-in. A-Line lens mounts. The slotted guide rod hole can also be used as an insertable post mount for guide-rod-mounted group of A-line lens mounts.
