Aspherical achromatic lenses consist of two cemented elements which provide superior color correction and the smallest RMS spot size closest to the diffraction limit. The second element of the achromatic lens is aspherical to reduce wavefront errors arising from standard spherical achromats.
| Compare | Model | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|
APAC10 Aspherical Lenses, Achromatic, 9.00 mm Diameter, 12.00 mm EFL |
In Stock
|
$173.00 |
|
|||
|
|
APAC11 Aspherical Lenses, Achromatic, 9.00 mm Diameter, 18.00 mm EFL |
In Stock
|
$173.00 |
|
|||
|
|
APAC12 Aspherical Lenses, Achromatic, 12.50 mm Diameter, 14.00 mm EFL |
|
$185.00 |
|
|||
|
|
APAC13 Aspherical Lenses, Achromatic, 12.50 mm Diameter, 20.00 mm EFL |
In Stock
|
$185.00 |
|
|||
|
|
APAC14 Aspherical Lenses, Achromatic, 12.50 mm Diameter, 25.00 mm EFL |
In Stock
|
$185.00 |
|
|||
|
APAC15 Aspherical Lenses, Achromatic, 25.00 mm Diameter, 30.00 mm EFL |
|
$199.00 |
|
|||
|
|
APAC16 Aspherical Lenses, Achromatic, 25.00 mm Diameter, 35.00 mm EFL |
In Stock
|
$199.00 |
|
|||
|
|
APAC17 Aspherical Lenses, Achromatic, 25.00 mm Diameter, 40.00 mm EFL |
In Stock
|
$199.00 |
|
Aspherical achromatic lenses consist of two cemented elements, a positive low-index crown glass lens element cemented to a negative high-index flint glass lens element. These elements are carefully selected to cancel chromatic aberration at two well separated wavelengths; which provide superior color correction and the smallest RMS spot size closest to the diffraction limit. The second element of the achromatic lens is aspherical to reduce wavefront errors arising from standard spherical achromats. These aspherical achromatic lenses are the ideal choice for imaging, fiber coupling, scanning, and other applications that use a broadband laser or white light sources.

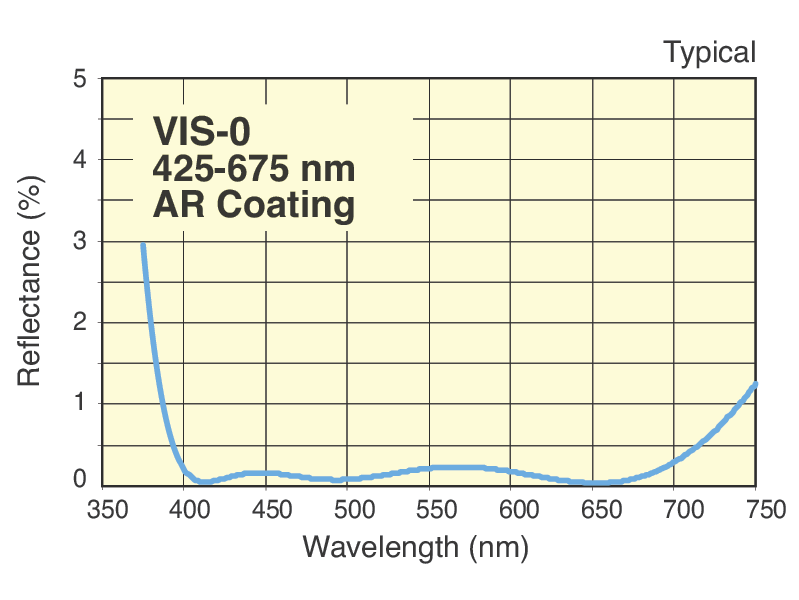

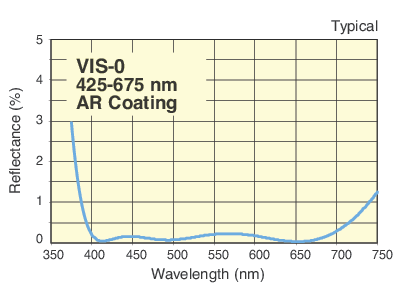

Achromatic aspheres utilize a broadband visible coating on the front side to provide optimal transmission. The antireflection coating is applied to the front surface, whereas the back surface has a molded aspheric polymer cap with a protective seal.
These lenses can be used within the wavelength regime of 400-2000nm. However, the color and spherical aberration correction is only optimized over the wavelength regime of 400-700nm. The Aspherical achromatic lenses not only have superior color correction compared to standard achromats, but also have very similar spherical aberration corrections to those of machined aspheres.
We offer a full range of optical lens mounts to meet various experimental requirements. Below lists the recommended mounts for spherical lenses of standard sizes. Please see our Lens Mount Guide for additional information.
Note: besides the diameter, please check the Edge Thickness (Te) specification of the lens and the lens mount to ensure compatibility before purchasing.
| Lens Diameter |  A-Line™ Lens Mounts |
 LT Series Lens Tubes |
 LP Series Lens Positioners |
 Optics Cage Plus Series |
|---|---|---|---|---|
| 76.2 mm | (
$69.00
In Stock
Product Series Overview
$69.00
In Stock
Product Series Overview
|
N/A | N/A | N/A |
| 50.8 mm | (
$36.00
In Stock
Product Series Overview
$36.00
In Stock
Product Series Overview
$42.00
In Stock
Product Series Overview
|
$36.00
In Stock
Product Series Overview
Product Series Overview
Product Series Overview
$47.00
In Stock
Product Series Overview
|
$1,088.00
In Stock
Product Series Overview
$702.00
In Stock
Product Series Overview
$785.00
In Stock
Product Series Overview
|
N/A |
| 38.1 mm | (
$34.00
2 Weeks
Product Series Overview
$34.00
In Stock
Product Series Overview
|
LT20 lens tube with
$31.00
In Stock
Product Series Overview
|
LP-2 lens positioner with
$97.00
In Stock
Product Series Overview
|
N/A |
| 25.4 mm | (
$20.00
In Stock
Product Series Overview
$20.00
In Stock
Product Series Overview
$29.00
In Stock
Product Series Overview
Product Series Overview
$230.00
In Stock
Product Series Overview
$258.00
In Stock
Product Series Overview
|
$20.00
In Stock
Product Series Overview
Product Series Overview
Product Series Overview
Product Series Overview
|
$749.00
5 Weeks
Product Series Overview
$600.00
In Stock
Product Series Overview
$722.00
In Stock
Product Series Overview
|
$38.00
In Stock
Product Series Overview
$24.00
In Stock
Product Series Overview
$56.00
In Stock
Product Series Overview
Model: OC1-LH1-XYAdjustable Lens Mount, Insertable, XY Fine, 25.4 mm Diameter, 1 in. Optics Cage Plus
$243.00
In Stock
Product Series Overview
Model: OC1-LH1-XYAAdjustable Lens Mount, Insertable, XYθXθY Fine, 25.4 mm Diameter, 1 in. Optics Cage Plus
$285.00
In Stock
Product Series Overview
Model: OC1-LH1-XYCAdjustable Lens Mount, Insertable, XY Coarse, 25.4 mm Diameter, 1 in. Optics Cage Plus
$100.00
In Stock
Product Series Overview
Model: OC1-LH1-XYZAdjustable Lens Mount, Insertable, XYZ Fine, 25.4 mm Diameter, 1 in. Optics Cage Plus
$433.00
In Stock
Product Series Overview
|
| 12.7 mm | (
$20.00
In Stock
Product Series Overview
$20.00
In Stock
Product Series Overview
$26.00
In Stock
Product Series Overview
|
$19.40
In Stock
Product Series Overview
$21.00
In Stock
Product Series Overview
|
$749.00
5 Weeks
Product Series Overview
$456.00
In Stock
Product Series Overview
$544.00
In Stock
Product Series Overview
|
N/A |
| 6.35 mm |
$20.00
1 Week
Product Series Overview
$23.00
In Stock
Product Series Overview
|
LT05 lens tube with
$23.00
In Stock
Product Series Overview
|
LP-05 lens positioner with
$43.00
In Stock
Product Series Overview
|
N/A |
For non-standard sizes not listed above, check out our variable size lens mounts.
