Our 750-1550 nm achromatic lenses IR-NIR antireflection coated, and are are optimized for infinite conjugates. The offer excellent broadband IR performance suitable for numerous applications including imaging, microscopy, and spectroscopy.
| Compare | Model | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|
PAC01AR.16 Achromatic Lens, NIR, 12.0 mm Diameter, 18.0 mm EFL, 750-1550 nm |
In Stock
|
$122.00 |
|
|||
|
|
PAC02AR.16 Achromatic Lens, NIR, 12.0 mm Diameter, 20.0 mm EFL, 750-1550 nm |
1 Week
|
$122.00 |
|
|||
|
|
PAC03AR.16 Achromatic Lens, NIR, 12.0 mm Diameter, 25.0 mm EFL, 750-1550 nm |
1 Week
|
$122.00 |
|
|||
|
|
PAC04AR.16 Achromatic Lens, NIR, 12.0 mm Diameter, 30.0 mm EFL, 750-1550 nm |
In Stock
|
$122.00 |
|
|||
|
|
PAC05AR.16 Achromatic Lens, NIR, 12.0 mm Diameter, 35.0 mm EFL, 750-1550 nm |
In Stock
|
$122.00 |
|
|||
|
|
PAC06AR.16 Achromatic Lens, NIR, 12.0 mm Diameter, 40.0 mm EFL, 750-1550 nm |
In Stock
|
$122.00 |
|
|||
|
|
PAC07AR.16 Achromatic Lens, NIR, 12.0 mm Diameter, 50.0 mm EFL, 750-1550 nm |
In Stock
|
$122.00 |
|
|||
|
|
PAC09AR.16 Achromatic Lens, NIR, 12.0 mm Diameter, 75.0 mm EFL, 750-1550 nm |
In Stock
|
$122.00 |
|
An Achromat, or Achromatic lens, is usually made up of multiple optical elements, which can be air-spaced or cemented together. These typically alternate a positive lens of low index material, such as crown glass, and a negative lens of high index material, such as flint glass. The elements are selected and optimized so that dispersion in the positive element is corrected by the negative element, resulting in minimized chromatic aberration at two well-separated wavelengths. Achromats offer a nearly constant focal length across the visible spectrum, providing superior off-axis performance. Doublet lenses offer users many more design options than singlet lenses, which allows for superior performance in visual imaging and laser beam manipulation applications. Our lenses are computer designed, minimizing aberrations and providing a smaller focused spot size. They are offered with multi-layer or single-layer AR coatings. Standard diameters and focal lengths may be interchanged with our singlet lenses. Further, achromats are available in a wide variety of configurations, including positive, negative, triplet, and aspherized. These lenses are produced as doublets or triplets (three elements). The collimated beam should enter or depart from the surface (R1 in drawing) with higher curvature (smaller radius) for optimized performance.

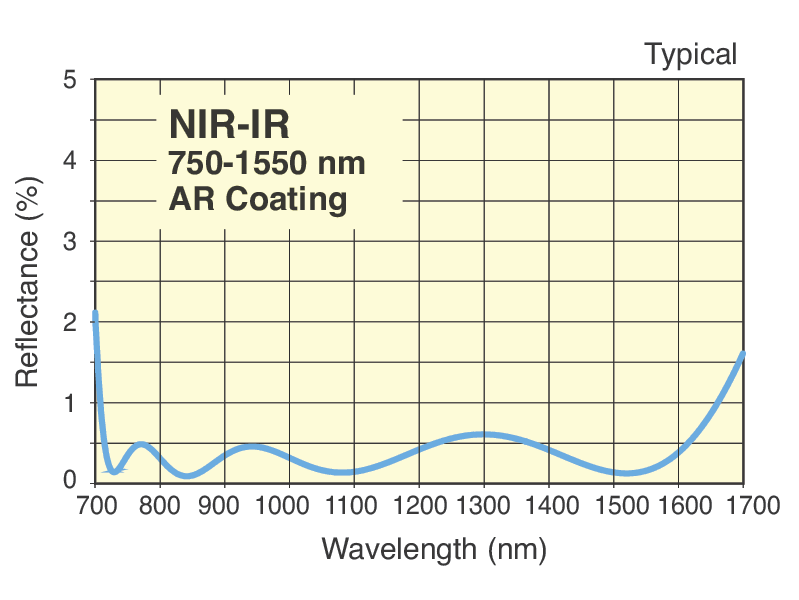

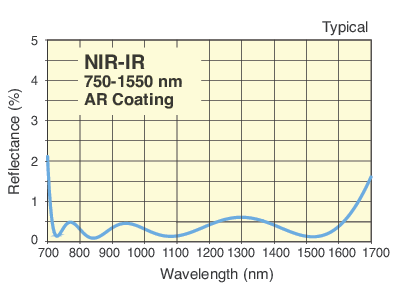

Our NIR to IR antireflection coating has the following specifications: Rabs<1.5% @ 750-800 nm, Rabs<1.0% @ 800-1550 nm, and Ravg<0.7% @ 750-1550 nm. Common applications for these near IR achromatic lenses include Imaging, Microscopy, and various spectroscopic methods in the near IR spectrum.
Our NIR Achromatic Lenses are computer optimized at infinite conjugate ratios for applications in the near-IR spectrum, producing the smallest spot size possible for polychromatic light sources between 750 to 1100 nm. Spherical and chromatic aberrations are minimized to provide superior performance. For most applications, diffraction-limited spot size can be achieved when using with monochromatic light sources of wavelength up to 2 µm.
We offer a full range of optical lens mounts to meet various experimental requirements. Below lists the recommended mounts for spherical lenses of standard sizes. Please see our Lens Mount Guide for additional information.
Note: besides the diameter, please check the Edge Thickness (Te) specification of the lens and the lens mount to ensure compatibility before purchasing.
| Lens Diameter |  A-Line™ Lens Mounts |
 LT Series Lens Tubes |
 LP Series Lens Positioners |
 Optics Cage Plus Series |
|---|---|---|---|---|
| 76.2 mm | (
$69.00
In Stock
Product Series Overview
$69.00
In Stock
Product Series Overview
|
N/A | N/A | N/A |
| 50.8 mm | (
$36.00
In Stock
Product Series Overview
$36.00
In Stock
Product Series Overview
$42.00
In Stock
Product Series Overview
|
$36.00
In Stock
Product Series Overview
Product Series Overview
Product Series Overview
$47.00
In Stock
Product Series Overview
|
$1,088.00
In Stock
Product Series Overview
$702.00
In Stock
Product Series Overview
$785.00
In Stock
Product Series Overview
|
N/A |
| 38.1 mm | (
$34.00
4 Weeks
Product Series Overview
$34.00
In Stock
Product Series Overview
|
LT20 lens tube with
$31.00
In Stock
Product Series Overview
|
LP-2 lens positioner with
$97.00
In Stock
Product Series Overview
|
N/A |
| 25.4 mm | (
$20.00
In Stock
Product Series Overview
$20.00
In Stock
Product Series Overview
$29.00
In Stock
Product Series Overview
Product Series Overview
$230.00
In Stock
Product Series Overview
$258.00
In Stock
Product Series Overview
|
$20.00
In Stock
Product Series Overview
Product Series Overview
Product Series Overview
Product Series Overview
|
$749.00
4 Weeks
Product Series Overview
$600.00
In Stock
Product Series Overview
$722.00
In Stock
Product Series Overview
|
$38.00
In Stock
Product Series Overview
$24.00
In Stock
Product Series Overview
$56.00
In Stock
Product Series Overview
Model: OC1-LH1-XYAdjustable Lens Mount, Insertable, XY Fine, 25.4 mm Diameter, 1 in. Optics Cage Plus
$243.00
In Stock
Product Series Overview
Model: OC1-LH1-XYAAdjustable Lens Mount, Insertable, XYθXθY Fine, 25.4 mm Diameter, 1 in. Optics Cage Plus
$285.00
In Stock
Product Series Overview
Model: OC1-LH1-XYCAdjustable Lens Mount, Insertable, XY Coarse, 25.4 mm Diameter, 1 in. Optics Cage Plus
$100.00
In Stock
Product Series Overview
Model: OC1-LH1-XYZAdjustable Lens Mount, Insertable, XYZ Fine, 25.4 mm Diameter, 1 in. Optics Cage Plus
$433.00
In Stock
Product Series Overview
|
| 12.7 mm | (
$20.00
In Stock
Product Series Overview
$20.00
In Stock
Product Series Overview
$26.00
In Stock
Product Series Overview
|
$19.40
In Stock
Product Series Overview
$21.00
In Stock
Product Series Overview
|
$749.00
4 Weeks
Product Series Overview
$456.00
In Stock
Product Series Overview
$544.00
In Stock
Product Series Overview
|
N/A |
| 6.35 mm |
$20.00
1 Week
Product Series Overview
$23.00
In Stock
Product Series Overview
|
LT05 lens tube with
$23.00
In Stock
Product Series Overview
|
LP-05 lens positioner with
$43.00
In Stock
Product Series Overview
|
N/A |
For non-standard sizes not listed above, check out our variable size lens mounts.
