Compact Fast Travel Lab Jacks
Overview
These fast travel lab jacks have dual adjustment knobs for a large travel range in a compact labjack size.
- Fast height adjustment provided by crank handle
- Dual adjustment knobs
- Compact size with 40 mm square platform
- Up to 120 mm vertical travel and 500 N load capacity
Products
Show Filters:
Showing 5 of 5 total products
Compatibility:
| Compare | Model | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|

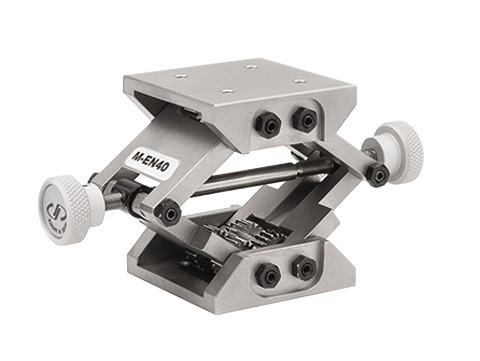

M-EN40 Lab Jack, Fast Travel, 42 mm Travel, 40 x 40 mm, 10 N Load, M3 |
In Stock
|
$1,073.00 |
|
|||
|
M-EN60 Lab Jack, Fast Travel, 70 mm Travel, 60 x 60 mm, 20 N Load, M3 |
In Stock
|
$1,282.00 |
|
|||
|
M-EN86 Lab Jack, Fast Travel, 105 mm Travel, 86 x 86 mm, 60 N, M3 and M4 |
In Stock
|
$1,412.00 |
|
|||
|
M-EL80 Lab Jack, Fast Travel, 60 mm Travel, 80 x 120 mm, 80 N Load, M4 |
In Stock
|
$1,001.00 |
|
|||
|

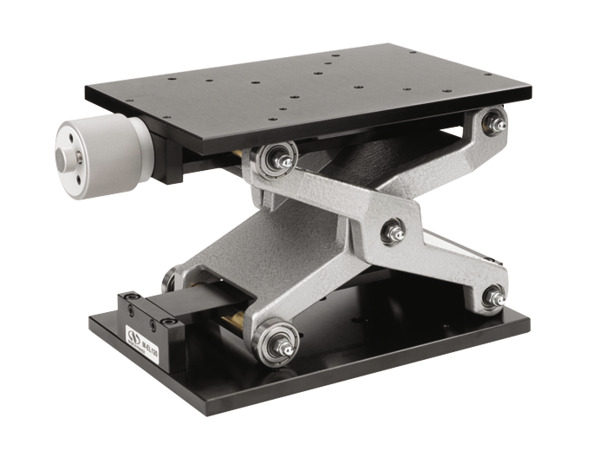

M-EL120 Lab Jack, Fast Travel, 120 mm Travel, 160 x 240 mm, 500 N, M5 and M6 |
In Stock
|
$1,787.00 |
|
Showing 1 to 5 of 5 entries
Specifications
| Models |
$1,073.00
In Stock
Product Series Overview
|
$1,282.00
In Stock
Product Series Overview
|
$1,412.00
In Stock
Product Series Overview
|
$1,001.00
In Stock
Product Series Overview
|
$1,787.00
In Stock
Product Series Overview
|
|---|---|---|---|---|---|
| Load Capacity | 10 N | 20 N | 60 N | 80 N | 500 N |
| Travel Range | 42 mm | 70 mm | 105 mm | 60 mm | 120 mm |
| Minimum Height | 25 mm | 45 mm | 65 mm | 53 mm | 100 mm |
| Maximum Height | 67 mm | 115 mm | 170 mm | 113 mm | 220 mm |
| Platform Size | 40 x 40 mm | 60 x 60 mm | 86 x 86 mm | 80 x 120 mm | 160 x 240 mm |
| Thread Type | M3 | M3 | M3 and M4 | M4 | M5 and M6 |
| Material | Alloy Steel | Alloy Steel | Alloy Steel | Alloy Steel | Alloy Steel |
| Bearings | Bushing | Bushing | Bushing | Bushing | Bushing |
| Drive Screw Pitch | 0.7 mm | 1.0 mm | 1.25 mm | 1.0 mm | 1.5 mm |
| Sensitivity | 1.9 µm | 2.8 µm | 3.5 µm | 2.8 µm | 4.2 µm |
| Deflection Under Load | 0.005 mm/N | 0.005 mm/N | 0.005 mm/N | 0.01 mm/N | 0.01 mm/N |
| Parallelism | 5 mrad over travel range | 5 mrad over travel range | 5 mrad over travel range | 5 mrad over travel range | 5 mrad over travel range |
| Weight | 0.25 kg | 0.9 kg | 1.85 kg | 1.79 kg | 11.2 kg |
Showing 1 to 13 of 13 entries
Features
Precision Geared Mechanism for Additional Stability
The geared linkages on these lab jacks ensure controlled symmetrical movements which make the stage more stable over time.

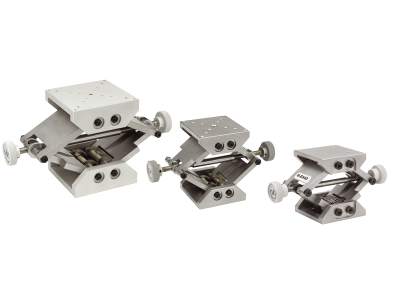

Vertical Adjustment From Either Side of Jack
The EN series lab jacks have adjustment knobs on both sides for better accessibility no matter what orientation it is mounted.
Ultra-High Velocity
