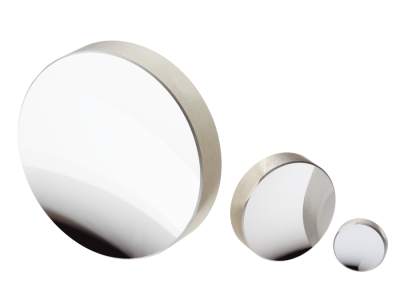

Concave mirrors are used for focusing, collecting, and imaging with no chromatic aberration. They can be used to manipulate laser beams or other broadband sources. 3λ/2 surface accuracy ensures excellent image quality and small focused spots.
| Compare | Model | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|
05DC100AL.2 |
In Stock
|
$153.00 |
|
|||
|
|
05DC100ER.1 |
In Stock
|
$143.00 |
|
|||
|
|
05DC100ER.2 |
In Stock
|
$180.00 |
|
|||
|
|
05DC200AL.2 |
|
$153.00 |
|
|||
|
|
05DC200ER.1 |
In Stock
|
$142.00 |
|
|||
|
|
05DC200ER.2 |
|
$180.00 |
|
|||
|
|
05DC25AL.2 |
In Stock
|
$175.00 |
|
|||
|
|
05DC25ER.1 |
|
$164.00 |
|
|||
|
|
05DC25ER.2 |
|
$230.00 |
|
|||
|
|
05DC500AL.2 |
In Stock
|
$160.00 |
|
Borofloat 33 is a high quality borosilicate glass that offers low thermal expansion and high thermal shock resistance. Its material properties and moderate cost make Borofloat 33 an ideal substrate for general purpose applications. For more information, please see our Optical Materials technical note.
Our AL.2 UV enhanced aluminum coating is a durable, broadband UV reflector with average reflectivity greater than 90% from 250 – 600 nm. The aluminum film is overcoated with UV transparent magnesium fluoride to prevent oxidation of the metal.
Our ER.1 enhanced aluminum coating may be used wherever a broadband visible and near infrared reflector is needed. A multilayer dielectric stack deposited over the aluminum film boosts reflectance and improves the durability of the coating. Average reflectivity is greater than 93% from 450-700 nm.
Our ER.2 protected silver coating is composed of a low emissivity silver film fully encapsulated by a multilayer dielectric stack to prevent oxidation. This coating has excellent broadband reflectivity in the IR, while maintaining very good performance in the visible and near IR. Average reflectivity is greater than 96% from 480 – 1100 nm and greater than 98.5% from 1.1 – 20 µm. This silver mirror is a favorite for Ultrafast scientists who want an inexpensive option.
