| Compare | Model | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|
FPH-C Compact Cable Clamp, FPH Series |
In Stock
|
$102.00 |
|
|||
|
FPH-CA3 Fiber Chuck, SMA Connectorized Fiber |
In Stock
|
$280.00 |
|
|||
|
FPH-CA4 Fiber Chuck, FC Connectorized Fiber |
In Stock
|
$289.00 |
|
|||
|
FPH-CA6 Fiber Chuck, ST Connectorized Fiber |
In Stock
|
$267.00 |
|
|||
|
FPH-CA8 Fiber Chuck, LC Connectorized Fiber | $267.00 |
|
||||
|
FPH-CA9 Fiber Chuck, SC Connectorized Fiber |
In Stock
|
$267.00 |
|
|||
|
FPH-DJ Fiber Chuck, Delrin-Jawed, 300-1000 micron Fiber |
In Stock
|
$122.00 |
|
|||
|
FPH-J Fiber Chuck, Teflon Lined, 125-250 micron Fiber |
1 Week
|
$122.00 |
|
|||
|
FPH-S Fiber Holder, 80–200 micron Fiber |
In Stock
|
$102.00 |
|
|||
|
FPH-S-.175 Optical Fiber Chuck, Photonic Crystal Fiber |
In Stock
|
$72.00 |
|
|||
|
|
FPH-S-2.5 Fiber Holder, 80–200 micron Fiber, Extended |
In Stock
|
$102.00 |
|
|||
|
FPH-SR Strain Relief, Bare Fiber, Delrin Jaws |
In Stock
|
$37.00 |
|

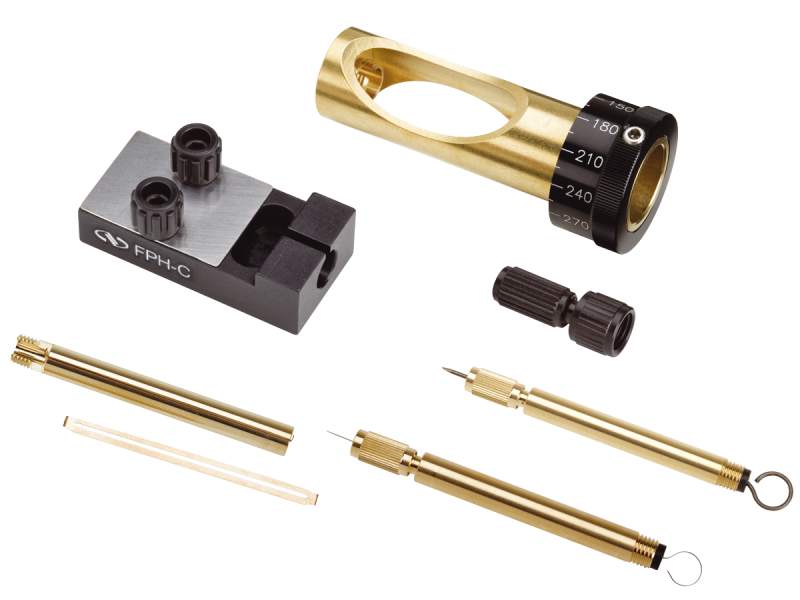

Fiber chucks in this series are made to easily attach and terminate bare optical fibers for mounting and coupling to optical systems. Models FPH-S and FPH-S-2.5 hold 80 to 200 µm diameter optical fibers using a unique, stress free spring-leaf assembly. FPH-J is a Teflon lined chuck for optical fibers 125 to 250 µm in diameter. Model FPH-DJ is a Delrin-Jawed chuck, suitable for larger fibers between 300 µm to 1 mm diameter.
Newport offers fiber holders for a variety of connectorized holder types. Models FPH-CA3, FPH-CA4, FPH-CA6, FPH-CA8, and FPH-CA9 are compatible with SMA, FC, ST, LC, and SC connectors, respectively.
A strain relief boot, model FPH-SR, is available to provide support between a bare fiber and the terminating chuck. Once connectorized, the FPH-C Cable Clamp is compatible with FPH Series chucks and holders. It slips over the end of the fiber holder to grip the cable and relieve any stress applied to the fiber by the weight of the cable.
