Oriel® offers a variety of fiber holders and mounts for optimum mounting of a Light Guide or Fiber to other instruments with the Oriel 1.5 inch flange such as a Monochromator or Spectrograph, Integrating Sphere, or Detector. If coupling to an Oriel component with a 2 inch or 3 inch series flange is required, a line of Flange Couplers and Adapters is available for mechanical compatibility.
| Compare | Model | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|
77357 Fiber Bundle Mount, Circular Bundle to 1.5 Inch Female Flange |
3 Weeks
|
$105.00 |
|
|||
|
77817 Fiber Bundle Mount, Circular Bundle to 1.5 Inch Male Flange | $145.00 |
|
||||
|
77802 Fiber Bundle Holder, Circular Bundle to 1.5 Inch Male Flange, XYZ Adjust | $355.00 |
|
||||
|
77358 Fiber Bundle Mount, Rectangular Bundle to 1.5 Inch Female Flange |
5 Weeks
|
$560.00 |
|
|||
|
77814 Fiber Bundle Holder, 11 mm, Optical Post Mounted |
4 Weeks
|
$170.00 |
|
|||
|
77848 Optical Fiber Holder, Single SMA, Optical Post Mounted |
In Stock
|
$105.00 |
|
|||
|
70456 Optical Fiber Holder, Single SMA, 1.5 Inch Series Female Flange |
4 Weeks
|
$685.00 |
|
For coupling a Rectangular or circular end fiber optic bundle to a 1.5 inch flanged component, these flanged fiber bundle mounts are useful. Adjustments of 0.5 inch (12.7 mm) along the optical axis is possible.

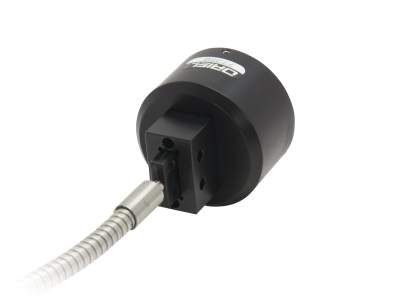

The 77358 can be coupled by itself onto the flange of a monochromator, or the included spacer tube can be used to attach the 77358 to the 77330 Focusing Lens Assembly for optimum light focusing onto the slit of a monochromator.
The 70456 has a 1.5 inch series female flange and connector for SMA terminated fibers.
The 77802 XYZ Fiber Positioner Mount has a 1.5 inch male flange and holds fiber bundles terminated with 11 mm circular ferrules. Adjustment in the X and Y directions of 0.063 inch (1.6 mm), perpendicular to the optical access is possible. Along the optical axis, 0.5 inch (12.7 mm) adjustment is possible. Adjustment in three axes allows the bundle to be positioned in the most favorable spot for maximizing collected output light from a focused source.
The 77848 Optical Post Mount Fiber Holder is for fibers terminated with an SMA connection. Optical Post can be used to mount the 77848 via its 1/4-20 UNC 2B mounting hole close to a photodetector or sample.

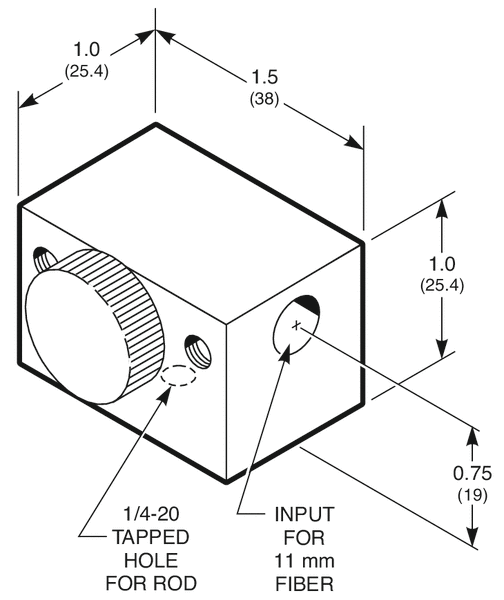

The 77814 Rod Mount for Fiber Bundles allows the optical axis height to be adjusted by mounting it to an Optical Post through its 1/4-20 tapped hole. The position of the fiber bundle within the mount is adjustable within a 17 mm distance.
