Fiber Bundle Mount, Rectangular Bundle to 1.5 Inch Female Flange

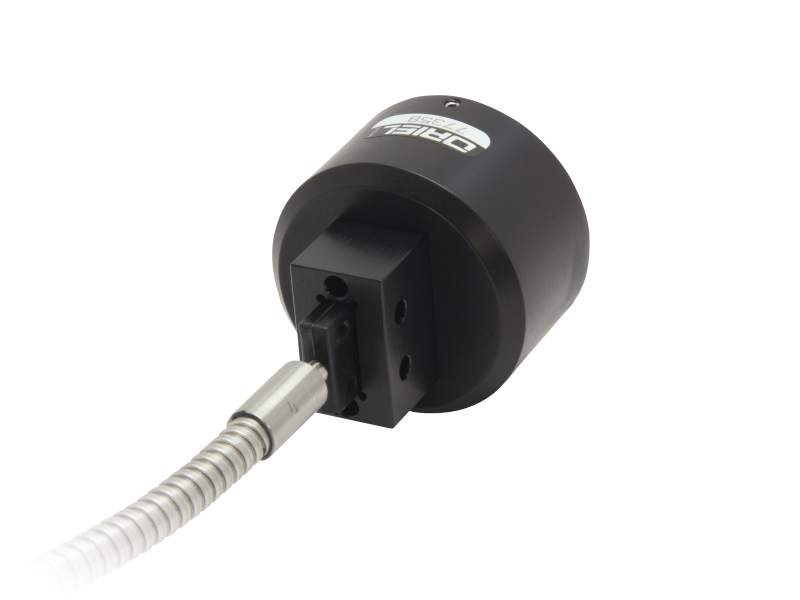

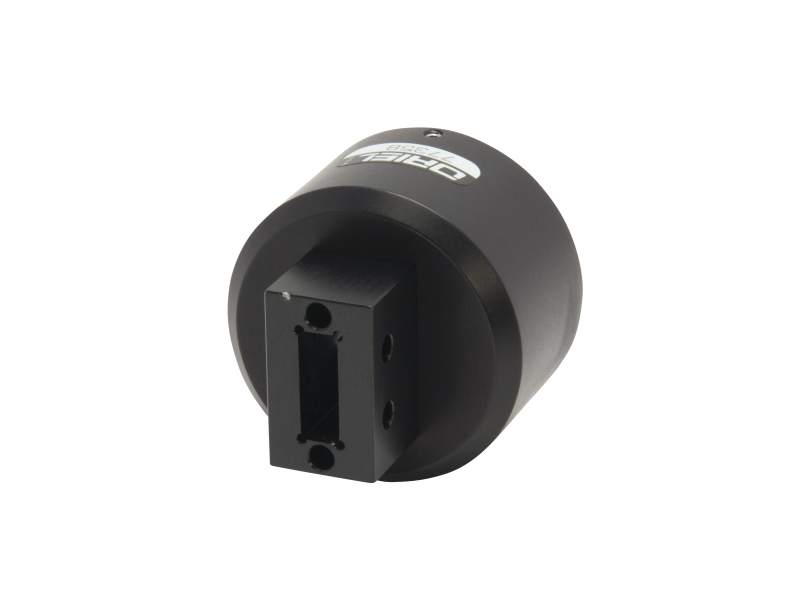

The 77358 Fiber Bundle Flanged Mount couples the rectangular end of a Large Slit Fiber Bundle to a monochromator slit. If you are working with a fused silica bundle, use the 77358 with the 77330 Focusing Lens Assembly. The 77330 will then focus the bundle’s image onto the monochromator input slit. For glass bundles, you may couple the bundle directly to the monochromator slit using only 77358 with its included spacer tube (the 77330 is not required).
