Fiber Optic In-Line Isolators

Products
Features
Contact Us

Overview

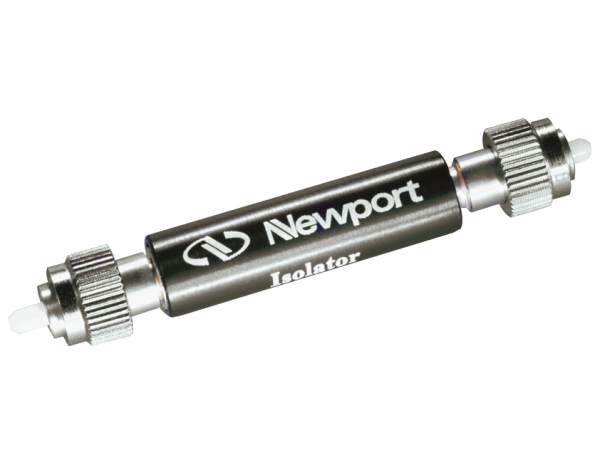

These bulkhead style in-line fiber optic isolators are the smallest and highest quality isolators on the market.

Polarization insensitive
Low loss and low reflection
Compact size
Environmentally stable
Bulkhead version standard

See All Features

Products

Showing 3 of 3 total products

Compatibility:

Show entries

Search:

Compare	Model	Type	Fiber Type	Operating Wavelength	Availability	Price	Brand
F-ISO-D-1-S Double Stage Isolator, 1310 nm, SM Fiber, FC/PC Bulkhead Connectors [Discontinued] $515.00 In Stock	F-ISO-D-1-S Double Stage Isolator, 1310 nm, SM Fiber, FC/PC Bulkhead Connectors [Discontinued]	Double Stage Fiber-optic Isolator	Singlemode	1310 nm	In Stock	$515.00	Newport
F-ISO-D-2-S Double Stage Isolator, 1550 nm, SM Fiber, FC/PC Bulkhead Connectors [Discontinued] $515.00 In Stock	F-ISO-D-2-S Double Stage Isolator, 1550 nm, SM Fiber, FC/PC Bulkhead Connectors [Discontinued]	Double Stage Fiber-optic Isolator	Singlemode	1550 nm	In Stock	$515.00	Newport
F-ISO-S-2-S Single Stage Isolator, 1550 nm, SM Fiber, FC/PC Bulkhead Connectors [Discontinued] $364.00 In Stock	F-ISO-S-2-S Single Stage Isolator, 1550 nm, SM Fiber, FC/PC Bulkhead Connectors [Discontinued]	Fiber-optic Isolator	Singlemode	1550 nm	In Stock	$364.00	Newport

Showing 1 to 3 of 3 entries

Previous1Next

Specifications

Type

ISO-D: Double Stage Fiber-optic Isolator, ISO-S: Fiber-optic Isolator
Fiber Type

P: Polarization Maintaining (PM Fiber), S: Singlemode (SM Fiber)
Fiber Connector

FC/PC
Operating Wavelength

1: 1310 nm, 2: 1550 nm
Maximum Insertion Loss

ISO-D: 0.7 dB, ISO-S: 0.6 dB
Typical Insertion Loss

ISO-D: 0.5 dB, ISO-S: 0.4 dB
Return Loss

PM Fiber: >55/50 dB (without connector), SM Fiber: >60/55 dB (without connector)

Bandwidth

ISO-D: ± 30 nm, ISO-S: ± 15 nm
Maximum Optical Power

500 mW
Operating Temperature

0 to 70°C
Dimensions

ø9.5 x 65 mm
Extinction Ratio

PM Fiber: 20 dB typical
Polarization Mode Dispersion

ISO-D: <0.05 ps, ISO-S: <0.1 ps
Peak Isolation

ISO-D: >52 dB, ISO-S: >40 dB

Features

Compact, Bulkhead Design

These Fiber Optic In-Line Isolators are provided in a bulkhead version, which has the advantage of eliminating the polarization disturbances caused by fiber pigtails. The short optical path length (~7 cm) is most desirable for ultra-short pulse and interferometric applications. The compact design, polarization insensitivity, low loss and low reflection come together to make these isolators ideal for integration in a multitude of fiber optic systems.

Rugged and Environmentally Stable

They are ruggedly built to function reliably in a wide variety of environments. The elimination of fiber pigtails makes these devices easier to handle without need of fragile fiber. The shorter path length also makes these devices less sensitive to environmental fluctuations and provides better performance.

Single and Double Stage Isolators Available

Choose from single stage isolators or double stage isolators. The single stage isolators provide >30 dB Minimum Isolation while the double stage provides >45 dB.
