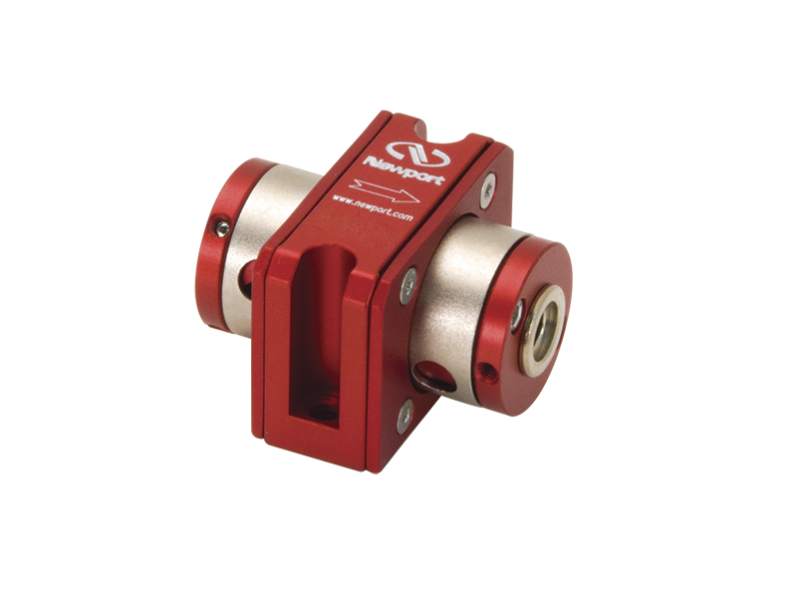

mid-ir faraday optical isolator model ISO-04-0.05um

Overview

Our Mid-IR Faraday optical isolators act essentially as a uni-directional light valve. It is used to protect a laser source near 2050 nm or 4550 nm from destabilizing feedback or actual damage from back-reflected light.

2050 & 4550 nm Mid-IR center wavelengths
High Verdet constant
Low absorption coefficients
1/2 waveplate option (-W models)

See All Features

Products

Showing 2 of 2 total products

Compatibility:

Show entries

Search:

		Compare	Model	ranking	Drawings, CAD & Specs		Center Wavelength	Spectral Range	Transmission	Availability	Featured Item	Price		Brand
		ISO-FRDY-04-2050-N Faraday Optical Isolator, Mid-IR, 4 mm Aperture, 2050 nm Center $5,100.00 In Stock	ISO-FRDY-04-2050-N Faraday Optical Isolator, Mid-IR, 4 mm Aperture, 2050 nm Center	0.0		0.0	2050 nm	2000-2100 nm	>88%	In Stock		$5,100.00		Newport
		ISO-FRDY-04-4550-N Faraday Optical Isolator, Mid-IR, 4 mm Aperture, 4550 nm Center $7,500.00 Contact Us	ISO-FRDY-04-4550-N Faraday Optical Isolator, Mid-IR, 4 mm Aperture, 4550 nm Center	0.0		0.0	4550 nm	4500-4600 nm	>65%	Contact Us		$7,500.00		Newport

Showing 1 to 2 of 2 entries

Previous1Next

Features

1/2 Waveplate Option

We offer versions with an added zero order 1/2 wave plate (-W models) at the output stage so that the direction of the output beam polarization can be rotated to a desired direction.

High Efficiency Performance

The YIG crystal utilized in our Faraday isolators creates a large Verdet constant that ultimately describes the strength of the Faraday effect and provides effective isolation of back-reflected light. Additionally, these isolators have low absorption as a function of the YIG crystal and polarizers, resulting in reliable transmission of light in the forward direction.
