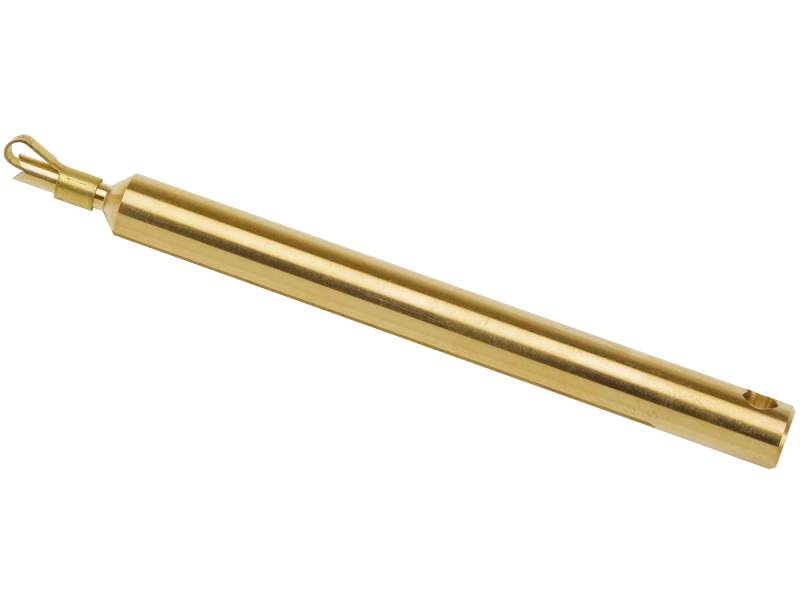

Model FPH-L Rod Lens Holder holds Gradient Index (GRIN) lenses up to 2 mm in diameter with a burr-free sliding clip holds the lens securely in the V-groove. It inserts into any FP Series Positioner with a detent alignment groove to engages with the positioner, preserving lens alignment.
Mount gradient index (GRIN) lenses up to 2 mm diameter
Lens securely held in a V-groove with a spring clip
Additional CAD file downloads are not available for this product.
grin-lens-holder - Drawings
Additional drawings are not available for this product.
Features
Mount up to 2 mm Diameter Gradient Index (GRIN) Lenses

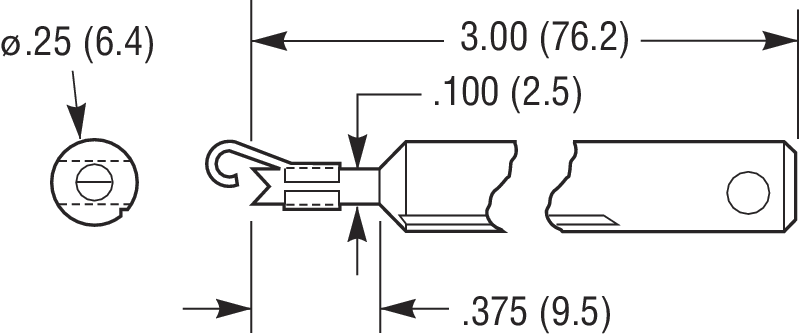

Model FPH-L Rod Lens Holder holds Gradient Index (GRIN) lenses up to 2 mm in diameter. A burr-free sliding clip holds the optic securely in the V-groove that sits in this 3 in (76.2 mm) long holder. This mounts to any FP Series Positioner with a detent alignment groove to match detent pins the positioner to keep the lens horizontal.

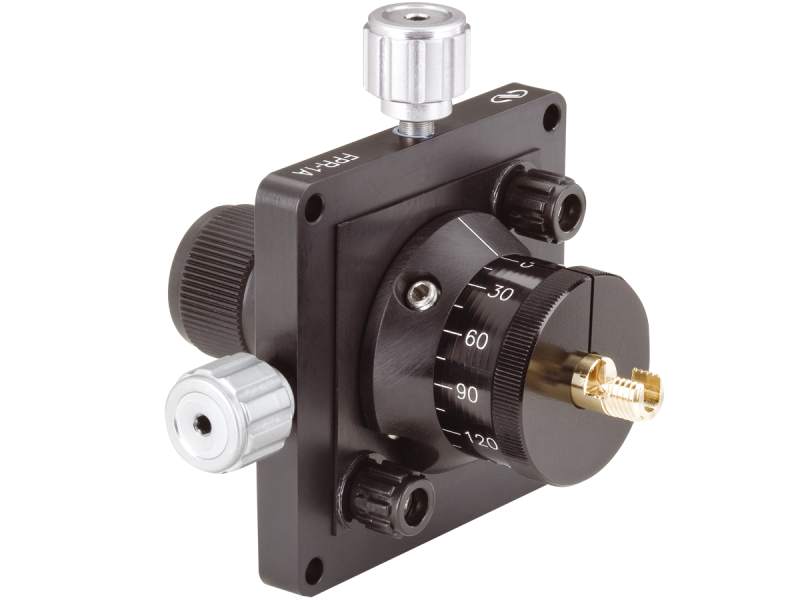

Compatible with FP Series Fiber Chuck Positioners
The FPH-L inserts into any fiber-chuck-holding FP Series Positioners which provide both linear and angular translation to align the GRIN lens.
