High Performance Shortpass Filters

Products
Features
Contact Us

Overview

These superior performance short-wave pass edge filters offer OD ≥4.0 rejection, high transmission in the pass band, and steep cut-off slopes.

OD ≥4.0 rejection
High short-wave transmission
Cut-Off Slope <1%

See All Features

Products

Show entries

Search:

Compare	Model		Optic Size	Cut-off Wavelength	Transmittance Range	Angle of Incidence	Availability	Price	Brand
05SWF-400-B Shortpass Filter, Dichroic, 12.5 mm, 400 nm Cut-off, 325-385 nm Transmission $185.00 In Stock	05SWF-400-B Shortpass Filter, Dichroic, 12.5 mm, 400 nm Cut-off, 325-385 nm Transmission	1.0	Ø12.5 mm	400 nm	325 - 385 nm	45°	In Stock	$185.00	Newport
10SWF-400-B Shortpass Filter, Dichroic, 25.0 mm, 400 nm Cut-off, 325-385 nm Transmission $195.00 In Stock	10SWF-400-B Shortpass Filter, Dichroic, 25.0 mm, 400 nm Cut-off, 325-385 nm Transmission	2.0	Ø25.0 mm	400 nm	325 - 385 nm	45°	In Stock	$195.00	Newport
10SWF-1000-C Shortpass Filter, 25.0 nm, 1000 nm Cut-off, 465-988 nm Transmission $345.00 In Stock	10SWF-1000-C Shortpass Filter, 25.0 nm, 1000 nm Cut-off, 465-988 nm Transmission	3.0	Ø25.0 mm	1000 nm	465 - 988 nm	0°	In Stock	$345.00	Newport
10SWF-1050-B Shortpass Filter, 25.0 nm, 1050 nm Cut-off, 485-1036 nm Transmission $345.00 In Stock	10SWF-1050-B Shortpass Filter, 25.0 nm, 1050 nm Cut-off, 485-1036 nm Transmission	4.0	Ø25.0 mm	1050 nm	485 - 1036 nm	0°	In Stock	$345.00	Newport
10SWF-1100-B Shortpass Filter, 25.0 mm, 1100±11 nm Cut-On, 510-1085 nm Trans. $345.00 Contact Us	10SWF-1100-B Shortpass Filter, 25.0 mm, 1100±11 nm Cut-On, 510-1085 nm Trans.	5.0	Ø25.0 mm	1100 nm	510 - 1085 nm	0°	Contact Us	$345.00	Newport

Showing 1 to 5 of 5 entries

Previous1Next

Specifications

Type

High Transmission Shortpass Filter
Surface Quality

80-50 scratch-dig
Size Tolerance

+0.0/-0.2 mm

Temperature Range

-50 to 100°C
Humidity Resistance

Per MIL-STD-810E, Method 507.3, Procedure III Modified to 7 cycles

Features

Dichroic Shortpass Filter

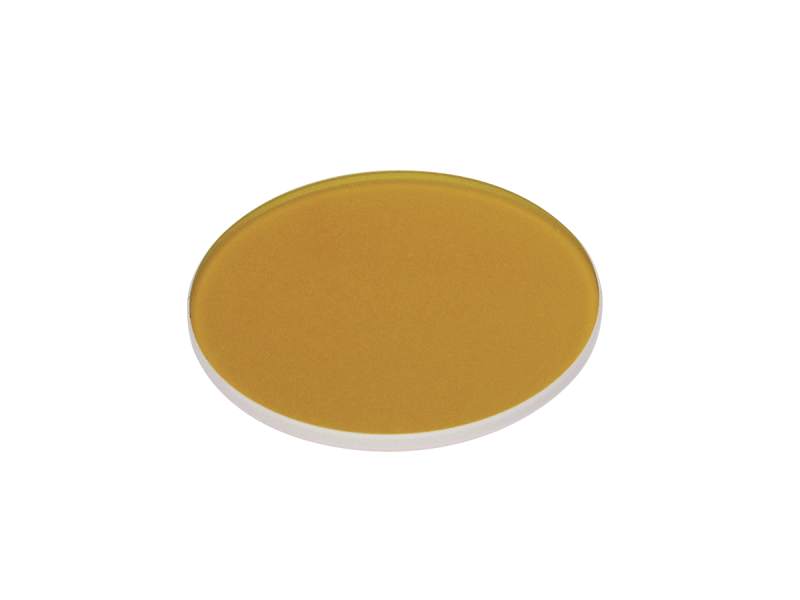

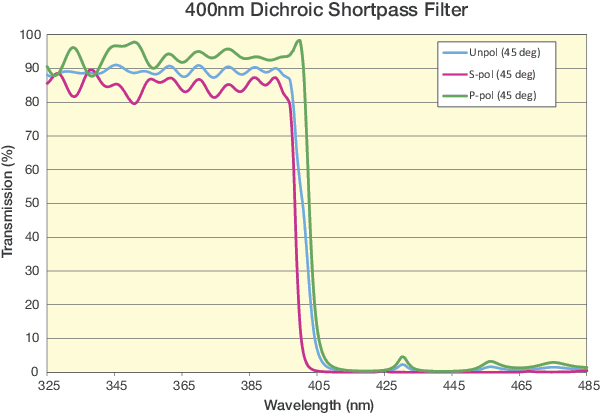

Our Dichroic Shortpass Edge Filters are available in 12.5 and 25 mm diameters, with a 400 nm cut-off wavelength. Designed for 45° angle of incidence, they transmit 325-385 nm spectral range and reject 420 - 485 nm spectral range by reflection. They are ideal for life science applications including fluorescence microscopy or for integration into instrumentation.

High-Performance Shortpass Filter

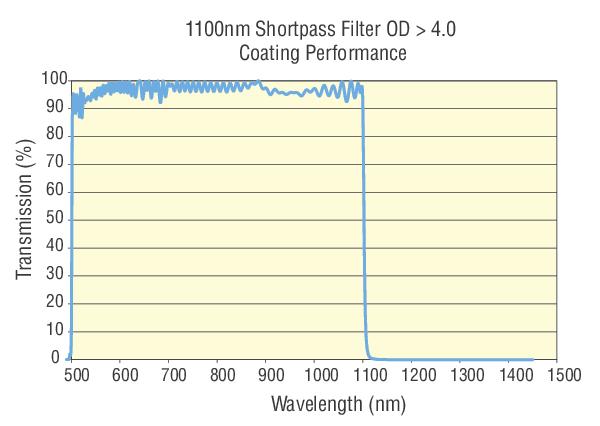

Our high performance shortpass filters are available with cut-off wavelengths of 1000 nm, 1050 nm, and 1100 nm. Designed for 0° angle of incidence, these filters feature ≥ 91% transmission in the passband, OD ≥ 4 rejection in out-of-band, and < 1% cut-off slope.
