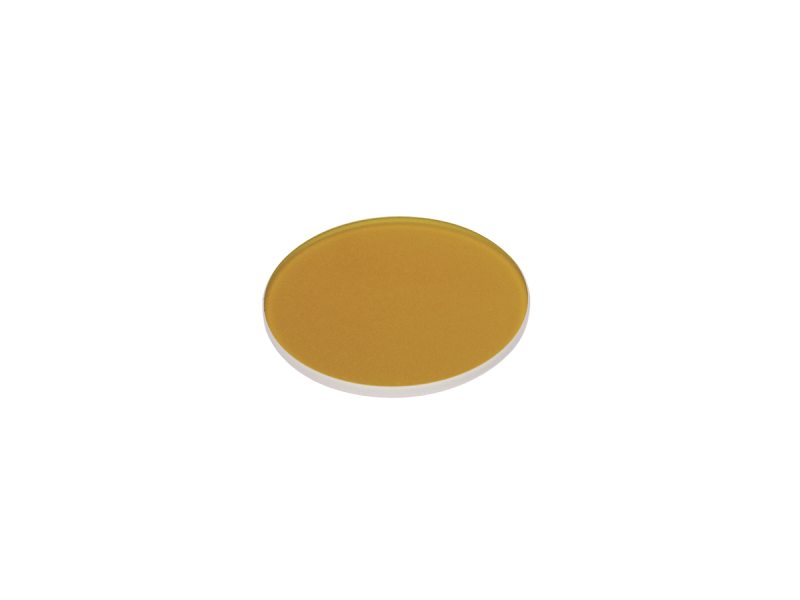

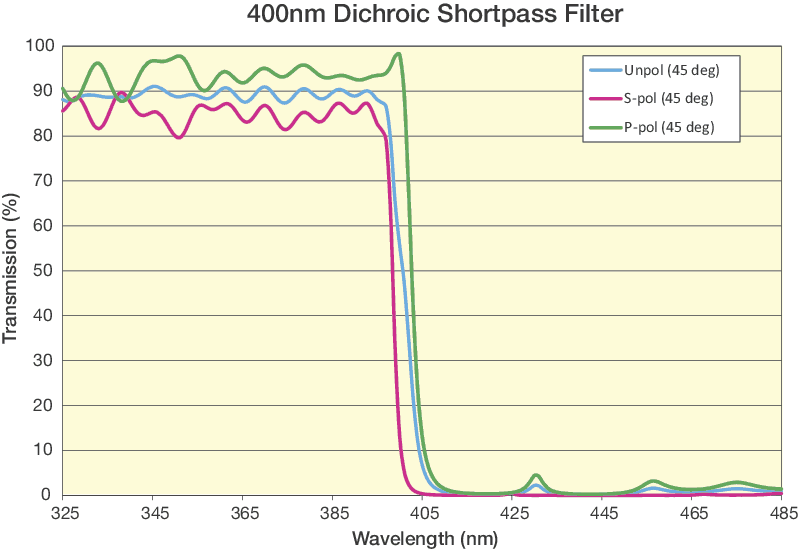

The 05SWF-400-B High Performance Shortpass Edge Filter is a 0.49 in. (12.5 mm) diameter optical filter with a cut-off wavelength of 400 ±2 nm. Designed for 45 degree angle of incidence beams, it transmits 325-385 nm spectral range and rejects 420 - 485 nm spectral range by reflection. Our short-wave pass filters have a steep transition between the region of transmission and reflection that is much steeper than colored glass filters.
| Compare | Description | Compatibility | Drawings, CAD & Specs | Avail. | Price | |||
|---|---|---|---|---|---|---|---|---|
 |
10LWF-400-B Longpass Filter, Dielectric, 25.4 mm, 400 ± 5 nm Cut-On, 410 - 1200 nm | UNIVERSAL |
In Stock
|
$143.00 |
|
|||
 |
10BPF10-400 Bandpass Filter, 25.4 mm, 400±2 nm Center, 10±2 nm FWHM | UNIVERSAL |
In Stock
|
$147.00 |
|
|||
 |
20BPF10-400 Bandpass Filter, 50.8x50.8 mm, 400±2 nm Center, 10±2 nm FWHM | UNIVERSAL |
4 Weeks
|
$463.00 |
|
|||
 |
DCM10 Laser Beam Combiner, Dichroic, 25mm, 372-415 nm Refl, 439-647 nm Trans | UNIVERSAL |
In Stock
|
$359.00 |
|
| Compare | Description | Compatibility | Drawings, CAD & Specs | Avail. | Price | |||
|---|---|---|---|---|---|---|---|---|
 |
FH-05R Optical Filter Mount, Stackable, 0.5 in. Diameter Optics | UNIVERSAL |
In Stock
|
$42.00 |
|
