| Compare | Model | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|
9922 Tiny 45 Degree Mirror Holder, 12.7 mm Diameter |
In Stock
|
$137.00 |
|
|||
|
UPA-45D.5 45 Degree Mirror Holder, 12.7 mm Diameter |
In Stock
|
$43.00 |
|
|||
|
9920 45 Degree Mirror Holder, 25.4 mm Diameter |
In Stock
|
$50.00 |
|
|||
|
|
UPA-45D1 45 Degree Mirror Holder, 25.4 mm Diameter |
In Stock
|
$58.00 |
|
|||
|

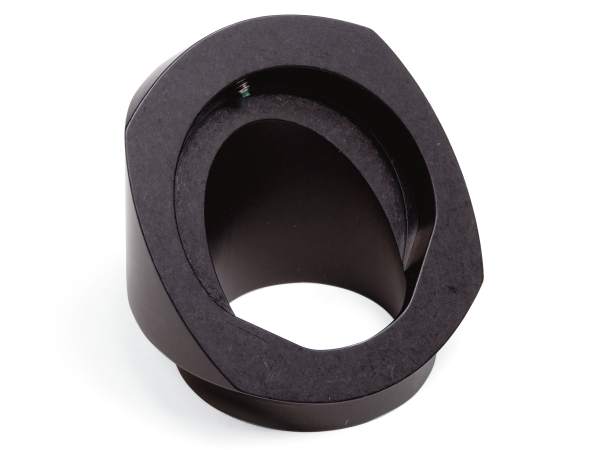

9924 45 Degree Mirror Holder, 50.8 mm Diameter |
In Stock
|
$115.00 |
|
|||
|
OAP-ADAPT Parabolic Mirror Adapter, 1.5 in. Series Flange | $605.00 |
|

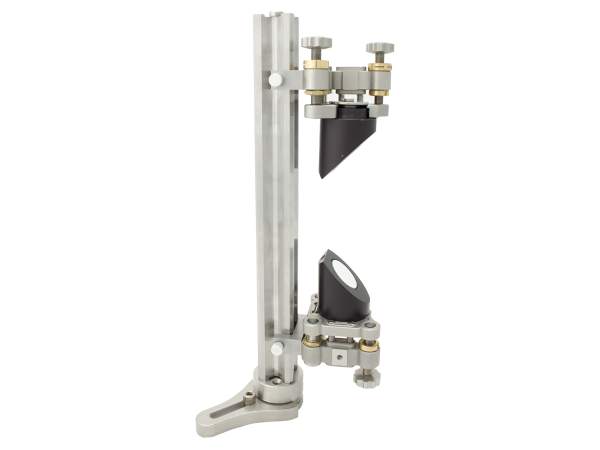

45-Degree mirror adaptors are the key component needed for creating a custom periscope. With a couple of mirror mounts, a long post and two sliding clamps, you can use these 45-degree adaptors to create a 1/2-, 1-, or 2-in. diameter custom periscope to your exact height specifications.

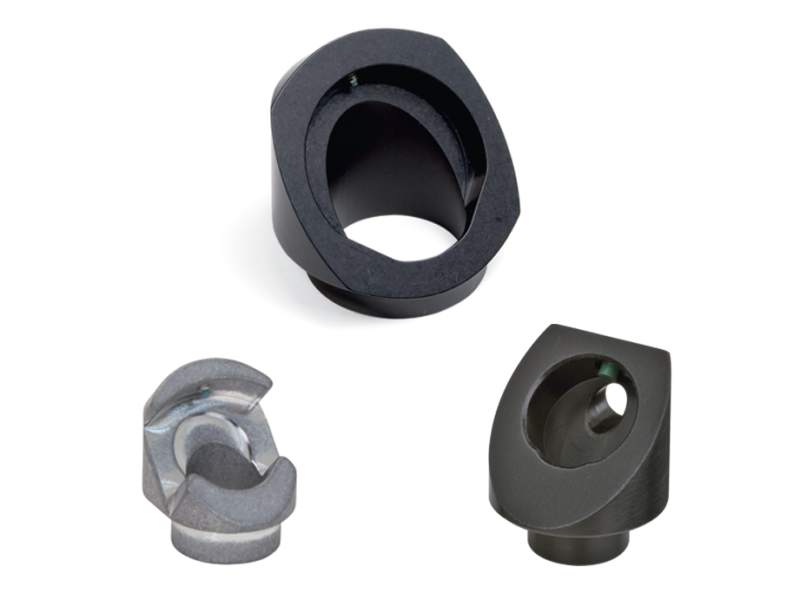

The New Focus 9920, 9922, and 9924 45-degree mirror adaptors have a thru-hole aperture allowing the optical beam to be both transmitted and reflected; perfect for beam splitting applications.
The UPA-45D 45-degree adaptors are not only made to be installed into mirror mounts but have a threaded base to allow fixed post mounting. In this capacity, they can be used to direct an optical beam from a horizontal trajectory to a vertical one.
