80 TPI adjustment screws are included with these stages.

Features

Miniature Size

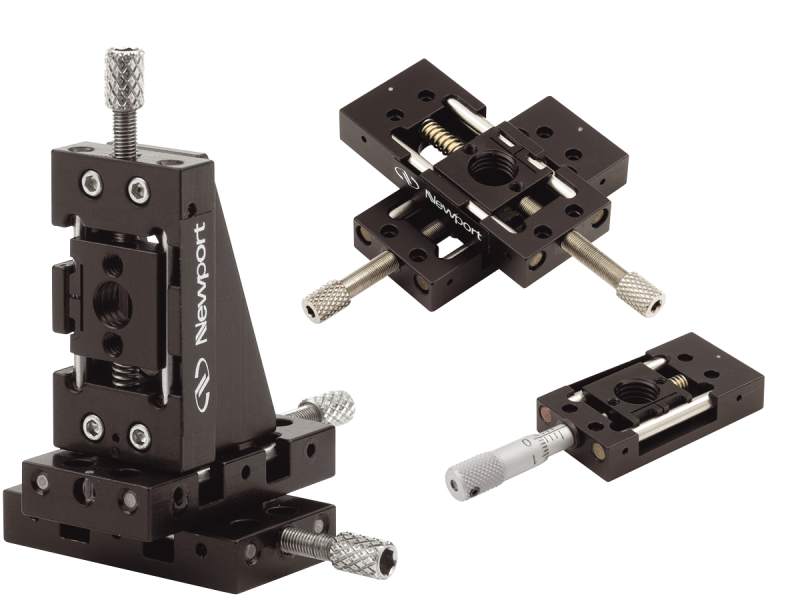

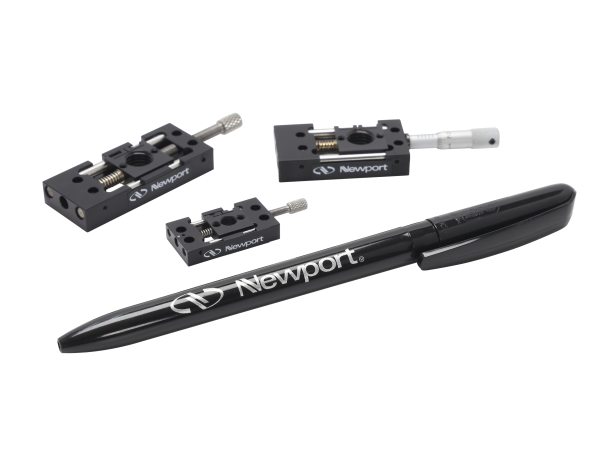

MS Series linear stages are great for space limited optical set-ups. MS-125 and MS-500 Series are equiped with precision 80 TPI adjustment screws. MS-200M Series are actuated by micrometers.

Wear Resistant Motion

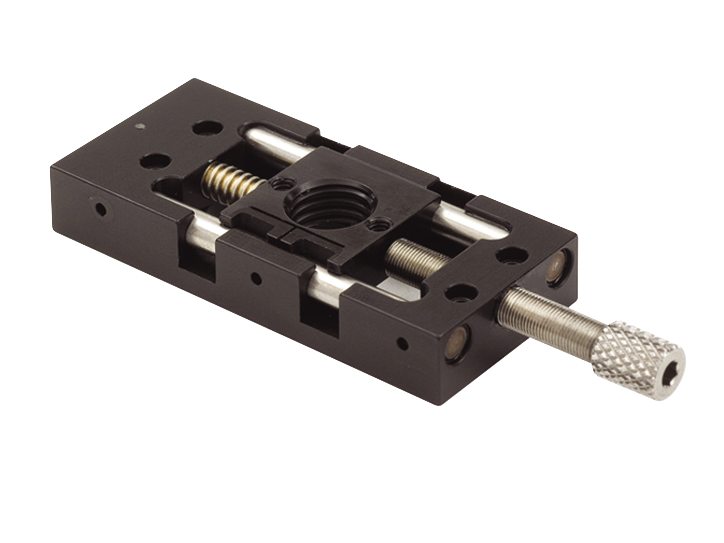

Hardened precision rods are preloaded against a four corner hardened slider for smooth, wear-resistant motion. A return spring provides built-in preload to eliminate backlash. The unique carriage design eliminates wobble while providing an extremely robust stage. MS stages feature a precision 80 TPI adjustment screw to provide unmatched resolution in stages of this size.

Wide Variety of Accessories

The multi-position adapter plates MS-AP-1

Model: MS-AP-1

Adaptor Mounting Plate, MS-125 Series

$57.00
In Stock
Product Series Overview
Dowel Pin Bearing with Aperture Stages
 and MS-AP-3

Model: MS-AP-3

Adaptor Mounting Plate, MS-500 Series

$57.00
In Stock
Product Series Overview
Dowel Pin Bearing with Aperture Stages
interface with standard optical tables and can provide additional footprint to free-standing stages.
The Z-bracket and screw kits MS-KIT-Z-1

Model: MS-KIT-Z-1

Z Bracket and Screw Kit, MS-125 Series

$104.00
In Stock
Product Series Overview
Dowel Pin Bearing with Aperture Stages
and MS-KIT-Z-3

Model: MS-KIT-Z-3

Z Bracket and Screw Kit, MS-500 Series

$73.00
3 Weeks
Product Series Overview
Dowel Pin Bearing with Aperture Stages
are used to build XZ configuration of MS-125 and MS-500 Series miniature linear stages.
The headless adjusting screws MS-SS-1

Model: MS-SS-1

Adjustment Screw, Headless, MS-125 Series

$27.00
In Stock
Product Series Overview
Dowel Pin Bearing with Aperture Stages
and MS-SS-3

Model: MS-SS-3

Adjustment Screw, Headless, MS-500 Series

$27.00
In Stock
Product Series Overview
Dowel Pin Bearing with Aperture Stages
replace a standard thumb screw in MS-125 or MS-500. They provide full linear travel while reducing the length of the stage by 0.4 or 0.5 in. respectively.
The knurled thumb grips MS-TG-1

Model: MS-TG-1

Knurled Thumb Grip, MS-125 Series

$18.70
Contact Us
Product Series Overview
Dowel Pin Bearing with Aperture Stages
and MS-TG-3

Model: MS-TG-3

Knurled Thumb Grip, MS-500 Series

$32.00
In Stock
Product Series Overview
Dowel Pin Bearing with Aperture Stages
can be added to MS-125 and MS-500 stages to enhance resolution and alternatively can be used as a locking nut.
With the pinhole adapter MS-PA-1

Model: MS-PA-1

Pinhole Adaptor, MS-125 Series

$50.00
In Stock
Product Series Overview
Dowel Pin Bearing with Aperture Stages
or MS-PA-3

Model: MS-PA-3

Pinhole Adaptor, MS-500 Series

$50.00
In Stock
Product Series Overview
Dowel Pin Bearing with Aperture Stages
, apertures can be changed by replacing the entire adapter or by removing and replacing the aperture only. A soft rubber washer can be used under the adapter for slit aperture orientation.

Objective Lens Positioning Application

The objective adapter MS-OA-3

Model: MS-OA-3

Objective Adaptor, MS-500 Series

$60.00
In Stock
Product Series Overview
Dowel Pin Bearing with Aperture Stages

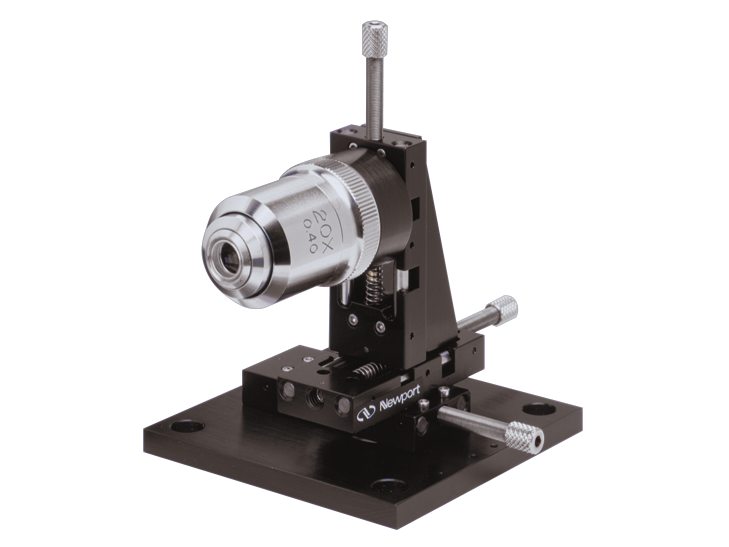

allows mounting of standard microscope objectives to MS-500 stages. A Newport M Series Objective Lens is shown with Model MS-500-XYZ stage to create a miniature XYZ objective lens positioner.
