Features

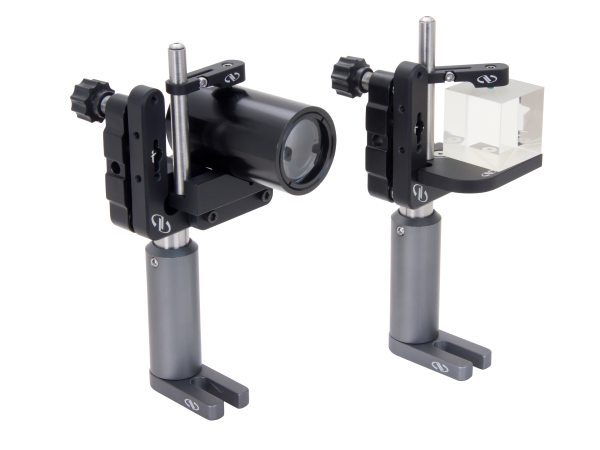

Optic Clamping Arm
The TC-1, Optic Clamping Arm slides on to our 6 mm diameter guide rods to allow clamping of optics to mounts. The TC-1’s Clamping height can be extended using various lengths of our OC1-GR series guide rods.

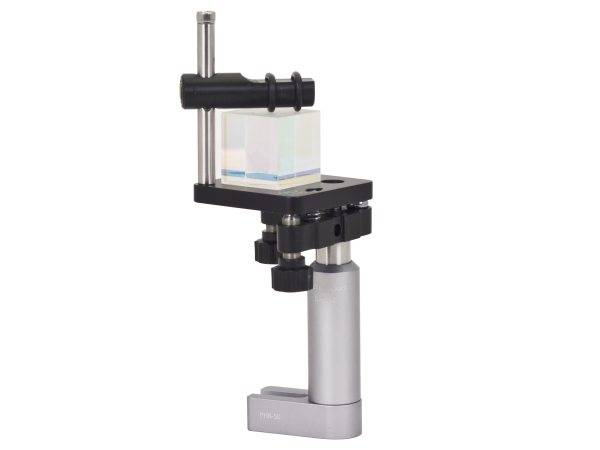

Prism Clamp for Platform Mounts
The PT-1C features an 8-32 threaded hole in one end and M4 threaded hole in the other end. It is used to clamp prisms and cube beam splitters to platform mounts.
