Compare Model Drawings, CAD & Specs Availability Price
OC1-PM
Optical Post Mount, 1 in. Optics Cage Plus
$20.00
OC1-PM Optical Post Mount, 1 in. Optics Cage Plus $20.00
OC1-RH
Adaptor, A-Line to Optics Cage+
$35.00
OC1-RH Adaptor, A-Line to Optics Cage+ $35.00
OC1-XCL
Cross Clamp, 1.0 in., Optics Cage Plus
$29.00
OC1-XCL Cross Clamp, 1.0 in., Optics Cage Plus $29.00

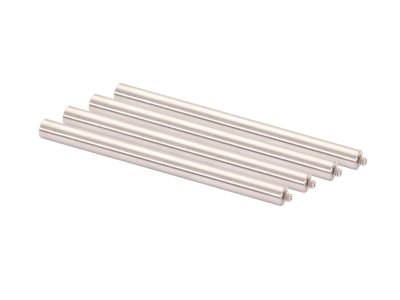

OC1-GR-1
Guide Rod, 6 mm, 4-40 Thd, 1 in. Length, 1 in. Optics Cage Plus
$7.60
OC1-GR-1 Guide Rod, 6 mm, 4-40 Thd, 1 in. Length, 1 in. Optics Cage Plus $7.60
OC1-GR-2
Guide Rod, 6 mm, 4-40 Thd, 2 in. Length, 1 in. Optics Cage Plus
$9.30
OC1-GR-2 Guide Rod, 6 mm, 4-40 Thd, 2 in. Length, 1 in. Optics Cage Plus $9.30
OC1-GR-3
Guide Rod, 6 mm, 4-40 Thd, 3 in. Length, 1 in. Optics Cage Plus
$10.70
OC1-GR-3 Guide Rod, 6 mm, 4-40 Thd, 3 in. Length, 1 in. Optics Cage Plus $10.70
OC1-GR-4
Guide Rod, 6 mm, 4-40 Thd, 4 in. Length, 1 in. Optics Cage Plus
$10.70
OC1-GR-4 Guide Rod, 6 mm, 4-40 Thd, 4 in. Length, 1 in. Optics Cage Plus $10.70
OC1-GR-4S
Guide Rods, 6 mm, 4-40 Thd, 4 in. Long, 1 mm Laser Marks, 1 in. Optics Cage Plus
$26.00
OC1-GR-4S Guide Rods, 6 mm, 4-40 Thd, 4 in. Long, 1 mm Laser Marks, 1 in. Optics Cage Plus $26.00
OC1-GR-6
Guide Rod, 6 mm, 4-40 Thd, 6 in. Length, 1 in. Optics Cage Plus
$13.10
OC1-GR-6 Guide Rod, 6 mm, 4-40 Thd, 6 in. Length, 1 in. Optics Cage Plus $13.10
OC1-GR-6S
Guide Rods, 6 mm, 4-40 Thd, 6 in. Long, 1 mm Laser Marks, 1 in. Optics Cage Plus
$27.00
OC1-GR-6S Guide Rods, 6 mm, 4-40 Thd, 6 in. Long, 1 mm Laser Marks, 1 in. Optics Cage Plus $27.00
OC1-GR-8
Guide Rod, 6 mm, 4-40 Thd, 8 in. Length, 1 in. Optics Cage Plus
$17.40
OC1-GR-8 Guide Rod, 6 mm, 4-40 Thd, 8 in. Length, 1 in. Optics Cage Plus $17.40
OC1-GR-10
Guide Rod, 6 mm, 4-40 Thd, 10 in. Length, 1 in. Optics Cage Plus
$18.70
OC1-GR-10 Guide Rod, 6 mm, 4-40 Thd, 10 in. Length, 1 in. Optics Cage Plus $18.70
OC1-GR-12
Guide Rod, 6 mm, 4-40 Thd, 12 in. Length, 1 in. Optics Cage Plus
$24.00
OC1-GR-12 Guide Rod, 6 mm, 4-40 Thd, 12 in. Length, 1 in. Optics Cage Plus $24.00
OC1-GR-18
Guide Rod, 6 mm, 4-40 Thd, 18 in. Length, 1 in. Optics Cage Plus
$35.00
OC1-GR-18 Guide Rod, 6 mm, 4-40 Thd, 18 in. Length, 1 in. Optics Cage Plus $35.00
OC1-GR-24
Guide Rod, 6 mm, 4-40 Thd, 24 in. Length, 1 in. Optics Cage Plus
$40.00
OC1-GR-24 Guide Rod, 6 mm, 4-40 Thd, 24 in. Length, 1 in. Optics Cage Plus $40.00

Features

Optional Laser Marked Guide Rods

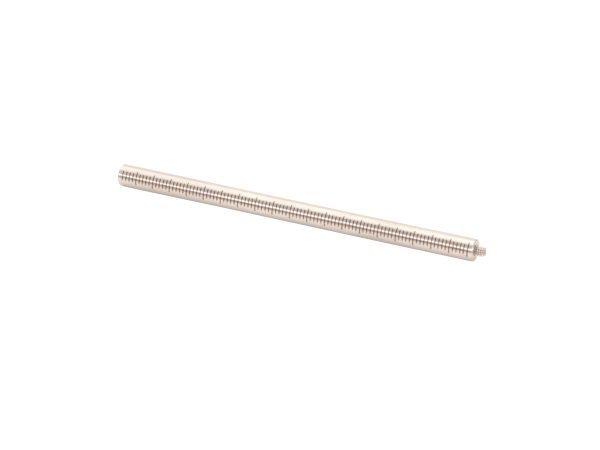

In addition to the regular 6 mm guide rods of various lengths, OpticsCage+ also provides guide rods with 1 mm laser marking such as OC1-GR-4S, making alignment even easier.

Versatile OpticsCage+ Adapters

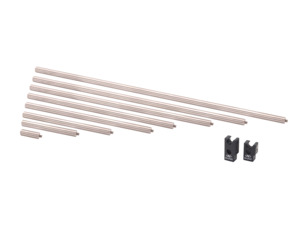

OC1-PM post mount adapter allows one to easily mount OpticsCage+ system on posts and pedestals. OC1-XCL allows stable and easy cross clamping. OC1-RH is an adapter that allows one to mount Newport's self aligning A-Line lens alignment system inside of OpticsCage+ system. OC1-AT is an alignment target that makes alignment even easier.

Snap-in Design for Easy Assembly and Alignment

Most optic cage systems only use a closed-hole captive design for adapting optic carriers to the 4-rod cage structure. This restriction requires a nearly complete teardown of a cage system to simply add or remove a component. The open-slot design of OpticsCage+ allows optical elements to be inserted directly into an assembled cage without the need for disassembly.
