Integrating sphere port frame size adapters mount onto a port frame to change the port frame diameter. This allows accessories designed for other port frame sizes to be used with existing port frames.
| Compare | Model | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|

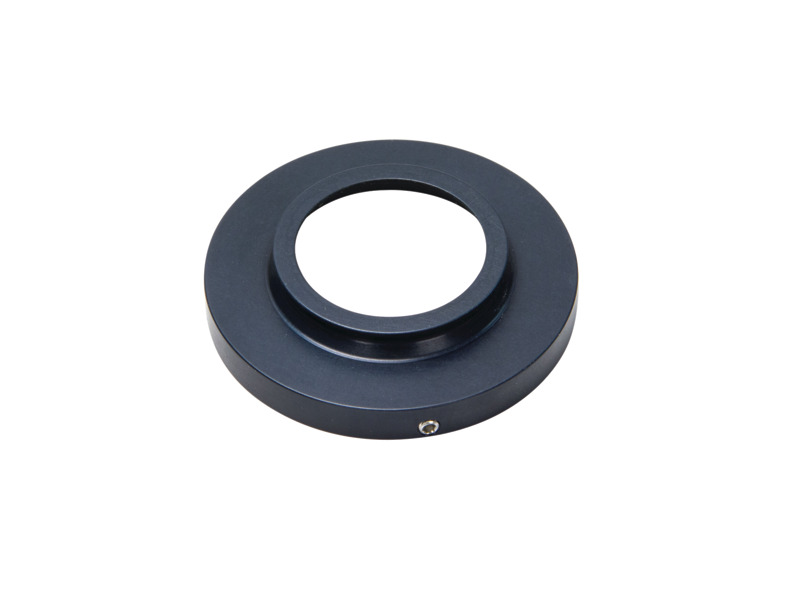

819M-PFR-1.0-1.5BV2 Port Frame Reducer, 1.5 to 1 in. Port, Flat Black, 819C and 819D Spheres
$386.00
In Stock
|
7Z08361N 819M-PFR-1.0-1.5BV2 Port Frame Reducer, 1.5 to 1 in. Port, Flat Black, 819C and 819D Spheres |
In Stock
|
$386.00 |
|
||
|
819M-PFR-SF-1.5V2 Port Frame Reducer, 1.5 to 1 in. Port, Barium Sulfate, 819C and 819D Spheres
$444.00
In Stock
|
7Z08362N 819M-PFR-SF-1.5V2 Port Frame Reducer, 1.5 to 1 in. Port, Barium Sulfate, 819C and 819D Spheres |
In Stock
|
$444.00 |
|
||
|
819-PC-0.5V2 Port Frame Expander, 0.5 to 1.0 in. Port, Flat Black, 819C and 819D Spheres
$124.00
In Stock
|
7Z08365N 819-PC-0.5V2 Port Frame Expander, 0.5 to 1.0 in. Port, Flat Black, 819C and 819D Spheres |
In Stock
|
$124.00 |
|
||
|
|
Port Frame Expander, 0.5 to 1.0 in. Port, Flat Black, 819C and 819D Spheres
$127.00
In Stock
|
819-PC-0.5 Port Frame Expander, 0.5 to 1.0 in. Port, Flat Black, 819C and 819D Spheres |
In Stock
|
$127.00 |
|
||
|
Port Frame Reducer, 1.5 to 1 in. Port, Spectraflect, 819C and 819D Spheres
$454.00
5 Weeks
|
819M-PFR-SF-1.5 Port Frame Reducer, 1.5 to 1 in. Port, Spectraflect, 819C and 819D Spheres |
5 Weeks
|
$454.00 |
|
||
|
Port Frame Reducer, 1.5 to 1 in. Port, Flat Black, 819C and 819D Spheres
$402.00
6 Weeks
|
819M-PFR-1.0-1.5B Port Frame Reducer, 1.5 to 1 in. Port, Flat Black, 819C and 819D Spheres |
6 Weeks
|
$402.00 |
|
||
|
Port Frame Reducer, 1.5 to 1 in. Port, Diffuse Gold, 819C and 819D Spheres
$518.00
In Stock
|
819M-PFR-1.0-1.5G Port Frame Reducer, 1.5 to 1 in. Port, Diffuse Gold, 819C and 819D Spheres |
In Stock
|
$518.00 |
|
||
|

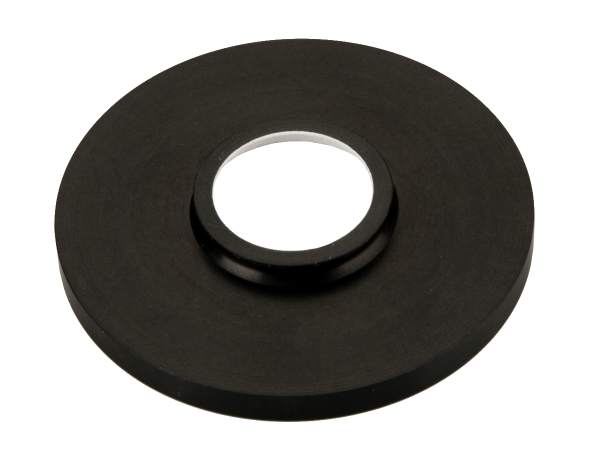

Port Frame Reducer, 2.5 to 1 in. Port, Spectraflect, 819C and 819D Spheres
$396.00
In Stock
|
819M-PFR-1.0-2.5 Port Frame Reducer, 2.5 to 1 in. Port, Spectraflect, 819C and 819D Spheres |
In Stock
|
$396.00 |
|
||
|
|
Port Frame Reducer, 2.5 to 1 in. Port, Flat Black, 819C and 819D Spheres
$402.00
|
819M-PFR-1.0-2.5B Port Frame Reducer, 2.5 to 1 in. Port, Flat Black, 819C and 819D Spheres | $402.00 |
|
|||
|
Port Frame Reducer, 2.5 to 1 in. Port, Diffuse Gold, 819C and 819D Spheres
$608.00
In Stock
|
819M-PFR-1.0-2.5G Port Frame Reducer, 2.5 to 1 in. Port, Diffuse Gold, 819C and 819D Spheres |
In Stock
|
$608.00 |
|
A port frame reducer is a fixture that mounts onto a port frame of an integrating sphere, effectively reducing the frame and the port size to a specified diameter. Unlike a port reducer, a port frame reducer has a flange so that an additional sphere accessory can be mounted. Currently, barium sulfate (spectraflect), and flat black coated port frame reducers are available. Use them for for both the barium sulfate spheres and the PTFE (spectralon) based integrating spheres.
These port frame size adapters are available not only in barium sulfate, or diffused gold, but also in Flat Black type coating in some cases. Flat Black type highly absorbs light and is used to imitate an open port, which does not have any reflection, and reduces introduction of ambient light into the sphere.
Complete your integrating sphere set-up with a wide variety of accessories. Our accessories include port plugs, port reducers, port frame reducers, fiber optic adapters, detector adapters, C-mount of SM1 type thread adapters, mounting assemblies, and a 0.5 inch to 1.0 inch port expander.
