Overview

Q series condensing lens assemblies are compatible with the model 60000 Q series lamp housing. Up to four condensers may be installed, which can provide simultaneous illumination of multiple samples. The lens assemblies can be used to create a unique light source configuration or reconfiguring an existing light source system.

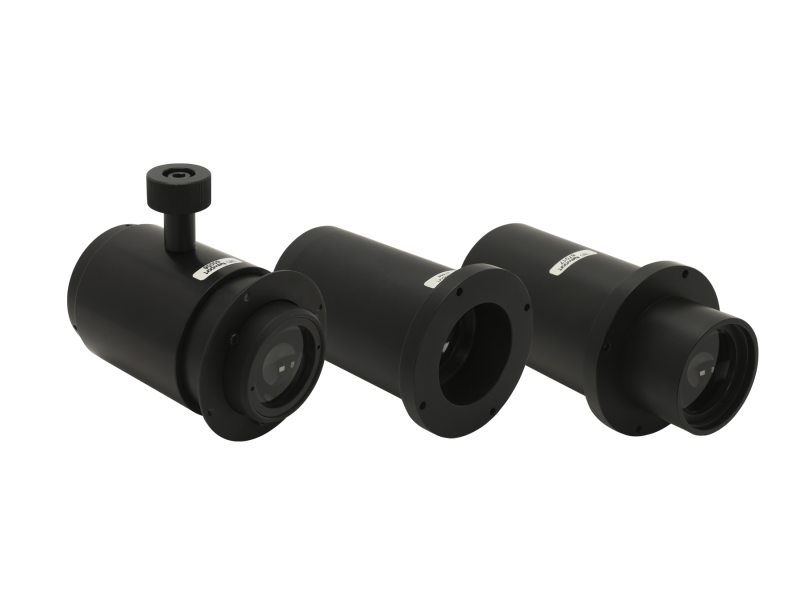

Condenser Lenses for Q Series lamp housings
Up to 4 can be installed for simultaneous illumination
Asphere or plano-convex lenses
1.5 Inch flange for beam routing

Products

Compare	Model	Compatibility	rankScore		Condenser Type	F/#	Lens Material	Lens Transmittance Range	Lens Multiplication Factor	Availability	Price	Brand
60008 Condensing Lens Assembly, Q Series Lamp Housing, F/0.85 Asphere $570.00 4 Weeks	60008 Condensing Lens Assembly, Q Series Lamp Housing, F/0.85 Asphere	UNIVERSAL	1.0	1.0	Asphere	F/0.85	Borofloat® 33	350 - 2500 nm	0.13	4 Weeks	$570.00	Oriel Instruments
67017 Condensing Lens Assembly, Q Series Lamp Housing, F/1 Asphere $1,095.00 Contact Us	67017 Condensing Lens Assembly, Q Series Lamp Housing, F/1 Asphere	UNIVERSAL	1.0	2.0	Asphere	F/1	UV Fused Silica	200 - 2500 nm		Contact Us	$1,095.00	Oriel Instruments
60076 Condensing Lens Assembly, Q Series Lamp Housing, F/1 Plano-Convex $730.00 2 Weeks	60076 Condensing Lens Assembly, Q Series Lamp Housing, F/1 Plano-Convex	UNIVERSAL	1.0	3.0	Plano-Convex	F/1	UV Fused Silica	200 - 2500 nm	0.11	2 Weeks	$730.00	Oriel Instruments
60006 Condensing Lens Assembly, Q Series Lamp Housing, F/1.5 Plano-Convex $415.00 In Stock	60006 Condensing Lens Assembly, Q Series Lamp Housing, F/1.5 Plano-Convex	UNIVERSAL	1.0	4.0	Plano-Convex	F/1.5	UV Fused Silica	200 - 2500 nm	0.06	In Stock	$415.00	Oriel Instruments
