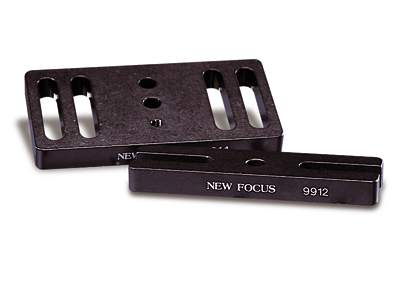

Slotted base plates enable easy and accurate XY horizontal positioning adjustment of post-mounted optical components. Compatible with 0.5 in. (12.7 mm) diameter optical post holders, these anodized aluminum plates provide slot-guided positioning in a variety of configurations. The 9912 features long slots on either side, the 9914 is a larger baseplate with multiple mounting holes and an extra slot on either side, the 9918 has two perpendicular slots, and the 9915 has a pair of in-line slots.
| Compare | Model | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|
9912 Baseplate, 1.0 in. Width, 1/4-20 (M6) Counterbored |
In Stock
|
$17.40 |
|
|||
|
9914 Baseplate, 2.0 in. Width, 1/4-20 (M6) Counterbored |
In Stock
|
$24.00 |
|
|||
|
9915 Baseplate, 1.25 in. Width, 1/4-20 (M6) and 8-32 (M4) Counterbored Slots |
In Stock
|
$29.00 |
|
|||
|
9918 Baseplate, 2.25 in. Width, 1/4-20 (M6) and 8-32 (M4) Counterbored Slots |
In Stock
|
$42.00 |
|
| Models |
$17.40
In Stock
Product Series Overview
|
$24.00
In Stock
Product Series Overview
|
$29.00
In Stock
Product Series Overview
|
$42.00
In Stock
Product Series Overview
|
|---|---|---|---|---|
| Thread Type | 1/4-20 (M6) CLR | 8-32 THD and 1/4-20 (M6) CLR | 8-32 (M4) and 1/4-20 (M6) CLR | 8-32 (M4) and 1/4-20 (M6) CLR |
| Length | 73.8 mm | 92.2 mm | 98.7 mm | 73.8 mm |
| Width | 25.4 mm | 50.8 mm | 31.8 mm | 57.2 mm |
| Height | 9.1 mm | 9.1 mm | 9.1 mm | 10.4 mm |
The slotted design of these base plates allow you to adjust the position easily in the X or Y direction on an optical table or breadboard.
