461 Series ULTRAlign™ crossed-roller bearing linear translation stages feature stainless steel construction, 13 mm of travel, and a low profile. They are available in single or multi-axis configurations. Crossed-roller bearings and precision-manufactured bearing reference surfaces provide linear travel with guaranteed <100 µrad deviation of each axis.
| Compare | Model | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|
461-X-M Manual Linear Stage, ULTRAlign, 13 mm, Crossed-Roller, 8-32 & 1/4-20 |
In Stock
|
$756.00 |
|
|||
|
461-Z-M Vertical Linear Stage, ULTRAlign, 13 mm, Crossed-Roller, 8-32 & 1/4-20 |
In Stock
|
$756.00 |
|
|||
|
461-XY-M XY Linear Stage, ULTRAlign, 13 mm, Crossed-Roller, 8-32 & 1/4-20 |
In Stock
|
$1,282.00 |
|
|||
|
461-XZ-M XZ Linear Stage, ULTRAlign, 13 mm, Crossed-Roller, 8-32 & 1/4-20 |
In Stock
|
$1,205.00 |
|
|||
|

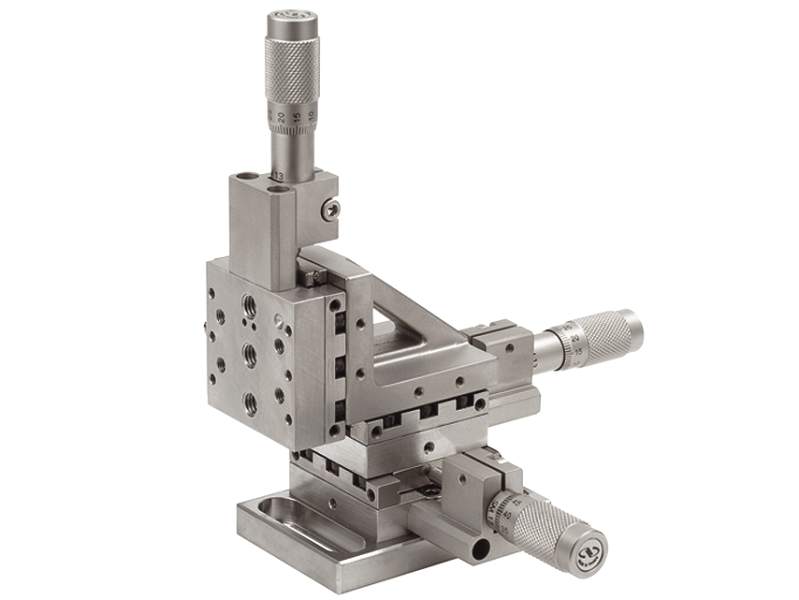

461-XYZ-M XYZ Linear Stage, ULTRAlign, 13 mm, Crossed-Roller, 8-32 & 1/4-20 |
In Stock
|
$2,078.00 |
|
|||
|
XYZ Linear Stage, ULTRAlign, 13 mm, Crossed-Roller, 8-32 & 1/4-20, Left-handed
$2,078.00
In Stock
|
461-XYZ-LH-M XYZ Linear Stage, ULTRAlign, 13 mm, Crossed-Roller, 8-32 & 1/4-20, Left-handed |
In Stock
|
$2,078.00 |
|
||
|
|
M-461-X-M Manual Linear Stage, ULTRAlign, 13 mm Travel, Crossed-Roller, M4, M6 |
2 Weeks
|
$756.00 |
|
|||
|
|
M-461-Z-M Vertical Linear Stage, ULTRAlign, 13 mm Travel, Crossed-Roller, M4, M6 |
In Stock
|
$756.00 |
|
|||
|
|
M-461-XY-M XY Linear Stage, ULTRAlign, 13 mm Travel, Crossed-Roller, M4, M6 |
In Stock
|
$1,282.00 |
|
|||
|
|
M-461-XZ-M XZ Linear Stage, ULTRAlign, 13 mm Travel, Crossed-Roller, M4, M6 |
In Stock
|
$1,205.00 |
|
|||
|
|
M-461-XYZ-M XYZ Linear Stage, ULTRAlign, 13 mm Travel, Crossed-Roller, M4, M6 |
In Stock
|
$2,078.00 |
|
|||
|
|
XYZ Linear Stage, ULTRAlign, 13 mm Travel, Crossed-Roller, M4, M6, Left-handed
$2,078.00
In Stock
|
M-461-XYZ-LH-M XYZ Linear Stage, ULTRAlign, 13 mm Travel, Crossed-Roller, M4, M6, Left-handed |
In Stock
|
$2,078.00 |
|
ULTRAlign Stainless Steel Crossed-Roller Translation Stages provide a low profile, yet solid and stable linear translation, that can be locked in place without disturbing translation or position. Perfect for many standard optical applications such as interferometry, linear translation by the crossed-roller bearings and the precision-manufactured bearing reference surfaces provide a maximum angular deviation of <100 µrad for any axis. Z-axis stages do not depend on springs for support, ensuring maximum vertical load capacity. The mounting surface of these stages has multiple threaded holes, available in either English or Metric units, to make mounting easy and versatile in most table-top optical systems.
Multiple configurations for these stages are available to match your specific requirements: X, Z, XY, XZ and XYZ. XYZ stage is offered with a choice between left-handed and right-handed. In addition, the mounting base can be removed for an even lower profile. 1.0 in. (25.4 mm) travel version is also available.
Each ULTRAlign Stainless Steel Crossed-Roller Translation Stage is tested individually to ensure it meets the <100 µrad angular deviation requirement. We don't just say it, we guarantee it. The actual test results are included with each stage.
