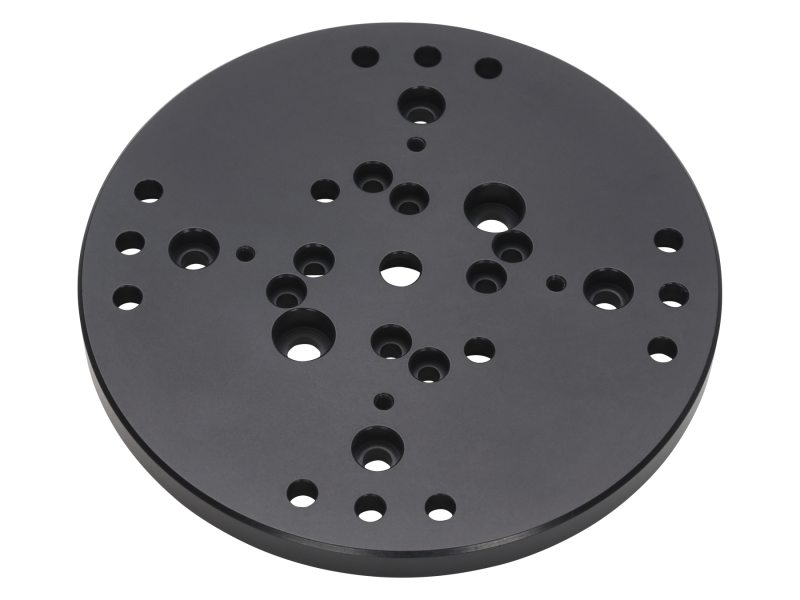

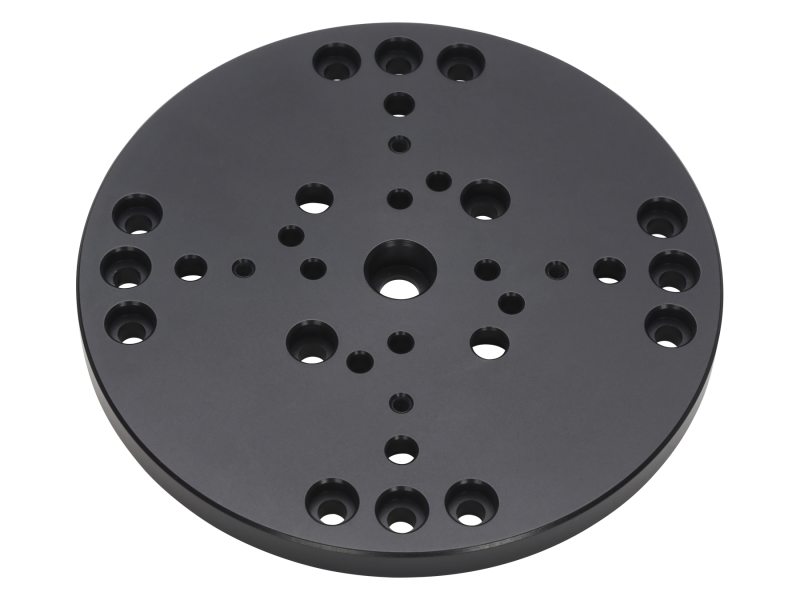

The 338294 Round Intermediate Adaptor Plate is 105 mm in diameter and is designed to allow two components of different sizes and without a common hole pattern to be attached together. It is made of aluminum and compatible with UMR8 stages.
338285Intermediate Adaptor Plate, 120 x 120 mm Square, PI120 Series
METRIC
In Stock
$106.00
338284Intermediate Adaptor Plate, 86 x 86 mm Square, PI86.01 Series
METRIC
In Stock
$92.00
338283Intermediate Adaptor Plate, 50 x 50 mm Square, PI50.01 Series
METRIC
In Stock
$72.00
338294Intermediate Adaptor Plate, Round, Φ105 mm, PI86.01 Series
METRIC
In Stock
$122.00
338286Intermediate Adaptor Plate, 86 x 86 mm Square, PI86.02 Series
METRIC
In Stock
$76.00
