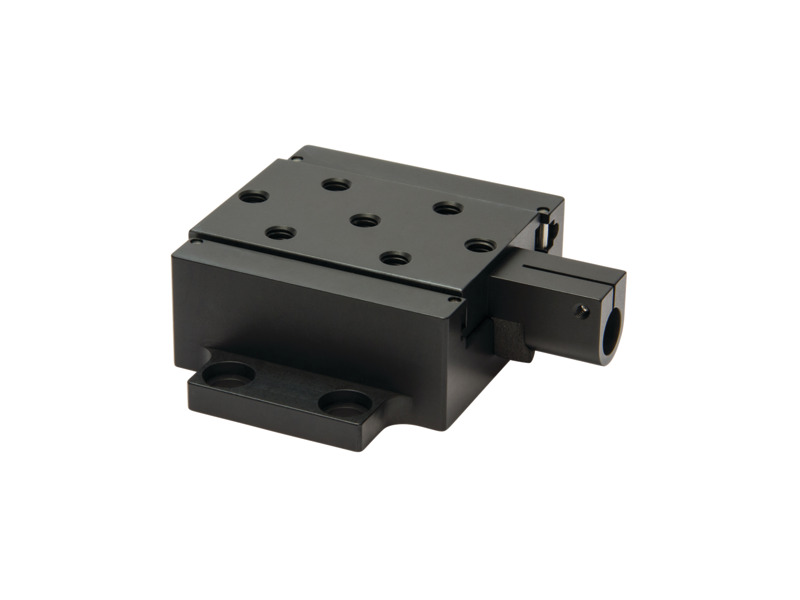

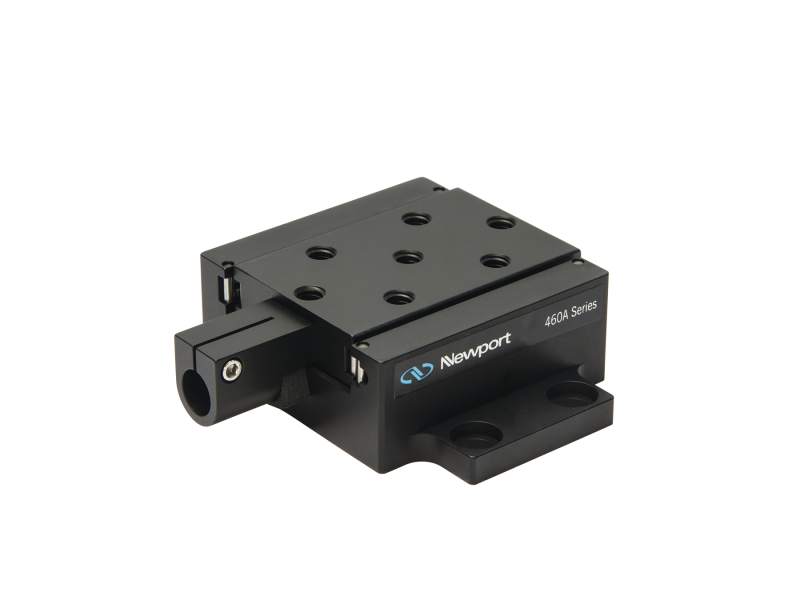

The 460A-X 0.5 inch (12.7 mm) Travel Quick-Mount Linear Stages has an integrated, yet modular, design allowing for increased versatility. The 460A-X features all aluminum construction with hardened ball bearings running along opposing pairs of polished and hardened stainless steel rods. This offers exceptional straightness of travel, but a lower load capacity than our crossed-roller bearing stages. The stages are spring loaded against the drive actuator for backlash free motion. Vertical-drive assemblies carry the load through the actuator spindle rather than the springs for positive load support.
The light-weight aluminum construction translates using stainless steel ball bearings running along opposing pairs of polished stainless steel rods. The stages are also spring loaded against the drive actuator for backlash free motion. For the lower load capacity of the lightweight stage, this offers exceptional straightness of travel over the full 0.5-in. (or 13 mm) travel range, with <150 µrad deviation.
Most standard stages mount beneath the translating component, requiring proper positioning to expose the mounting through holes. With the 460A Series Quick-Mount Linear Stages, however, convenient external mounting tabs eliminate this need. These stages offer the easiest mounting, regardless of the stage's initial position, for fast implementation into optical systems.
Both X and XY configurations of these stages have the same minimum profile height of 1 in. to fit easily anywhere. Stainless steel actuator mounts are compatible with either manual or motorized actuators to accommodate your precision needs, sold with (-MIC models) or without actuators included.
| Compare | Description | Compatibility | Drawings, CAD & Specs | Avail. | Price | |||
|---|---|---|---|---|---|---|---|---|
 |
SM-13 Vernier Micrometer, 13 mm Travel, 9 lb. Load Capacity, 50.8 TPI | UNIVERSAL |
In Stock
|
$103.00 |
|
|||
 |
AJS100-0.5K Adjustment Screw, 100 TPI, 12.7 mm Travel, Large Knob, Side Lock | UNIVERSAL |
In Stock
|
$39.00 |
|
|||
 |
436 Manual Linear Stage, Crossed-Roller Bearings, 2.0 in. Travel, 1/4-20 | IMPERIAL |
In Stock
|
$954.00 |
|
|||
 |
PS-KF Kinematic Flip Base, Threaded 8-32 Mounting | IMPERIAL |
3 Weeks
|
$151.00 |
|
| Compare | Description | Compatibility | Drawings, CAD & Specs | Avail. | Price | |||
|---|---|---|---|---|---|---|---|---|
 |
460P-X-05 X Linear Stage, Peg-Joining, 0.5 in. Travel, 8-32 and 1/4-20 Threads | IMPERIAL |
In Stock
|
$401.00 |
|
|||
 |
460P-X X Linear Stage, Peg-Joining, 1.0 in. Travel, 8-32 and 1/4-20 Threads | IMPERIAL |
In Stock
|
$428.00 |
|
|||
 |
423 Linear Stage, High-Performance, Low-Profile, 1.0 in. Travel, 1/4-20 | IMPERIAL |
In Stock
|
$348.00 |
|
|||
 |
TSX-1D Dovetail Linear Stage, 1.0 in. Travel, Fast-drive 20 TPI Screw, 1/4-20 Threads | IMPERIAL |
In Stock
|
$227.00 |
|
|||
 |
443 Linear Stage, High-Performance, Low-Profile, 2.0 in. Travel, 1/4-20 | IMPERIAL |
In Stock
|
$452.00 |
|
| Compare | Description | Compatibility | Drawings, CAD & Specs | Avail. | Price | |||
|---|---|---|---|---|---|---|---|---|
| |
SM-13 Vernier Micrometer, 13 mm Travel, 9 lb. Load Capacity, 50.8 TPI | UNIVERSAL |
In Stock
|
$103.00 |
|
|||
 |
HR-13 Micrometer Head, High Resolution, 0.5 µm Sensitivity, 13 mm Travel | UNIVERSAL |
In Stock
|
$229.00 |
|
|||
 |
DM-13 Differential Micrometer Head, 13.0 mm Coarse, 0.2 mm Fine, 5 lb. Load | UNIVERSAL |
In Stock
|
$680.00 |
|
|||
| |
AJS100-0.5K Adjustment Screw, 100 TPI, 12.7 mm Travel, Large Knob, Side Lock | UNIVERSAL |
In Stock
|
$39.00 |
|
|||
 |
TRA12CC Motorized Actuator, Miniature, 12 mm Travel, DC Servo motor | UNIVERSAL |
In Stock
|
$1,065.00 |
|
|||
| |
TRA12PPD Motorized Actuator, Miniature, 12 mm Travel, Stepper, 25-pin D-Sub | UNIVERSAL |
In Stock
|
$1,065.00 |
|
