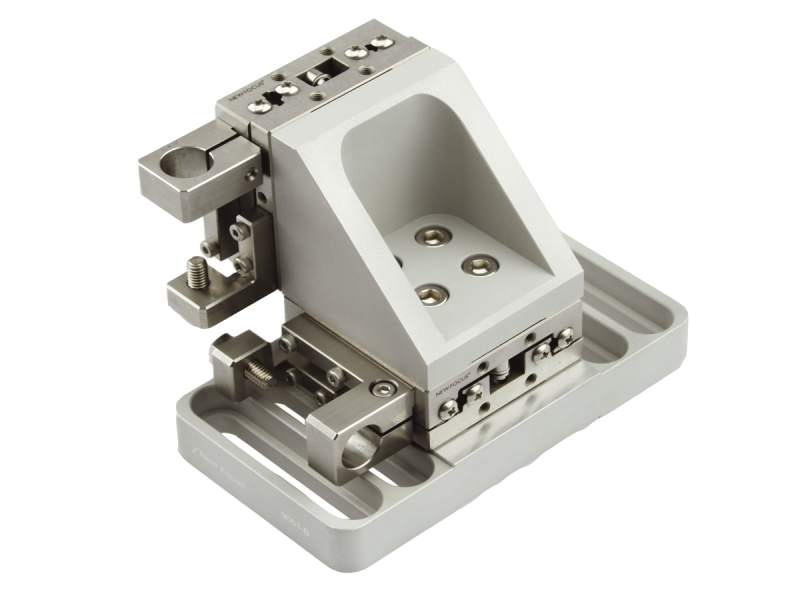

The 9062-XZ Gothic-Arch XZ Translation Stage uses stainless-steel construction and thumbscrew locks to offer the ultimate in stability and rigidity. Gothic-arch bearings offer the smooth motion of ball bearings but high stiffness and repeatability over the 12.7 mm XZ travel range. The 40 x 40 mm platform features 8-32 and 1/4-20 mounting holes. The unique gothic profile provides four points of contact (rather than two) so that the load and momentum are more evenly distributed. Side-mounted micrometer clamps minimize the overall footprint. These stages are compatible with our goniometers and rotation stages. NOTE: Actuators are not included with these stages. Please see specifications for recommended actuators.
The unique bearing design of these Gothic Series translation stages offer the ultimate stability in temperature-fluctuating environment. Unlike the multicomponent design of standard stages, which can loose their preload properties over time, Gothic Series bearing ways are machined directly out of the stage platform.
The gothic arch contact profile for the stainless steel ball bearings offers increased contact area to reduce bearing stresses, making the stage able to carry higher loads and more resistant to bearing-way damage.
All Gothic series stages have side-mounted actuator clamps, minimizing the final footprint while maintaining a low profile height. These stages can also be stacked for multi-axis translation and include a side-mounted locking mechanism for each axis. Shown is 9062-COM with micrometer.
The actuator mounts on the Gothic Series stages can be easily reconfigured for left-handed operation. The micrometer block is relocated where the push block is and vise versa. The video shows a micrometer reconfiguration of the 9062-COM stage.
| Compare | Description | Compatibility | Drawings, CAD & Specs | Avail. | Price | |||
|---|---|---|---|---|---|---|---|---|
 |
BB-M Optical Beam Block, Tool Holder, Magnetic-Base, Medium | UNIVERSAL |
In Stock
|
$36.00 |
|
|||
 |
BDK-1 Ball Driver Allen Wrench Set, Includes 9 Ball drivers | IMPERIAL |
In Stock
|
$39.00 |
|
|||
 |
AW-1 Adaptor Washers, 1/4-20 (M6) to 8-32 (M4), Qty 10 | UNIVERSAL |
In Stock
|
$20.00 |
|
|||
 |
SK-A Socket Head Cap Screw Kit, Stainless Steel, 8-32 & 1/4-20, Qty 805 | UNIVERSAL |
In Stock
|
|
||||
 |
TA-M6Q20-10 Thread Adaptor, M6 Male to 1/4-20 Male, pack of 10 | UNIVERSAL |
In Stock
|
$42.00 |
|
| Compare | Description | Compatibility | Drawings, CAD & Specs | Avail. | Price | |||
|---|---|---|---|---|---|---|---|---|
 |
9062-A Angle Bracket, 9062 Series Stages, XZ and XYZ Configurations | IMPERIAL |
In Stock
|
$97.00 |
|
|||
 |
9062-COM Manual Linear Stage, Gothic-Arch Bearings, 12.7 mm, 8-32 & 1/4-20, No Baseplate | IMPERIAL |
In Stock
|
$434.00 |
|
|||
 |
9062-X Manual Linear Stage, Gothic-Arch Bearings, 12.7 mm Travel, 8-32 & 1/4-20 | IMPERIAL |
In Stock
|
$507.00 |
|
|||
 |
9062-XYZ XYZ Linear Stage, Gothic-Arch Bearings, 12.7 mm Travel, 8-32 & 1/4-20 | IMPERIAL |
In Stock
|
$1,423.00 |
|
| Compare | Description | Compatibility | Drawings, CAD & Specs | Avail. | Price | |||
|---|---|---|---|---|---|---|---|---|
 |
B-2B Adaptor Plate, 25x25 or 40x40 mm Stage to Optical Table or 65x65 mm Stage | IMPERIAL |
In Stock
|
$48.00 |
|
|||
 |
RS40 Rotation Stage, 1.57 in. Diameter, 10° Fine, BM11.5, 6-32 and 1/4-20 | IMPERIAL |
In Stock
|
$511.00 |
|
|||
 |
9355 Micrometer, 0.5 in. Travel, Unthreaded, For 9062 Series Stages | UNIVERSAL |
In Stock
|
$137.00 |
|
|||
 |
9367 Adjustment Screw, Knob, Braked, 12.7 mm Travel, Ball Tip, 1/4-100 | UNIVERSAL |
In Stock
|
$55.00 |
|
|||
 |
HR-13 Micrometer Head, High Resolution, 0.5 µm Sensitivity, 13 mm Travel | UNIVERSAL |
In Stock
|
$229.00 |
|
