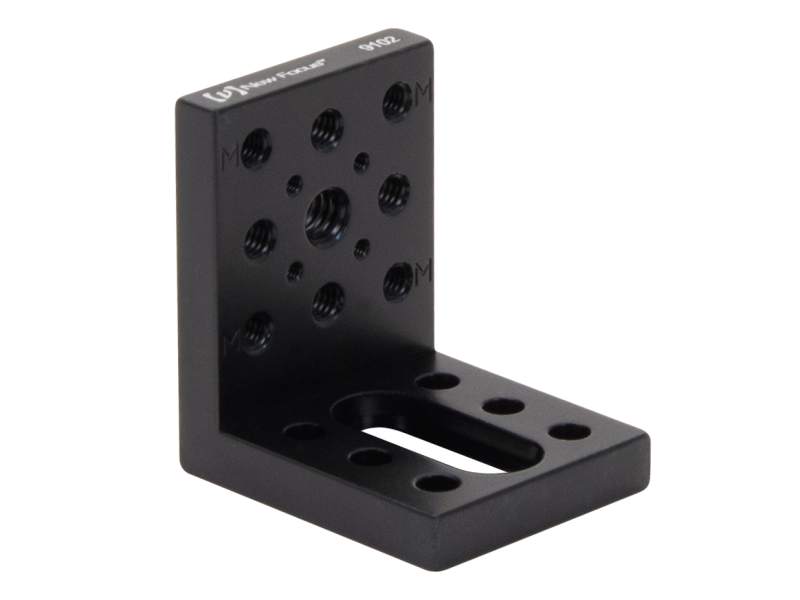

The 9102NF Small Angle Plate is designed to make quick, convenient setups on the optical table. The black anodized, machined aluminum has threaded and clearance holes for 8-32 (M4) and 1/4-20 (M6) standard fasteners. Four 2-56 threaded holes allow mounting of our tiny mirror mounts. The small angle plate is compatible with both Imperial and metric fasteners.
904190 Degree Angle Bracket, 9066 Series Stages, 8-32 and 1/4-20
IMPERIAL
In Stock
$137.00
360-30Angle Bracket, 30°/60°, 1/4-20 (M6) Slots, 1 in. Spacing
UNIVERSAL
In Stock
$153.00
360-90Angle Bracket, 90°, 1/4-20 (M6) Slots, 1 in. Spacing
IMPERIAL
In Stock
$103.00
9102NF - Drawings & CAD
Additional CAD file downloads are not available for this product.
9102NF - Drawings
Additional drawings are not available for this product.
