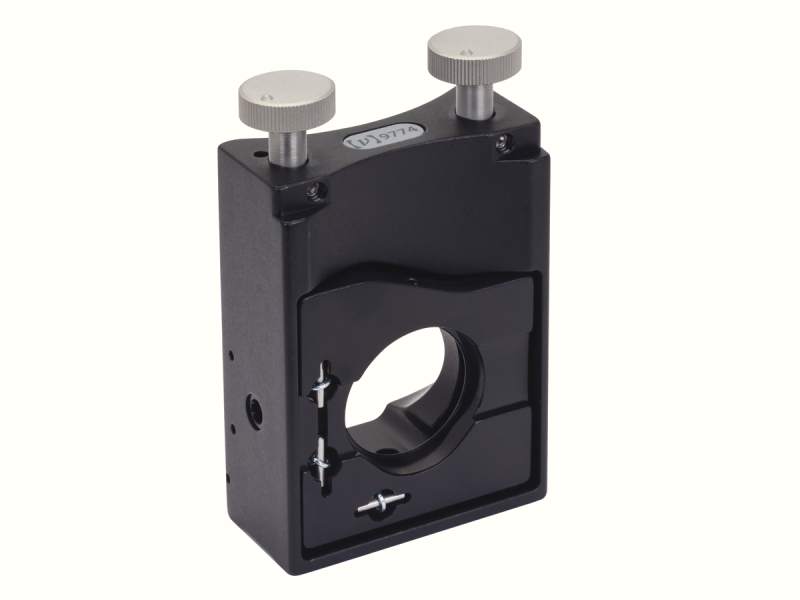

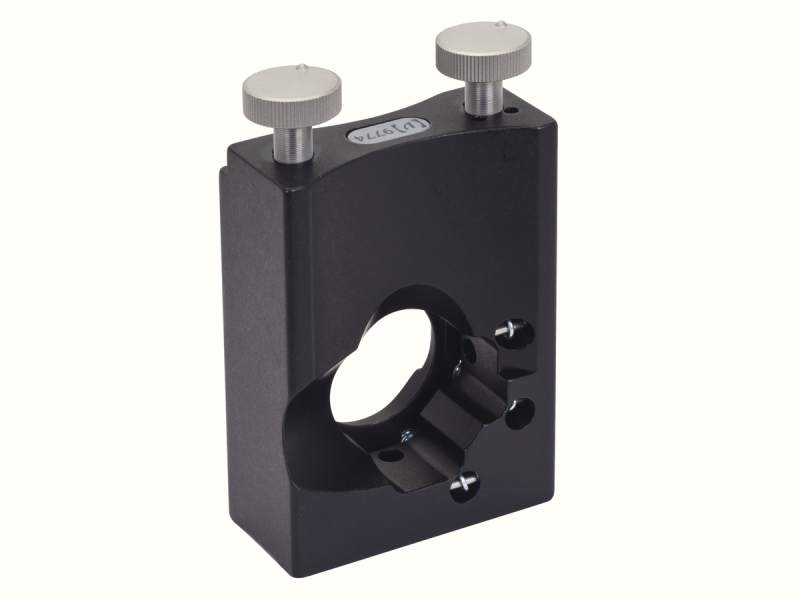

The 9774 Top Actuated Mirror Mount holds 1.0 in. (25.4 mm) diameter optics, and is ideal for use in compact spaces. It gives you easy access to both tip and tilt adjustments from the knobs on top without worrying about blocking the beam. Top and side mounting schemes are compatible with post and pedestal mounting systems. Relieved bases and thick frames ensure stability, while standard beam heights allow for easy integration into your system. Built-in locks and stiff springs increase long-term stability.
M-SA2-04X06Optical Breadboard Plate, Solid Aluminum, 100 x 150 mm, 25 mm M6 Grid
METRIC
2 Weeks
$57.00
BB-LOptical Beam Block, Tool Holder, Magnetic-Base, Large
UNIVERSAL
In Stock
$43.00
SA2-11-DOptical Breadboard Plate, Solid Aluminum, 12 x 12 in., 1/4-20, Double Density
IMPERIAL
In Stock
$305.00
10CV00SR.30FConcave Super Mirror, High Finesse, Ultra-Low Loss, 25.4 mm, 583-663 nm
UNIVERSAL
In Stock
$1,447.00
PS-2-PKOptical Pedestal Pack, 2.0 in. Height, 1.0 in. Diameter, 8-32, Qty 10
IMPERIAL
1 Week
$276.00
10Q20BB.HR2Dielectric Mirror, High Reflector, 25.4 mm, 0-50°, 350-1100 nm, 20-10
UNIVERSAL
In Stock
$198.00
9774 - Drawings & CAD
Additional CAD file downloads are not available for this product.
9774 - Drawings
Additional drawings are not available for this product.
