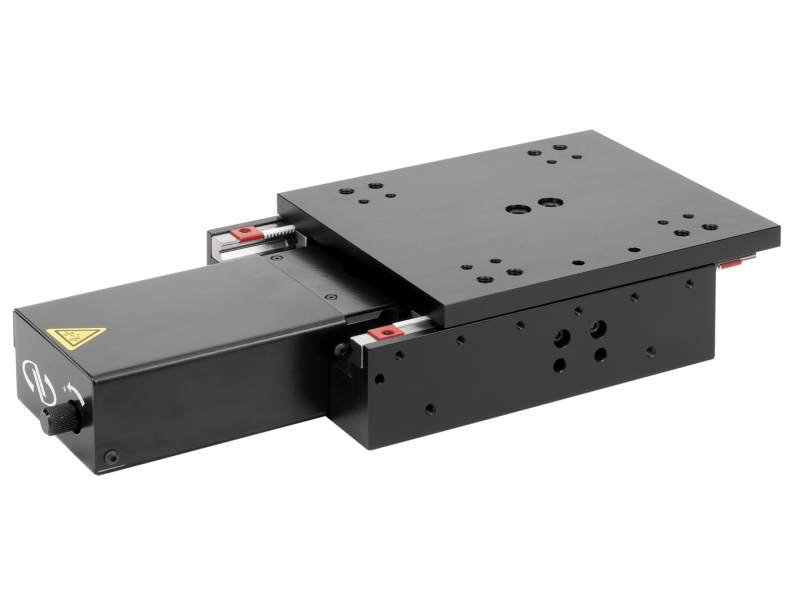

Motorized Linear Stage, 70 mm Travel, High Torque DC Motor, M4 and M6
  • Travel Range
    70 mm
  • Maximum Speed
    50 mm/s
  • Minimum Incremental Motion
    100 nm
  • Centered Load Capacity
    100 N
  • Axial Load Capacity (+Cx)
    25 N
  • Inverse Axial Load Capacity (-Cx)
    -25 N
  • Accuracy, Typical
    ±0.3 µm
  • Accuracy, Guaranteed
    ±1.0 µm
  • Bi-directional Repeatability, Typical
    ±0.06 µm
  • Bi-directional Repeatability, Guaranteed
    ±0.10 µm
  • Flatness Typical (Guaranteed)
    ±0.25 (±0.50) µm
  • Straightness Typical (Guaranteed)
    ±0.25 (±0.50) µm
  • Pitch, Typical
    ±15 µrad
  • Pitch, Guaranteed
    ±30 µrad
  • Compliance in Pitch
    10 µrad/Nm
  • Yaw, Typical
    ±15 µrad
  • Yaw, Guaranteed
    ±30 µrad
  • Compliance in Yaw
    10 µrad/Nm
  • Compliance in Roll
    10 µrad/Nm
  • Drive Type
    High Torque DC Motor
  • Origin Repeatability
    ±0.05 µm
  • Cable Length
    3 m
  • Thread Type
    M4 and M6
  • Weight
    2.7 kg
  • MTBF
    20,000 h (25% load, 30% duty cycle)
  • Maximum Power Consumption
    25 W
  • Compliance
    RoHS 3, CE
