Fluorescence Optical Filter Set, Alexa Fluor 430

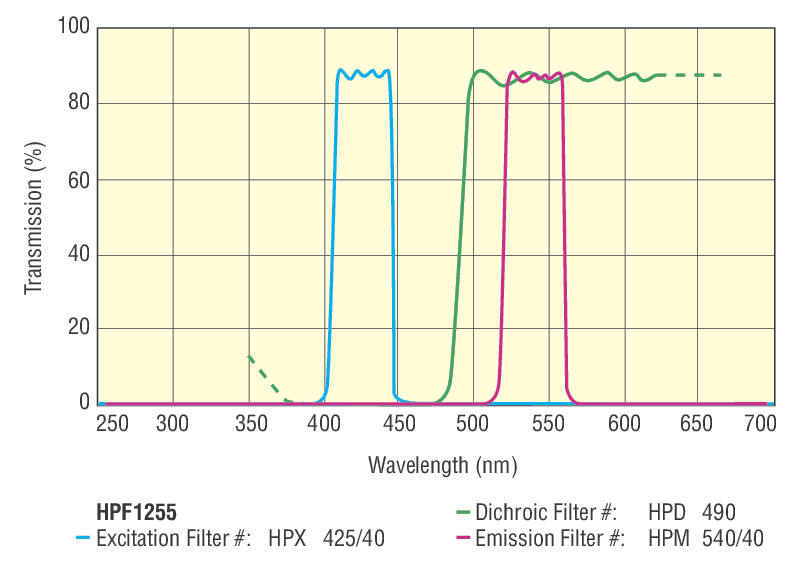

The HPF1255 HPF™ filter set includes HPX425-40

Excitation Filter, HPD490

Model: HPD490

Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 520-570 nm Trans.

$254.00

In Stock

Loading...

Add to Cart

See Full Product Details

Product Series Overview

Fluorescence Longpass Dichroic Filters

Dichroic Filter, and HPM540-40

Model: HPM540-40

Bandpass Filter, Fluorescence, 25.0 mm, 540 nm Center, 40 nm Bandwidth

$306.00

In Stock

Loading...

Add to Cart

See Full Product Details

Product Series Overview

Fluorescence Emission Bandpass Filters

Emission Filter. It is ideal to use with Alexa Fluor 430 fluorophores. HPF™ filters are manufactured using our patented Stabilife^® coating technology which provides excellent spectral performance, spectral stability, and physical durability. These filter sets are designed to provide maximum performance using several key features including:

• Exceptionally high passband transmission
• Maximized out-of-band blocking including extended range blocking on excitation filters
• Extremely steep slopes from rejection to transmission regions
• Optical finishing for maximum image rendition including precision grinding and polishing and anti-reflection coatings
• Filter bandpass specifications of center wavelength and bandwidth providing maximum image brightness and minimum background.

These product designs have served as the starting point for custom designed filters for market leading instruments including DNA Sequencers, Cytometers, MicroPlate Readers, In vivo Imagers, and Thermocyclers.
