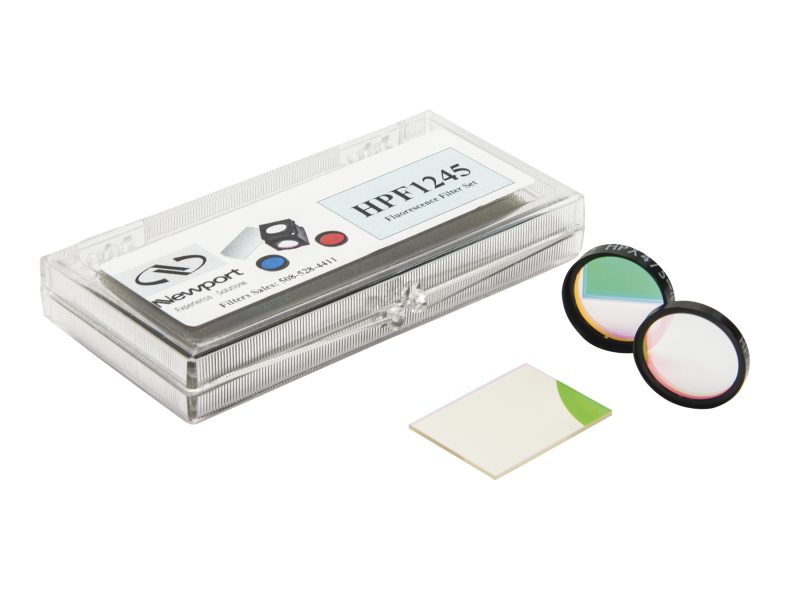

HPF™ Fluorescence Imaging Optical Filter Sets

Compare	Model	Fluorophores	Availability	Price	Brand
HPF1200 Fluorescence Optical Filter Set, Hoechst 33342 and 33258 Flourophores $775.00 In Stock	HPF1200 Fluorescence Optical Filter Set, Hoechst 33342 and 33258 Flourophores	Hoechst 33342, Hoechst 33258	In Stock	$775.00	Newport
HPF1205 Fluorescence Optical Filter Set, Alexa Fluor 350, AMCA, DAPI $540.00 In Stock	HPF1205 Fluorescence Optical Filter Set, Alexa Fluor 350, AMCA, DAPI	Alexa Fluor 350, AMCA, DAPI	In Stock	$540.00	Newport
HPF1210 Fluorescence Optical Filter Set, LysoSensor™ Blue (pH 5) $775.00 In Stock	HPF1210 Fluorescence Optical Filter Set, LysoSensor™ Blue (pH 5)	LysoSensor™ Blue (pH 5)	In Stock	$775.00	Newport
HPF1215 Fluorescence Optical Filter Set, Pacific Blue™ $540.00 2 Weeks	HPF1215 Fluorescence Optical Filter Set, Pacific Blue™	Pacific Blue™	2 Weeks	$540.00	Newport
HPF1220 Fluorescence Optical Filter Set, CFP $540.00 2 Weeks	HPF1220 Fluorescence Optical Filter Set, CFP	CFP	2 Weeks	$540.00	Newport
HPF1225 Fluorescence Optical Filter Set, GFP (wt) $775.00 In Stock	HPF1225 Fluorescence Optical Filter Set, GFP (wt)	GFP(wt)	In Stock	$775.00	Newport
HPF1230 Fluorescence Optical Filter Set, 6-JOE $540.00 In Stock	HPF1230 Fluorescence Optical Filter Set, 6-JOE	6-JOE	In Stock	$540.00	Newport
HPF1235 Fluorescence Optical Filter Set, Rhodamine Green , YGFP $775.00 In Stock	HPF1235 Fluorescence Optical Filter Set, Rhodamine Green , YGFP	Rhodamine Green , YGFP	In Stock	$775.00	Newport
HPF1240 Fluorescence Optical Filter Set, GFP $540.00 In Stock	HPF1240 Fluorescence Optical Filter Set, GFP	GFP	In Stock	$540.00	Newport
HPF1245 Fluorescence Optical Filter Set, 5-FAM, Alexa Fluor 488 $540.00 2 Weeks	HPF1245 Fluorescence Optical Filter Set, 5-FAM, Alexa Fluor 488	5-FAM, Alexa Fluor 488	2 Weeks	$540.00	Newport

Features

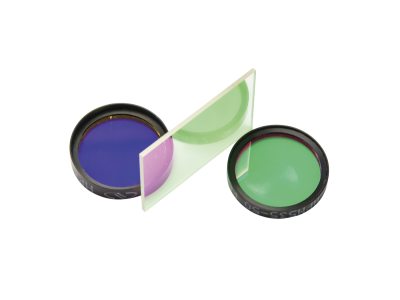

Filter Sets for Fluorescence Microscopy

HPF™ filter sets for fluorescence detection are a compilation of filter designs developed to be used with many of the most popular standard fluorophores and some of the most promising new fluorophores. These product designs have served as the starting point for custom designed filters for market leading instruments including DNA Sequencers, Cytometers, MicroPlate Readers, In vivo Imagers, and Thermocyclers. HPF™ filters are manufactured using our patented Stabilife^® coating technology which provides excellent spectral performance, spectral stability, and physical durability.

HPF™ Fluorophore Filter Reference

Fluorophore	FilterSet	Excitation Filter	Dichroic Filter	Emission Filter
5-FAM	HPF1245	HPX475-44 Model: HPX475-44 Bandpass Filter, Fluorescence, 25.0 mm, 475 nm Center, 44 nm Bandwidth $150.00 In Stock See Full Product Details Product Series Overview Fluorescence Excitation Bandpass Filters	HPD505 Model: HPD505 Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 512-570 nm Trans. $195.00 In Stock See Full Product Details Product Series Overview Fluorescence Longpass Dichroic Filters	HPM535-50 Model: HPM535-50 Bandpass Filter, Fluorescence, 25.0 mm, 535 nm Center, 50 nm Bandwidth $195.00 4 Weeks See Full Product Details Product Series Overview Fluorescence Emission Bandpass Filters
5-ROX	HPF1340	HPX560-50 Model: HPX560-50 Bandpass Filter, Fluorescence, 25.0 mm, 560 nm Center, 50 nm Bandwidth $150.00 In Stock See Full Product Details Product Series Overview Fluorescence Excitation Bandpass Filters	HPD590 Model: HPD590 Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 612-675 nm Trans. $195.00 In Stock See Full Product Details Product Series Overview Fluorescence Longpass Dichroic Filters	HPM640-60 Model: HPM640-60 Bandpass Filter, Fluorescence, 25.0 mm, 640 nm Center, 60 nm Bandwidth $195.00 In Stock See Full Product Details Product Series Overview Fluorescence Emission Bandpass Filters
5-TAMRA	HPF1335	HPX525-45 Model: HPX525-45 Bandpass Filter, Fluorescence, 25.0 mm, 525 nm Center, 45 nm Bandwidth $150.00 In Stock See Full Product Details Product Series Overview Fluorescence Excitation Bandpass Filters	HPD560 Model: HPD560 Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 575-650 nm Trans. In Stock See Full Product Details Product Series Overview Fluorescence Longpass Dichroic Filters	HPM620-75 Model: HPM620-75 Bandpass Filter, Fluorescence, 25.0 mm, 620 nm Center, 75 nm Bandwidth $306.00 In Stock See Full Product Details Product Series Overview Fluorescence Emission Bandpass Filters
6-HEX	HPF1295	HPX520-40 Model: HPX520-40 Bandpass Filter, Fluorescence, 25.0 mm, 520 nm Center, 40 nm Bandwidth $150.00 In Stock See Full Product Details Product Series Overview Fluorescence Excitation Bandpass Filters	HPD550 Model: HPD550 Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 567-620 nm Trans. $195.00 In Stock See Full Product Details Product Series Overview Fluorescence Longpass Dichroic Filters	HPM590-55 Model: HPM590-55 Bandpass Filter, Fluorescence, 25.0 mm, 590 nm Center, 55 nm Bandwidth $195.00 In Stock See Full Product Details Product Series Overview Fluorescence Emission Bandpass Filters
6-JOE	HPF1230	HPX500-20 Model: HPX500-20 Bandpass Filter, Fluorescence, 25.0 mm, 500 nm Center, 20 nm Bandwidth $150.00 In Stock See Full Product Details Product Series Overview Fluorescence Excitation Bandpass Filters	HPD515 Model: HPD515 Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 520-565 nm Trans. $195.00 In Stock See Full Product Details Product Series Overview Fluorescence Longpass Dichroic Filters	HPM530-LP Model: HPM530-LP Longpass Filter, Fluorescence, 25.0 mm, 535 nm Cut-On, 540-750 nm Transmission $195.00 In Stock See Full Product Details Product Series Overview Fluorescence Emission Bandpass Filters
6-TET	HPF1280	HPX500-40 Model: HPX500-40 Bandpass Filter, Fluorescence, 25.0 mm, 500 nm Center, 40 nm Bandwidth $306.00 In Stock See Full Product Details Product Series Overview Fluorescence Excitation Bandpass Filters	HPD530 Model: HPD530 Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 537-610 nm Trans. $254.00 In Stock See Full Product Details Product Series Overview Fluorescence Longpass Dichroic Filters	HPM575-50 Model: HPM575-50 Bandpass Filter, Fluorescence, 25.0 mm, 575 nm Center, 50 nm Bandwidth $195.00 In Stock See Full Product Details Product Series Overview Fluorescence Emission Bandpass Filters
Alexa Fluor 350	HPF1205	HPX360-60 Model: HPX360-60 Bandpass Filter, Fluorescence, 25.0 mm, 360 nm Center, 60 nm Bandwidth $150.00 In Stock See Full Product Details Product Series Overview Fluorescence Excitation Bandpass Filters	HPD400 Model: HPD400 Fluorescence Dichroic Filter, 25.5 x 36 mm, 425-515 nm Trans. $195.00 In Stock See Full Product Details Product Series Overview Fluorescence Longpass Dichroic Filters	HPM460-60 Model: HPM460-60 Bandpass Filter, Fluorescence, 25.0 mm, 460 nm Center, 60 nm Bandwidth $195.00 4 Weeks See Full Product Details Product Series Overview Fluorescence Emission Bandpass Filters
Alexa Fluor 430	HPF1255	HPX425-40 Model: HPX425-40 Bandpass Filter, Fluorescence, 25.0 mm, 425 nm Center, 40 nm Bandwidth $306.00 In Stock See Full Product Details Product Series Overview Fluorescence Excitation Bandpass Filters	HPD490 Model: HPD490 Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 520-570 nm Trans. $254.00 In Stock See Full Product Details Product Series Overview Fluorescence Longpass Dichroic Filters	HPM540-40 Model: HPM540-40 Bandpass Filter, Fluorescence, 25.0 mm, 540 nm Center, 40 nm Bandwidth $306.00 In Stock See Full Product Details Product Series Overview Fluorescence Emission Bandpass Filters
Alexa Fluor 488	HPF1245	HPX475-44 Model: HPX475-44 Bandpass Filter, Fluorescence, 25.0 mm, 475 nm Center, 44 nm Bandwidth $150.00 In Stock See Full Product Details Product Series Overview Fluorescence Excitation Bandpass Filters	HPD505 Model: HPD505 Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 512-570 nm Trans. $195.00 In Stock See Full Product Details Product Series Overview Fluorescence Longpass Dichroic Filters	HPM535-50 Model: HPM535-50 Bandpass Filter, Fluorescence, 25.0 mm, 535 nm Center, 50 nm Bandwidth $195.00 4 Weeks See Full Product Details Product Series Overview Fluorescence Emission Bandpass Filters
Alexa Fluor 532	HPF1275	HPX500-40 Model: HPX500-40 Bandpass Filter, Fluorescence, 25.0 mm, 500 nm Center, 40 nm Bandwidth $306.00 In Stock See Full Product Details Product Series Overview Fluorescence Excitation Bandpass Filters	HPD530 Model: HPD530 Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 537-610 nm Trans. $254.00 In Stock See Full Product Details Product Series Overview Fluorescence Longpass Dichroic Filters	HPM560-50 Model: HPM560-50 Bandpass Filter, Fluorescence, 25.0 mm, 560 nm Center, 50 nm Bandwidth $306.00 In Stock See Full Product Details Product Series Overview Fluorescence Emission Bandpass Filters
Alexa Fluor 546	HPF1300	HPX525-45 Model: HPX525-45 Bandpass Filter, Fluorescence, 25.0 mm, 525 nm Center, 45 nm Bandwidth $150.00 In Stock See Full Product Details Product Series Overview Fluorescence Excitation Bandpass Filters	HPD560 Model: HPD560 Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 575-650 nm Trans. In Stock See Full Product Details Product Series Overview Fluorescence Longpass Dichroic Filters	HPM600-60 Model: HPM600-60 Bandpass Filter, Fluorescence, 25.0 mm, 600 nm Center, 60 nm Bandwidth $195.00 4 Weeks See Full Product Details Product Series Overview Fluorescence Emission Bandpass Filters
Alexa Fluor 555	HPF1300	HPX525-45 Model: HPX525-45 Bandpass Filter, Fluorescence, 25.0 mm, 525 nm Center, 45 nm Bandwidth $150.00 In Stock See Full Product Details Product Series Overview Fluorescence Excitation Bandpass Filters	HPD560 Model: HPD560 Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 575-650 nm Trans. In Stock See Full Product Details Product Series Overview Fluorescence Longpass Dichroic Filters	HPM600-60 Model: HPM600-60 Bandpass Filter, Fluorescence, 25.0 mm, 600 nm Center, 60 nm Bandwidth $195.00 4 Weeks See Full Product Details Product Series Overview Fluorescence Emission Bandpass Filters
Alexa Fluor 568	HPF1345	HPX560-40 Model: HPX560-40 Bandpass Filter, Fluorescence, 25.0 mm, 560 nm Center, 40 nm Bandwidth $150.00 In Stock See Full Product Details Product Series Overview Fluorescence Excitation Bandpass Filters	HPD595 Model: HPD595 Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 608-700 nm Trans. $195.00 In Stock See Full Product Details Product Series Overview Fluorescence Longpass Dichroic Filters	HPM640-60 Model: HPM640-60 Bandpass Filter, Fluorescence, 25.0 mm, 640 nm Center, 60 nm Bandwidth $195.00 In Stock See Full Product Details Product Series Overview Fluorescence Emission Bandpass Filters
Alexa Fluor 594	HPF1345	HPX560-40 Model: HPX560-40 Bandpass Filter, Fluorescence, 25.0 mm, 560 nm Center, 40 nm Bandwidth $150.00 In Stock See Full Product Details Product Series Overview Fluorescence Excitation Bandpass Filters	HPD595 Model: HPD595 Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 608-700 nm Trans. $195.00 In Stock See Full Product Details Product Series Overview Fluorescence Longpass Dichroic Filters	HPM640-60 Model: HPM640-60 Bandpass Filter, Fluorescence, 25.0 mm, 640 nm Center, 60 nm Bandwidth $195.00 In Stock See Full Product Details Product Series Overview Fluorescence Emission Bandpass Filters
Alexa Fluor 633	HPF1385	HPX610-60 Model: HPX610-60 Bandpass Filter, Fluorescence, 25.0 mm, 610 nm Center, 60 nm Bandwidth $150.00 In Stock See Full Product Details Product Series Overview Fluorescence Excitation Bandpass Filters	HPD645 Model: HPD645 Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 620-720 nm Trans. $195.00 In Stock See Full Product Details Product Series Overview Fluorescence Longpass Dichroic Filters	HHPM685-50 Model: HPM685-50 Bandpass Filter, Fluorescence, 25.0 mm, 685 nm Center, 50 nm Bandwidth $195.00 In Stock See Full Product Details Product Series Overview Fluorescence Emission Bandpass Filters
Alexa Fluor 647	HPF1400	HPX620-50 Model: HPX620-50 Bandpass Filter, Fluorescence, 25.0 mm, 620 nm Center, 50 nm Bandwidth $150.00 In Stock See Full Product Details Product Series Overview Fluorescence Excitation Bandpass Filters	HPD660 Model: HPD660 Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 673-740 nm Trans. $195.00 In Stock See Full Product Details Product Series Overview Fluorescence Longpass Dichroic Filters	HPM700-60 Model: HPM700-60 Bandpass Filter, Fluorescence, 25.0 mm, 700 nm Center, 60 nm Bandwidth $195.00 In Stock See Full Product Details Product Series Overview Fluorescence Emission Bandpass Filters
Alexa Fluor 660	HPF1410	HPX630-60 Model: HPX630-60 Bandpass Filter, Fluorescence, 25.0 mm, 630 nm Center, 60 nm Bandwidth $306.00 In Stock See Full Product Details Product Series Overview Fluorescence Excitation Bandpass Filters	HPD680 Model: HPD680 Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 692-760 nm Trans. $254.00 In Stock See Full Product Details Product Series Overview Fluorescence Longpass Dichroic Filters	HPM720-60 Model: HPM720-60 Bandpass Filter, Fluorescence, 25.0 mm, 720 nm Center, 60 nm Bandwidth $306.00 In Stock See Full Product Details Product Series Overview Fluorescence Emission Bandpass Filters
Alexa Fluor 680	HPF1415	HPX660-40 Model: HPX660-40 Bandpass Filter, Fluorescence, 25.0 mm, 660 nm Center, 40 nm Bandwidth $306.00 In Stock See Full Product Details Product Series Overview Fluorescence Excitation Bandpass Filters	HPD695 Model: HPD695 Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 705-780 nm Trans. $254.00 In Stock See Full Product Details Product Series Overview Fluorescence Longpass Dichroic Filters	HPM725-40 Model: HPM725-40 Bandpass Filter, Fluorescence, 25.0 mm, 725 nm Center, 40 nm Bandwidth $306.00 In Stock See Full Product Details Product Series Overview Fluorescence Emission Bandpass Filters
Alexa Fluor 700	HPF1420	HPX660-40 Model: HPX660-40 Bandpass Filter, Fluorescence, 25.0 mm, 660 nm Center, 40 nm Bandwidth $306.00 In Stock See Full Product Details Product Series Overview Fluorescence Excitation Bandpass Filters	HPD695 Model: HPD695 Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 705-780 nm Trans. $254.00 In Stock See Full Product Details Product Series Overview Fluorescence Longpass Dichroic Filters	HPM740-50 Model: HPM740-50 Bandpass Filter, Fluorescence, 25.0 mm, 740 nm Center, 50 nm Bandwidth $306.00 In Stock See Full Product Details Product Series Overview Fluorescence Emission Bandpass Filters
Alexa Fluor 750	HPF1430	HPX710-50 Model: HPX710-50 Bandpass Filter, Fluorescence, 25.0 mm, 710 nm Center, 50 nm Bandwidth $150.00 In Stock See Full Product Details Product Series Overview Fluorescence Excitation Bandpass Filters	HPD760 Model: HPD760 Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 765-860 nm Trans. $254.00 In Stock See Full Product Details Product Series Overview Fluorescence Longpass Dichroic Filters	HPM810-80 Model: HPM810-80 Bandpass Filter, Fluorescence, 25.0 mm, 810 nm Center, 80 nm Bandwidth $306.00 In Stock See Full Product Details Product Series Overview Fluorescence Emission Bandpass Filters
AMCA	HPF1205	HPX360-60 Model: HPX360-60 Bandpass Filter, Fluorescence, 25.0 mm, 360 nm Center, 60 nm Bandwidth $150.00 In Stock See Full Product Details Product Series Overview Fluorescence Excitation Bandpass Filters	HPD400 Model: HPD400 Fluorescence Dichroic Filter, 25.5 x 36 mm, 425-515 nm Trans. $195.00 In Stock See Full Product Details Product Series Overview Fluorescence Longpass Dichroic Filters	HPM460-60 Model: HPM460-60 Bandpass Filter, Fluorescence, 25.0 mm, 460 nm Center, 60 nm Bandwidth $195.00 4 Weeks See Full Product Details Product Series Overview Fluorescence Emission Bandpass Filters
BODIPY 630/650	HPF1380	HPX605-40 Model: HPX605-40 Bandpass Filter, Fluorescence, 25.0 mm, 605 nm Center, 40 nm Bandwidth $306.00 In Stock See Full Product Details Product Series Overview Fluorescence Excitation Bandpass Filters	HPD635 Model: HPD635 Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 647-710 nm Trans. $254.00 In Stock See Full Product Details Product Series Overview Fluorescence Longpass Dichroic Filters	HPM670-50 Model: HPM670-50 Bandpass Filter, Fluorescence, 25.0 mm, 670 nm Center, 50 nm Bandwidth $306.00 In Stock See Full Product Details Product Series Overview Fluorescence Emission Bandpass Filters
BODIPY 650/665	HPF1395	HPX630-40 Model: HPX630-40 Bandpass Filter, Fluorescence, 25.0 mm, 630 nm Center, 40 nm Bandwidth $306.00 In Stock See Full Product Details Product Series Overview Fluorescence Excitation Bandpass Filters	HPD660 Model: HPD660 Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 673-740 nm Trans. $195.00 In Stock See Full Product Details Product Series Overview Fluorescence Longpass Dichroic Filters	HPM695-50 Model: HPM695-50 Bandpass Filter, Fluorescence, 25.0 mm, 695 nm Center, 50 nm Bandwidth $306.00 In Stock See Full Product Details Product Series Overview Fluorescence Emission Bandpass Filters
BODIPY FL	HPF1250	HPX560-50 Model: HPX560-50 Bandpass Filter, Fluorescence, 25.0 mm, 560 nm Center, 50 nm Bandwidth $150.00 In Stock See Full Product Details Product Series Overview Fluorescence Excitation Bandpass Filters	HPD590 Model: HPD590 Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 612-675 nm Trans. $195.00 In Stock See Full Product Details Product Series Overview Fluorescence Longpass Dichroic Filters	HPM535-50 Model: HPM535-50 Bandpass Filter, Fluorescence, 25.0 mm, 535 nm Center, 50 nm Bandwidth $195.00 4 Weeks See Full Product Details Product Series Overview Fluorescence Emission Bandpass Filters
BODIPY R6G	HPF1285	HPX510-40 Model: HPX510-40 Bandpass Filter, Fluorescence, 25.0 mm, 510 nm Center, 40 nm Bandwidth $150.00 In Stock See Full Product Details Product Series Overview Fluorescence Excitation Bandpass Filters	HPD540 Model: HPD540 Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 550-615 nm Trans. $195.00 In Stock See Full Product Details Product Series Overview Fluorescence Longpass Dichroic Filters	HPM575-50 Model: HPM575-50 Bandpass Filter, Fluorescence, 25.0 mm, 575 nm Center, 50 nm Bandwidth $195.00 In Stock See Full Product Details Product Series Overview Fluorescence Emission Bandpass Filters
BODIPY TMR	HPF1305	HPX530-40 Model: HPX530-40 Bandpass Filter, Fluorescence, 25.0 mm, 530 nm Center, 40 nm Bandwidth $306.00 In Stock See Full Product Details Product Series Overview Fluorescence Excitation Bandpass Filters	HPD560 Model: HPD560 Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 575-650 nm Trans. In Stock See Full Product Details Product Series Overview Fluorescence Longpass Dichroic Filters	HPM600-60 Model: HPM600-60 Bandpass Filter, Fluorescence, 25.0 mm, 600 nm Center, 60 nm Bandwidth $195.00 4 Weeks See Full Product Details Product Series Overview Fluorescence Emission Bandpass Filters
BODIPY TR	HPF1355	HPX570-40 Model: HPX570-40 Bandpass Filter, Fluorescence, 25.0 mm, 570 nm Center, 40 nm Bandwidth $150.00 In Stock See Full Product Details Product Series Overview Fluorescence Excitation Bandpass Filters	HPD610 Model: HPD610 Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 619-680 nm Trans. $254.00 In Stock See Full Product Details Product Series Overview Fluorescence Longpass Dichroic Filters	HPM645-50 Model: HPM645-50 Bandpass Filter, Fluorescence, 25.0 mm, 645 nm Center, 50 nm Bandwidth $306.00 4 Weeks See Full Product Details Product Series Overview Fluorescence Emission Bandpass Filters
Calcium Crimson	HPF1365	HPX570-40 Model: HPX570-40 Bandpass Filter, Fluorescence, 25.0 mm, 570 nm Center, 40 nm Bandwidth $150.00 In Stock See Full Product Details Product Series Overview Fluorescence Excitation Bandpass Filters	HPD595 Model: HPD595 Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 608-700 nm Trans. $195.00 In Stock See Full Product Details Product Series Overview Fluorescence Longpass Dichroic Filters	HPM645-60 Model: HPM645-60 Bandpass Filter, Fluorescence, 25.0 mm, 645 nm Center, 60 nm Bandwidth $195.00 In Stock See Full Product Details Product Series Overview Fluorescence Emission Bandpass Filters
CFP	HPF1220	HPX440-20 Model: HPX440-20 Bandpass Filter, Fluorescence, 25.0 mm, 440 nm Center, 20 nm Bandwidth $150.00 In Stock See Full Product Details Product Series Overview Fluorescence Excitation Bandpass Filters	HPD455 Model: HPD455 Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 492-510 nm Trans. $195.00 In Stock See Full Product Details Product Series Overview Fluorescence Longpass Dichroic Filters	HPM480-40 Model: HPM480-40 Bandpass Filter, Fluorescence, 25.0 mm, 480 nm Center, 40 nm Bandwidth $195.00 4 Weeks See Full Product Details Product Series Overview Fluorescence Emission Bandpass Filters
Cy3.5™	HPF1325	HPX565-30 Model: HPX565-30 Bandpass Filter, Fluorescence, 25.0 mm, 565 nm Center, 30 nm Bandwidth $150.00 In Stock See Full Product Details Product Series Overview Fluorescence Excitation Bandpass Filters	HPD580 Model: HPD580 Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 592-660 nm Trans. $195.00 In Stock See Full Product Details Product Series Overview Fluorescence Longpass Dichroic Filters	HPM620-60 Model: HPM620-60 Bandpass Filter, Fluorescence, 25.0 mm, 620 nm Center, 60 nm Bandwidth $195.00 In Stock See Full Product Details Product Series Overview Fluorescence Emission Bandpass Filters
Cy3™	HPF1310	HPX535-40 Model: HPX535-40 Bandpass Filter, Fluorescence, 25.0 mm, 535 nm Center, 40 nm Bandwidth $150.00 In Stock See Full Product Details Product Series Overview Fluorescence Excitation Bandpass Filters	HPD565 Model: HPD565 Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 587-650 nm Trans. $195.00 In Stock See Full Product Details Product Series Overview Fluorescence Longpass Dichroic Filters	HPM610-50 Model: HPM610-50 Bandpass Filter, Fluorescence, 25.0 mm, 610 nm Center, 50 nm Bandwidth $195.00 In Stock See Full Product Details Product Series Overview Fluorescence Emission Bandpass Filters
Cy5.5™	HPF1405	HPX645-40 Model: HPX645-40 Bandpass Filter, Fluorescence, 25.0 mm, 645 nm Center, 40 nm Bandwidth $150.00 In Stock See Full Product Details Product Series Overview Fluorescence Excitation Bandpass Filters	HPD675 Model: HPD675 Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 686-745 nm Trans. $195.00 In Stock See Full Product Details Product Series Overview Fluorescence Longpass Dichroic Filters	HPM710-50 Model: HPM710-50 Bandpass Filter, Fluorescence, 25.0 mm, 710 nm Center, 50 nm Bandwidth $195.00 In Stock See Full Product Details Product Series Overview Fluorescence Emission Bandpass Filters
Cy5™	HPF1390	HPX620-50 Model: HPX620-50 Bandpass Filter, Fluorescence, 25.0 mm, 620 nm Center, 50 nm Bandwidth $150.00 In Stock See Full Product Details Product Series Overview Fluorescence Excitation Bandpass Filters	HPD655 Model: HPD655 Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 667-725 nm Trans. $195.00 4 Weeks See Full Product Details Product Series Overview Fluorescence Longpass Dichroic Filters	HPM690-50 Model: HPM690-50 Bandpass Filter, Fluorescence, 25.0 mm, 690 nm Center, 50 nm Bandwidth $195.00 In Stock See Full Product Details Product Series Overview Fluorescence Emission Bandpass Filters
Cy7™	HPF1425	HPX710-50 Model: HPX710-50 Bandpass Filter, Fluorescence, 25.0 mm, 710 nm Center, 50 nm Bandwidth $150.00 In Stock See Full Product Details Product Series Overview Fluorescence Excitation Bandpass Filters	HPD755 Model: HPD755 Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 765-860 nm Trans. $195.00 In Stock See Full Product Details Product Series Overview Fluorescence Longpass Dichroic Filters	HPM800-70 Model: HPM800-70 Bandpass Filter, Fluorescence, 25.0 mm, 800 nm Center, 70 nm Bandwidth $195.00 In Stock See Full Product Details Product Series Overview Fluorescence Emission Bandpass Filters
DAPI	HPF1205	HPX360-60 Model: HPX360-60 Bandpass Filter, Fluorescence, 25.0 mm, 360 nm Center, 60 nm Bandwidth $150.00 In Stock See Full Product Details Product Series Overview Fluorescence Excitation Bandpass Filters	HPD400 Model: HPD400 Fluorescence Dichroic Filter, 25.5 x 36 mm, 425-515 nm Trans. $195.00 In Stock See Full Product Details Product Series Overview Fluorescence Longpass Dichroic Filters	HPM460-60 Model: HPM460-60 Bandpass Filter, Fluorescence, 25.0 mm, 460 nm Center, 60 nm Bandwidth $195.00 4 Weeks See Full Product Details Product Series Overview Fluorescence Emission Bandpass Filters
Dil(rs)	HPF1315	HPX535-50 Model: HPX535-50 Bandpass Filter, Fluorescence, 25.0 mm, 535 nm Center, 50 nm Bandwidth $306.00 In Stock See Full Product Details Product Series Overview Fluorescence Excitation Bandpass Filters	HPD565 Model: HPD565 Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 587-650 nm Trans. $195.00 In Stock See Full Product Details Product Series Overview Fluorescence Longpass Dichroic Filters	HPM620-60 Model: HPM620-60 Bandpass Filter, Fluorescence, 25.0 mm, 620 nm Center, 60 nm Bandwidth $195.00 In Stock See Full Product Details Product Series Overview Fluorescence Emission Bandpass Filters
DiO	HPF1250	HPX480-40 Model: HPX480-40 Bandpass Filter, Fluorescence, 25.0 mm, 480 nm Center, 40 nm Bandwidth $150.00 In Stock See Full Product Details Product Series Overview Fluorescence Excitation Bandpass Filters	HPD505 Model: HPD505 Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 512-570 nm Trans. $195.00 In Stock See Full Product Details Product Series Overview Fluorescence Longpass Dichroic Filters	HPM535-50 Model: HPM535-50 Bandpass Filter, Fluorescence, 25.0 mm, 535 nm Center, 50 nm Bandwidth $195.00 4 Weeks See Full Product Details Product Series Overview Fluorescence Emission Bandpass Filters
DsRed	HPF1320	HPX545-30 Model: HPX545-30 Bandpass Filter, Fluorescence, 25.0 mm, 545 nm Center, 30 nm Bandwidth $306.00 In Stock See Full Product Details Product Series Overview Fluorescence Excitation Bandpass Filters	HPD570 Model: HPD570 Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 587-650 nm Trans. $254.00 In Stock See Full Product Details Product Series Overview Fluorescence Longpass Dichroic Filters	HPM620-60 Model: HPM620-60 Bandpass Filter, Fluorescence, 25.0 mm, 620 nm Center, 60 nm Bandwidth $195.00 In Stock See Full Product Details Product Series Overview Fluorescence Emission Bandpass Filters
Eosin	HPF1270	HPX500-40 Model: HPX500-40 Bandpass Filter, Fluorescence, 25.0 mm, 500 nm Center, 40 nm Bandwidth $306.00 In Stock See Full Product Details Product Series Overview Fluorescence Excitation Bandpass Filters	HPD525 Model: HPD525 Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 530-595 nm Trans. $195.00 In Stock See Full Product Details Product Series Overview Fluorescence Longpass Dichroic Filters	HPM560-50 Model: HPM560-50 Bandpass Filter, Fluorescence, 25.0 mm, 560 nm Center, 50 nm Bandwidth $306.00 In Stock See Full Product Details Product Series Overview Fluorescence Emission Bandpass Filters
Ethidium Bromide	HPF1350	HPX525-45 Model: HPX525-45 Bandpass Filter, Fluorescence, 25.0 mm, 525 nm Center, 45 nm Bandwidth $150.00 In Stock See Full Product Details Product Series Overview Fluorescence Excitation Bandpass Filters	HPD565 Model: HPD565 Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 587-650 nm Trans. $195.00 In Stock See Full Product Details Product Series Overview Fluorescence Longpass Dichroic Filters	HPM640-70 Model: HPM640-70 Bandpass Filter, Fluorescence, 25.0 mm, 640 nm Center, 70 nm Bandwidth $306.00 In Stock See Full Product Details Product Series Overview Fluorescence Emission Bandpass Filters
FITC	HPF1250	HPX480-40 Model: HPX480-40 Bandpass Filter, Fluorescence, 25.0 mm, 480 nm Center, 40 nm Bandwidth $150.00 In Stock See Full Product Details Product Series Overview Fluorescence Excitation Bandpass Filters	HPD505 Model: HPD505 Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 512-570 nm Trans. $195.00 In Stock See Full Product Details Product Series Overview Fluorescence Longpass Dichroic Filters	HPM535-50 Model: HPM535-50 Bandpass Filter, Fluorescence, 25.0 mm, 535 nm Center, 50 nm Bandwidth $195.00 4 Weeks See Full Product Details Product Series Overview Fluorescence Emission Bandpass Filters
Fluo 3	HPF1250	HPX480-40 Model: HPX480-40 Bandpass Filter, Fluorescence, 25.0 mm, 480 nm Center, 40 nm Bandwidth $150.00 In Stock See Full Product Details Product Series Overview Fluorescence Excitation Bandpass Filters	HPD505 Model: HPD505 Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 512-570 nm Trans. $195.00 In Stock See Full Product Details Product Series Overview Fluorescence Longpass Dichroic Filters	HPM535-50 Model: HPM535-50 Bandpass Filter, Fluorescence, 25.0 mm, 535 nm Center, 50 nm Bandwidth $195.00 4 Weeks See Full Product Details Product Series Overview Fluorescence Emission Bandpass Filters
Fluo 4	HPF1250	HPX480-40 Model: HPX480-40 Bandpass Filter, Fluorescence, 25.0 mm, 480 nm Center, 40 nm Bandwidth $150.00 In Stock See Full Product Details Product Series Overview Fluorescence Excitation Bandpass Filters	HPD505 Model: HPD505 Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 512-570 nm Trans. $195.00 In Stock See Full Product Details Product Series Overview Fluorescence Longpass Dichroic Filters	HPM535-50 Model: HPM535-50 Bandpass Filter, Fluorescence, 25.0 mm, 535 nm Center, 50 nm Bandwidth $195.00 4 Weeks See Full Product Details Product Series Overview Fluorescence Emission Bandpass Filters
GFP	HPF1240	HPX470-40 Model: HPX470-40 Bandpass Filter, Fluorescence, 25.0 mm, 470 nm Center, 40 nm Bandwidth $150.00 In Stock See Full Product Details Product Series Overview Fluorescence Excitation Bandpass Filters	HPD495 Model: HPD495 Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 512-570 nm Trans. $195.00 In Stock See Full Product Details Product Series Overview Fluorescence Longpass Dichroic Filters	HPM535-50 Model: HPM535-50 Bandpass Filter, Fluorescence, 25.0 mm, 535 nm Center, 50 nm Bandwidth $195.00 4 Weeks See Full Product Details Product Series Overview Fluorescence Emission Bandpass Filters
GFP(rs)	HPF1250	HPX480-40 Model: HPX480-40 Bandpass Filter, Fluorescence, 25.0 mm, 480 nm Center, 40 nm Bandwidth $150.00 In Stock See Full Product Details Product Series Overview Fluorescence Excitation Bandpass Filters	HPD505 Model: HPD505 Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 512-570 nm Trans. $195.00 In Stock See Full Product Details Product Series Overview Fluorescence Longpass Dichroic Filters	HPM535-50 Model: HPM535-50 Bandpass Filter, Fluorescence, 25.0 mm, 535 nm Center, 50 nm Bandwidth $195.00 4 Weeks See Full Product Details Product Series Overview Fluorescence Emission Bandpass Filters
GFP(wt)	HPF1225	HPX450-50 Model: HPX450-50 Bandpass Filter, Fluorescence, 25.0 mm, 450 nm Center, 50 nm Bandwidth $306.00 In Stock See Full Product Details Product Series Overview Fluorescence Excitation Bandpass Filters	HPD480 Model: HPD480 Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 487-545 nm Trans. $254.00 In Stock See Full Product Details Product Series Overview Fluorescence Longpass Dichroic Filters	HPM510-50 Model: HPM510-50 Bandpass Filter, Fluorescence, 25.0 mm, 510 nm Center, 50 nm Bandwidth $306.00 In Stock See Full Product Details Product Series Overview Fluorescence Emission Bandpass Filters
Hoechst 33342 & 33258	HPF1200	HPX350-60 Model: HPX350-60 Bandpass Filter, Fluorescence, 25.0 mm, 350 nm Center, 60 nm Bandwidth $306.00 In Stock See Full Product Details Product Series Overview Fluorescence Excitation Bandpass Filters	HPD400 Model: HPD400 Fluorescence Dichroic Filter, 25.5 x 36 mm, 425-515 nm Trans. $195.00 In Stock See Full Product Details Product Series Overview Fluorescence Longpass Dichroic Filters	HPM460-60 Model: HPM460-60 Bandpass Filter, Fluorescence, 25.0 mm, 460 nm Center, 60 nm Bandwidth $195.00 4 Weeks See Full Product Details Product Series Overview Fluorescence Emission Bandpass Filters
LysoSensor™ Blue (pH 5)	HPF1210	HPX380-40 Model: HPX380-40 Bandpass Filter, Fluorescence, 25.0 mm, 380 nm Center, 40 nm Bandwidth $306.00 In Stock See Full Product Details Product Series Overview Fluorescence Excitation Bandpass Filters	HPD410 Model: HPD410 Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 425-515 nm Trans. $254.00 In Stock See Full Product Details Product Series Overview Fluorescence Longpass Dichroic Filters	HPM460-60 Model: HPM460-60 Bandpass Filter, Fluorescence, 25.0 mm, 460 nm Center, 60 nm Bandwidth $195.00 4 Weeks See Full Product Details Product Series Overview Fluorescence Emission Bandpass Filters
MitoTracker Orange	HPF1335	HPX525-45 Model: HPX525-45 Bandpass Filter, Fluorescence, 25.0 mm, 525 nm Center, 45 nm Bandwidth $150.00 In Stock See Full Product Details Product Series Overview Fluorescence Excitation Bandpass Filters	HPD560 Model: HPD560 Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 575-650 nm Trans. In Stock See Full Product Details Product Series Overview Fluorescence Longpass Dichroic Filters	HPM620-75 Model: HPM620-75 Bandpass Filter, Fluorescence, 25.0 mm, 620 nm Center, 75 nm Bandwidth $306.00 In Stock See Full Product Details Product Series Overview Fluorescence Emission Bandpass Filters
MitoTracker Red	HPF1340	HPX560-50 Model: HPX560-50 Bandpass Filter, Fluorescence, 25.0 mm, 560 nm Center, 50 nm Bandwidth $150.00 In Stock See Full Product Details Product Series Overview Fluorescence Excitation Bandpass Filters	HPD590 Model: HPD590 Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 612-675 nm Trans. $195.00 In Stock See Full Product Details Product Series Overview Fluorescence Longpass Dichroic Filters	HPM640-60 Model: HPM640-60 Bandpass Filter, Fluorescence, 25.0 mm, 640 nm Center, 60 nm Bandwidth $195.00 In Stock See Full Product Details Product Series Overview Fluorescence Emission Bandpass Filters
Nile Red	HPF1360	HPX525-45 Model: HPX525-45 Bandpass Filter, Fluorescence, 25.0 mm, 525 nm Center, 45 nm Bandwidth $150.00 In Stock See Full Product Details Product Series Overview Fluorescence Excitation Bandpass Filters	HPD565 Model: HPD565 Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 587-650 nm Trans. $195.00 In Stock See Full Product Details Product Series Overview Fluorescence Longpass Dichroic Filters	HPM645-60 Model: HPM645-60 Bandpass Filter, Fluorescence, 25.0 mm, 645 nm Center, 60 nm Bandwidth $195.00 In Stock See Full Product Details Product Series Overview Fluorescence Emission Bandpass Filters
Oregon Green™	HPF1260	HPX485-30 Model: HPX485-30 Bandpass Filter, Fluorescence, 25.0 mm, 485 nm Center, 30 nm Bandwidth $306.00 In Stock See Full Product Details Product Series Overview Fluorescence Excitation Bandpass Filters	HPD515 Model: HPD515 Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 520-565 nm Trans. $195.00 In Stock See Full Product Details Product Series Overview Fluorescence Longpass Dichroic Filters	HPM545-30 Model: HPM545-30 Bandpass Filter, Fluorescence, 25.0 mm, 545 nm Center, 30 nm Bandwidth $306.00 In Stock See Full Product Details Product Series Overview Fluorescence Emission Bandpass Filters
Pacific Blue™	HPF1215	HPX400-30 Model: HPX400-30 Bandpass Filter, Fluorescence, 25.0 mm, 400 nm Center, 30 nm Bandwidth $150.00 In Stock See Full Product Details Product Series Overview Fluorescence Excitation Bandpass Filters	HPD440 Model: HPD440 Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 454-495 nm Trans. $195.00 In Stock See Full Product Details Product Series Overview Fluorescence Longpass Dichroic Filters	HPM470-30 Model: HPM470-30 Bandpass Filter, Fluorescence, 25.0 mm, 470 nm Center, 30 nm Bandwidth $195.00 In Stock See Full Product Details Product Series Overview Fluorescence Emission Bandpass Filters
PE (B,R)	HPF1290	HPX525-45 Model: HPX525-45 Bandpass Filter, Fluorescence, 25.0 mm, 525 nm Center, 45 nm Bandwidth $150.00 In Stock See Full Product Details Product Series Overview Fluorescence Excitation Bandpass Filters	HPD560 Model: HPD560 Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 575-650 nm Trans. In Stock See Full Product Details Product Series Overview Fluorescence Longpass Dichroic Filters	HPM585-40 Model: HPM585-40 Bandpass Filter, Fluorescence, 25.0 mm, 585 nm Center, 40 nm Bandwidth $195.00 In Stock See Full Product Details Product Series Overview Fluorescence Emission Bandpass Filters
Propidium Iodide	HPF1370	HPX525-45 Model: HPX525-45 Bandpass Filter, Fluorescence, 25.0 mm, 525 nm Center, 45 nm Bandwidth $150.00 In Stock See Full Product Details Product Series Overview Fluorescence Excitation Bandpass Filters	HPD565 Model: HPD565 Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 587-650 nm Trans. $195.00 In Stock See Full Product Details Product Series Overview Fluorescence Longpass Dichroic Filters	HPM645-75 Model: HPM645-75 Bandpass Filter, Fluorescence, 25.0 mm, 645 nm Center, 70 nm Bandwidth $195.00 In Stock See Full Product Details Product Series Overview Fluorescence Emission Bandpass Filters
Resorufin	HPF1375	HPX560-50 Model: HPX560-50 Bandpass Filter, Fluorescence, 25.0 mm, 560 nm Center, 50 nm Bandwidth $150.00 In Stock See Full Product Details Product Series Overview Fluorescence Excitation Bandpass Filters	HPD595 Model: HPD595 Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 608-700 nm Trans. $195.00 In Stock See Full Product Details Product Series Overview Fluorescence Longpass Dichroic Filters	HPM645-75 Model: HPM645-75 Bandpass Filter, Fluorescence, 25.0 mm, 645 nm Center, 70 nm Bandwidth $195.00 In Stock See Full Product Details Product Series Overview Fluorescence Emission Bandpass Filters
Rhodamine	HPF1330	HPX570-20 Model: HPX570-20 Bandpass Filter, Fluorescence, 25.0 mm, 570 nm Center, 20 nm Bandwidth $306.00 In Stock See Full Product Details Product Series Overview Fluorescence Excitation Bandpass Filters	HPD585 Model: HPD585 Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 592-660 nm Trans. $254.00 In Stock See Full Product Details Product Series Overview Fluorescence Longpass Dichroic Filters	HPM620-60 Model: HPM620-60 Bandpass Filter, Fluorescence, 25.0 mm, 620 nm Center, 60 nm Bandwidth $195.00 In Stock See Full Product Details Product Series Overview Fluorescence Emission Bandpass Filters
Rhodamine Green	HPF1235	HPX500-20 Model: HPX500-20 Bandpass Filter, Fluorescence, 25.0 mm, 500 nm Center, 20 nm Bandwidth $150.00 In Stock See Full Product Details Product Series Overview Fluorescence Excitation Bandpass Filters	HPD515 Model: HPD515 Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 520-565 nm Trans. $195.00 In Stock See Full Product Details Product Series Overview Fluorescence Longpass Dichroic Filters	HPM535-30 Model: HPM535-30 Bandpass Filter, Fluorescence, 25.0 mm, 535 nm Center, 30 nm Bandwidth $306.00 In Stock See Full Product Details Product Series Overview Fluorescence Emission Bandpass Filters
Texas Red	HPF1375	HPX525-45 Model: HPX525-45 Bandpass Filter, Fluorescence, 25.0 mm, 525 nm Center, 45 nm Bandwidth $150.00 In Stock See Full Product Details Product Series Overview Fluorescence Excitation Bandpass Filters	HPD590 Model: HPD595 Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 608-700 nm Trans. $195.00 In Stock See Full Product Details Product Series Overview Fluorescence Longpass Dichroic Filters	HPM645-75 Model: HPM645-75 Bandpass Filter, Fluorescence, 25.0 mm, 645 nm Center, 70 nm Bandwidth $195.00 In Stock See Full Product Details Product Series Overview Fluorescence Emission Bandpass Filters
TRITC	HPF1300	HPX525-45 Model: HPX525-45 Bandpass Filter, Fluorescence, 25.0 mm, 525 nm Center, 45 nm Bandwidth $150.00 In Stock See Full Product Details Product Series Overview Fluorescence Excitation Bandpass Filters	HPD560 Model: HPD560 Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 575-650 nm Trans. In Stock See Full Product Details Product Series Overview Fluorescence Longpass Dichroic Filters	HPM600-60 Model: HPM600-60 Bandpass Filter, Fluorescence, 25.0 mm, 600 nm Center, 60 nm Bandwidth $195.00 4 Weeks See Full Product Details Product Series Overview Fluorescence Emission Bandpass Filters
YFP	HPF1265	HPX500-20 Model: HPX500-20 Bandpass Filter, Fluorescence, 25.0 mm, 500 nm Center, 20 nm Bandwidth $150.00 In Stock See Full Product Details Product Series Overview Fluorescence Excitation Bandpass Filters	HPD525 Model: HPD525 Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 530-595 nm Trans. $195.00 In Stock See Full Product Details Product Series Overview Fluorescence Longpass Dichroic Filters	HPM550-40 Model: HPM550-40 Bandpass Filter, Fluorescence, 25.0 mm, 550 nm Center, 40 nm Bandwidth $195.00 In Stock See Full Product Details Product Series Overview Fluorescence Emission Bandpass Filters
YGFP	HPF1235	HPX500-20 Model: HPX500-20 Bandpass Filter, Fluorescence, 25.0 mm, 500 nm Center, 20 nm Bandwidth $150.00 In Stock See Full Product Details Product Series Overview Fluorescence Excitation Bandpass Filters	HPD515 Model: HPD515 Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 520-565 nm Trans. $195.00 In Stock See Full Product Details Product Series Overview Fluorescence Longpass Dichroic Filters	HPM535-30 Model: HPM535-30 Bandpass Filter, Fluorescence, 25.0 mm, 535 nm Center, 30 nm Bandwidth $306.00 In Stock See Full Product Details Product Series Overview Fluorescence Emission Bandpass Filters

Superior Stabilife^® Coating Technology

HPF™ fluorescence filters are manufactured using our patented Stabilife^® coating technology. They are manufactured using two patented processes for the deposition of metal oxide thin film optical coatings: Reactive Ion Plating (RIP) and Hybrid Plasma Enhanced Deposition (HPED). Both processes yield highly dense, thin film coatings with extraordinary hardness, abrasion resistance, and adhesion to the substrate. Newport's Stabilife processes have been in full-scale production at our coating facility in Franklin, Massachusetts since the early 1990s.

Higher Film Density & Maximized Spectral Stability

For demanding applications such as fluorescence detection, wavelength stability is absolutely critical to insure dependable results. Newport's fluorescence filters with Stabilife coating technology have much higher spectral stability than competitors. One of the critical factor affecting the spectral stability of an optical coating is film density. Unlike competitor's unstabilized metal oxide thick film coating with less film density which typically contributes to environmentally induced spectral shift of 2-5%, Newport's Stabilife coatings have a much higher density and lower void ratio and are therefore less affected by water absorption. They typically exhibit total wet-to-dry shifts of less than 0.02% of wavelength.

Measured transmittance scans of a Stabilife filter at 0% and 100% relative humidity. Scans are exactly overlaid as no shift is discernable at the standard scan speed for a 30nm bandwidth filter.

Minimized Spectral Shifting for Temperature Variations

Measured temperature-induced wavelength shift of an unstabilized metal oxide ultranarrow bandpass filter compared to a Stabilife® ultra-narrow bandpass filter.

Stabilife coatings are typically 5 to 10 times less sensitive to thermal variation than un-stabilized metal oxide films as a result of film densification. Temperature change functions are a catalyst for moisture migration in thin films having a significant volume of voids. When un-stabilized films are exposed to high temperatures, moisture migrates out of film voids contributing to the wavelength change discussed earlier. The high film density and reduced permeability resulting from the Stabilife processes reduces this effect providing the maximum spectral stability available for all types of precision coatings including bandpass, dichroic, edge, notch and polarizer coatings.

Filter Holders

Newport's fluorescence filters are conveniently sized at 25.0 mm diameter, to be compatible with standard epifluorescence microscopy cubes or filter holders. These filters are also compatible with standard one inch diameter Newport filter mounts.
