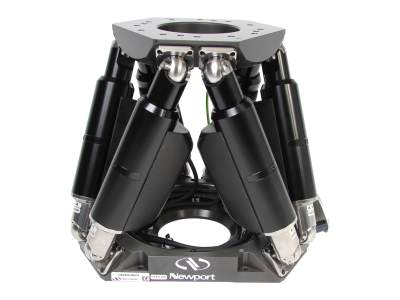

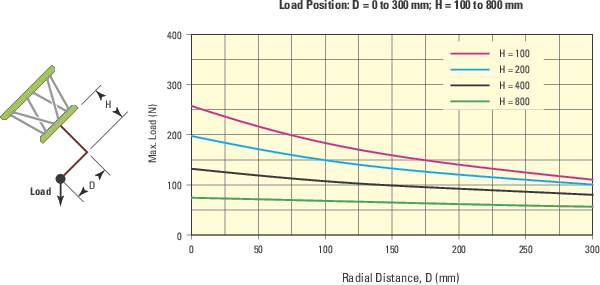

The HXP200-MECA High Load 6-Axis Hexapod is a parallel kinematic motion device that provides six degrees of freedom: X, Y, Z, pitch, roll, and yaw. The HXP200 is an effective solution to complex motion applications that demand a high load capacity of up to 50 kg, centered and offset loads of at least 5kg. The HXP200 also features long travel ranges (up to ±59mm), fast speeds (up to 81mm/s), high stiffness and stability. The HXP200 is driven by six DC servo motor actuators which provide precise MIM (0.2µm). A brake on the actuator eliminates drift at power-off conditions. A critical design feature that enhances the overall motion performance is the joints with which the actuators are attached to the base and the moving top plate. The preloaded and backlash-free, cardan joints enhance not only the repeatability and positioning performance of the HXP200, but are also key to its position stability and stiffness. Determine if the HXP200-MECA is the right hexapod for your application by using Newport's free HexaViz Simulation Software.
The HXP200-ELEC-D controller to be purchased separately to drive the HXP200-MECA.
HXP50-MECAHexapod, High Precision, 125 mm Diameter Platform, 5 kg Load, M6
UNIVERSAL
4 Weeks
HXP1000-MECAHigh Load Hexapod, 450 kg Centered Load Capacity, M6
UNIVERSAL
12 Weeks
HXP200-MECA - Drawings & CAD
Additional CAD file downloads are not available for this product.
HXP200-MECA - Drawings
Additional drawings are not available for this product.
