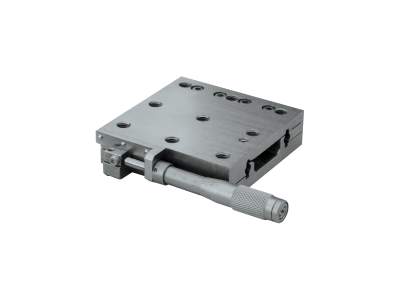

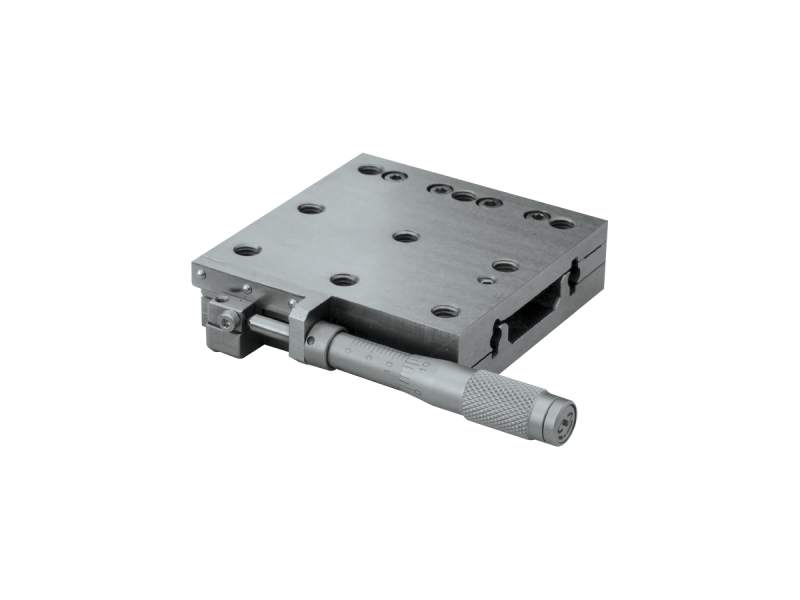

The M-SDS65 Metric Linear Translation Stage incorporates maximum performance and 25 mm travel into a 65 x 65 x 18 mm footprint. Especially designed for industrial OEM system integration, the stainless steel construction features higher rigidity, superior clean room acceptability, and better long-term stability than aluminum stages. Our novel manufacturing methods, based on fewer machined parts, allows for a low-profile design with higher performance. The M-SDS65 has a 160 N load capacity and can be directly stacked into an XY-configuration, and an XYZ assembly can be built using the available 90° angle brackets. For rotational movement, these stages are compatible with the RS Series Rotation Stages and GON Series Goniometers.
Our novel manufacturing methods, based on fewer machined parts, allows for a low-profile design with higher performance for moderate load capacities up to 36 lbs. (160 N). They can be stacked into multi-axis configurations with 90° angle brackets available for vertical motion. (To mount M-SDS25 and SDS40 stages to optical tables having 1 in. (25 mm) or larger grid, Slotted Bases are needed and sold separately.)
Compared to classic single-row ball bearing V-groove profile, SDS stages feature unique bearing way profile which provides extended contact with the stainless steel ball bearings to achieve improved stiffness, higher load capacity and optimized stress distribution at the end of the contacts.
Side-mounted micrometers minimizes the overall stage footprint while maintaining a low profile. These stages also feature an easy access locking mechanism for each axis. SDS Stages are available in three square sizes with sides measuring 25 mm, 40 mm, and 65 mm, and are supplied with a BM Series Micrometer already installed.
Slotted base plates are available for versatile mounting of SDS stages to optical tables or other stages. Please see the accessory section for more information.
| Compare | Description | Compatibility | Drawings, CAD & Specs | Avail. | Price | |||
|---|---|---|---|---|---|---|---|---|
 |
CCL-1 Cable Clamps, Qty 5 Short and 5 Long | UNIVERSAL |
In Stock
|
$49.00 |
|
|||
 |
BB-L Optical Beam Block, Tool Holder, Magnetic-Base, Large | UNIVERSAL |
In Stock
|
$43.00 |
|
|||
 |
M-BDK-1 Ball Driver Tool Set, Includes: 1.5, 2, 2.5, 3, 4 & 5 mm Wrenches | METRIC |
In Stock
|
$39.00 |
|
|||
 |
AW-1 Adaptor Washers, 1/4-20 (M6) to 8-32 (M4), Qty 10 | UNIVERSAL |
In Stock
|
$20.00 |
|
|||
 |
M-SDS65-BK 90 Degree Angle Bracket, M-SDS65, M6 Thread | METRIC |
In Stock
|
$203.00 |
|
|||
 |
M-SK-A Socket Head Cap Screw Kit, Stainless Steel, M4 & M6, Qty 805 | UNIVERSAL |
In Stock
|
|
||||
 |
9022NF ezTrac Optical Rail, 2.5 in. Length | UNIVERSAL |
In Stock
|
$42.00 |
|
| Compare | Description | Compatibility | Drawings, CAD & Specs | Avail. | Price | |||
|---|---|---|---|---|---|---|---|---|
 |
M-443 Linear Stage, High-Performance, Low-Profile, Ball Bearings, 50 mm, M6 | METRIC |
In Stock
|
$452.00 |
|
|||
 |
M-SDS65 Manual Linear Stage, 25 mm Travel, Ball Bearings, M6 Threads | METRIC |
In Stock
|
$803.00 |
|
|||
 |
M-433 Linear Stage, High-Performance, Low-Profile, Ball Bearings, 46 mm, M6 | METRIC |
In Stock
|
$415.00 |
|
|||
 |
M-423 Linear Stage, High-Performance, Low-Profile, 25 mm, M6 | METRIC |
1 Week
|
$348.00 |
|
|||
 |
9067-COM-M Manual Linear Stage, Crossed-Roller, 25.4 mm, M4, M6, No Baseplate | METRIC |
|
$653.00 |
|
|||
 |
M-SDS25 Manual Linear Stage, 10 mm Travel, Ball Bearings, M2 and M4 Threads | UNIVERSAL |
In Stock
|
$652.00 |
|
|||
 |
9063-COM-M Manual Linear Stage, Gothic-Arch Bearings, 25.4 mm, M4 and M6, No Baseplate | METRIC |
In Stock
|
$537.00 |
|
|||
 |
9063-X-M Manual Linear Stage, Gothic-Arch Bearings, 25.4 mm Travel, M4 and M6 | METRIC |
2 Weeks
|
$625.00 |
|
|||
 |
9063-X-P-M Motorized Linear Stage, Gothic-Arch Bearing, 65x65 mm, 25.4 mm, M4 & M6 | METRIC | $1,438.00 |
|
||||
 |
9067-X-M Manual Linear Stage, Crossed-Roller, 25.4 mm, M4, M6 | METRIC |
In Stock
|
$735.00 |
|
| Compare | Description | Compatibility | Drawings, CAD & Specs | Avail. | Price | |||
|---|---|---|---|---|---|---|---|---|
 |
M-B-2B Adaptor Plate, 25x25 or 40x40 mm Stage to Optical Table or 65x65 mm Stage | METRIC |
In Stock
|
$48.00 |
|
|||
 |
EQ50-E Outer Bracket, Compatible with UMR5 Stages | UNIVERSAL |
In Stock
|
$145.00 |
|
|||
 |
M-B-2C Adaptor Plate, 25x25 mm Stage to Optical Table or 65x65 mm Stage | METRIC |
In Stock
|
$56.00 |
|
|||
 |
M-GON65-L Goniometric Stage, Lower, ±5°, 65 x 65 x 30 mm, M3 & M6 | METRIC |
In Stock
|
$854.00 |
|
|||
 |
EQ50-I Inner Bracket, Compatible with UMR5 Stages | UNIVERSAL |
In Stock
|
$122.00 |
|
|||
 |
M-GON65-U Goniometric Stage, Upper, ±10°, 65 x 65 x 30 mm, M3 & M6 | METRIC |
In Stock
|
$854.00 |
|
|||
 |
M-B-1.25 Adaptor Plate, 25x25 mm Stage to 40x40 mm Stage | METRIC |
In Stock
|
$56.00 |
|
