M1Q-PK Mirror Mount 10 Pack

Mirror Mount 10 Pack, 1.0 in., 2 Knob Actuators, M1Q

Model: M1Q-PK

$428.00

In Stock

Compare

Add to List

Product Series Overview

M Series Clear Edge Mirror Mounts

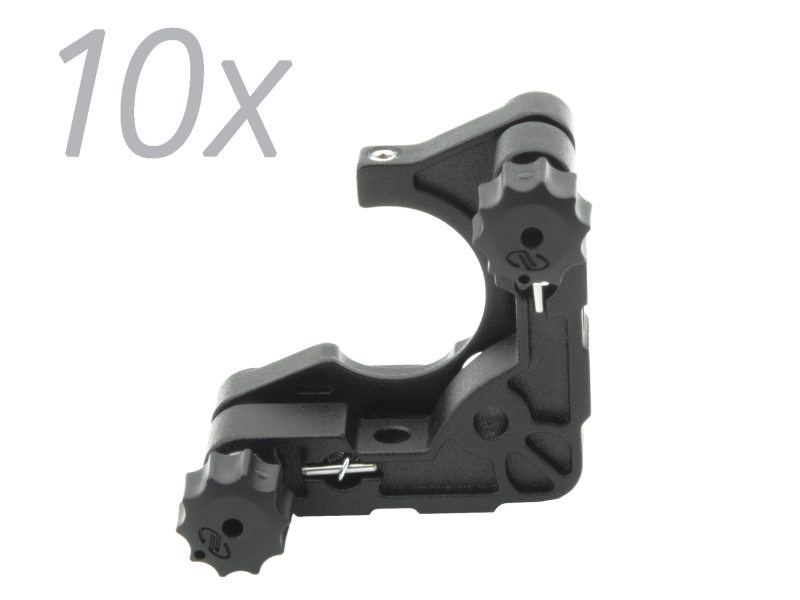

This is a 10-pack of the M1Q

Mirror Mounts. The M1Q-PK is a Cost-Saving Pack of 10 M1Q Mirror Mounts. The M1Q holds 1 inch (25.4 mm) diameter optics. Two precision 100-TPI adjustment screws are standard providing exceptionally smooth, high-resolution adjustment.

Specifications

Technical Specs

Mechanism

Kinematic
Optic Diameter

25.4 mm
Number of Actuators

2
Actuator Locks

No
Adjustment Screw Thread

100 TPI
Adjustments

θx, θy
Sensitivity

3.8 arc sec
Angular Range

±4°

Optic Loading

Front
Material

Coated Aluminum
Drive Type

Knob, non-locking
Thread Type

8-32 (M4) CLR
Optical Axis Height

25.4 mm
Special Features

10-Pack

Mechanism

Kinematic
Optic Diameter

25.4 mm
Number of Actuators

2
Actuator Locks

No
Adjustment Screw Thread

100 TPI
Adjustments

θx, θy
Sensitivity

3.8 arc sec
Angular Range

±4°

Optic Loading

Front
Material

Coated Aluminum
Drive Type

Knob, non-locking
Thread Type

8-32 (M4) CLR
Optical Axis Height

25.4 mm
Special Features

10-Pack

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

M1Q Drawing (324.6 kB, PDF)

Other

M1Q-PK RoHS Certificate (277.3 kB, PDF)
M1Q-PK_RoHS2021.pdf (679.5 kB, PDF)
