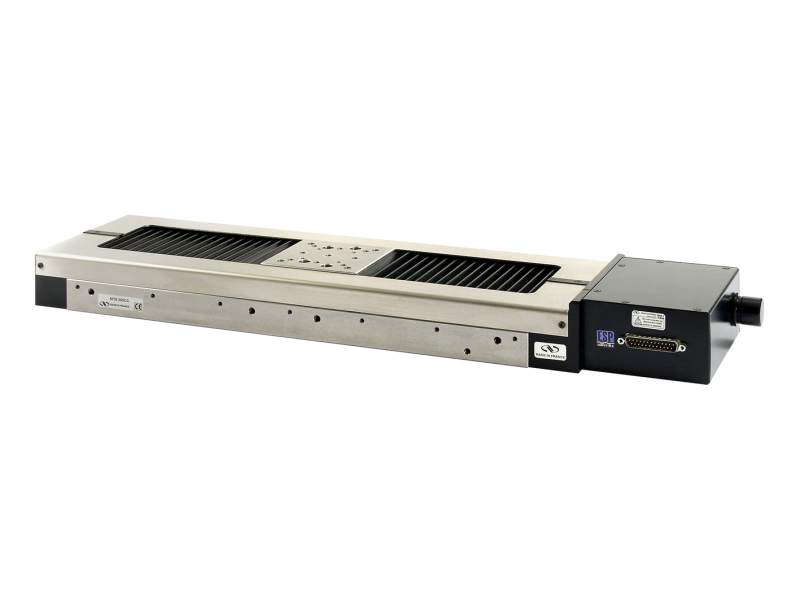

The MTN300CC Linear Stage features an all-steel construction and combines high stiffness and thermal stability with a low profile design. This DC drive version has 300 mm of travel and 0.1 μm Minimum Incremental Motion. MTN stages can bear up to 100 kg with an exceptional high axial load capacity up to 200 N. Features include: opposing single-row bearing surface, a diamond-corrected lead screw, a matched, precision-lapped nut and a non-migrating ball cage design. The nut design includes anti-backlash preloading and a sophisticated decoupling system ensuring little to no stage movement. The non-migrating ball cage design prevents any drift in vertical applications.
All MTN-CC stages are delivered with a MCAB-3 cable, 3-meter cable with a SUB-D25M connector for direct connection to Newport Controllers.
Based on axis required, choose a specific controller to pair with the stage. Along with an XPS-D or XPS-RLD controller, a driver module is required.
| Compare | Description | Compatibility | Drawings, CAD & Specs | Avail. | Price | |||
|---|---|---|---|---|---|---|---|---|
 |
XPS-D Universal High-Performance 1-8 Axis Motion Controller and Driver 1 | UNIVERSAL | ||||||
 |
XPS-RLD Universal High-Performance 1-4 Axis Motion Controller and Driver 2 | UNIVERSAL | ||||||
 |
ESP302 3-Axis DC and Stepper Motion Controller | UNIVERSAL |
| Compare | Description | Compatibility | Drawings, CAD & Specs | Avail. | Price | |||
|---|---|---|---|---|---|---|---|---|
 |
MCAB-1 Cable, Motorized Stage, 1 m, DB25-M to DB25-F | UNIVERSAL |
In Stock
|
$220.00 |
|
|||
 |
MCAB-3 Cable, 3 m, DB25 Male to DB25 Female | UNIVERSAL |
In Stock
|
$270.00 |
|
|||
| |
MCAB-5 Cable, 5 m, DB25 Male to DB25 Female | UNIVERSAL |
In Stock
|
$351.00 |
|
|||
| |
MCAB-7 Cable, 7 m, DB25 Male to DB25 Female | UNIVERSAL |
In Stock
|
$442.00 |
|
|||
| |
MCAB-10 Cable, 10 m, DB25 Male to DB25 Female | UNIVERSAL |
In Stock
|
$550.00 |
|
