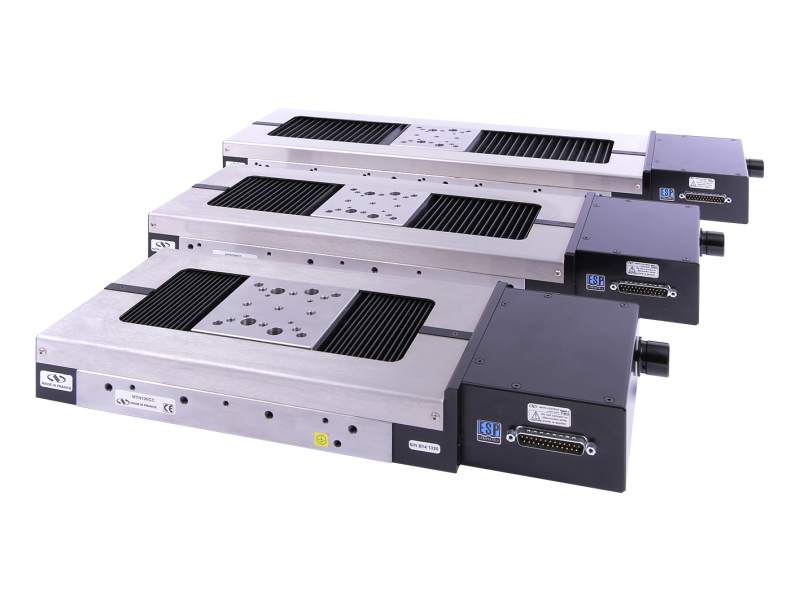

MTN linear stages are durable, all-steel construction positioners with exceptional load capacity, stiffness and thermal stability. They are designed for applicatons that require moving heavy loads with sub-micron precision over 100-, 200- or 300-mm travel ranges. These stages feature closed-loop DC or brushless DC motor drive systems, making them ideal for applications that need faster speeds or higher repeatability.
| Compare | Model | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|
MTN100CC Motorized Linear Stage, Steel, DC Motor, 100 mm Travel, M4 and M6 |
In Stock
|
$11,750.00 |
|
|||
|
|
MTN200CC Motorized Linear Stage, Steel, DC Motor, 200 mm Travel, M4 and M6 |
In Stock
|
$12,230.00 |
|
|||
|

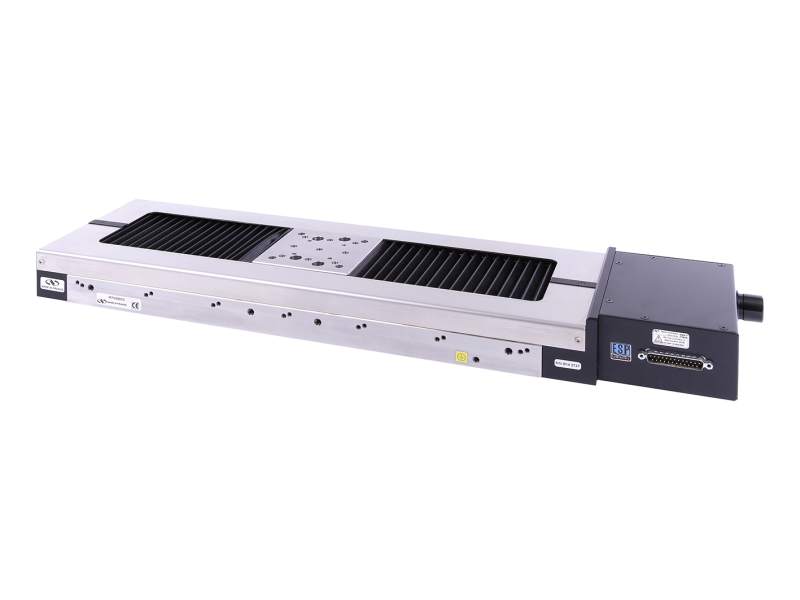

MTN300CC Motorized Linear Stage, Steel, DC Motor, 300 mm Travel, M4 and M6 |
8 Weeks
|
$12,906.00 |
|
| Models |
$11,750.00
In Stock
Product Series Overview
|
$12,230.00
In Stock
Product Series Overview
|
$12,906.00
8 Weeks
Product Series Overview
|
|---|---|---|---|
| Travel Range | 100 mm | 200 mm | 300 mm |
| Maximum Speed | 100 mm/s | 100 mm/s | 100 mm/s |
| Minimum Incremental Motion | 600 nm | 600 nm | 600 nm |

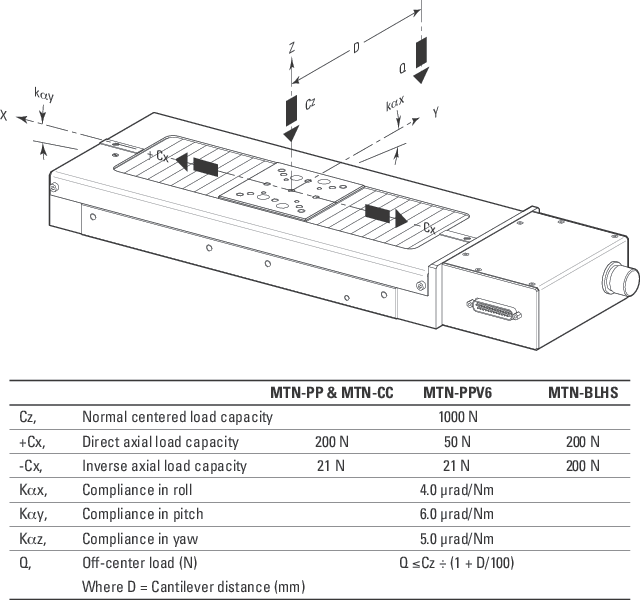

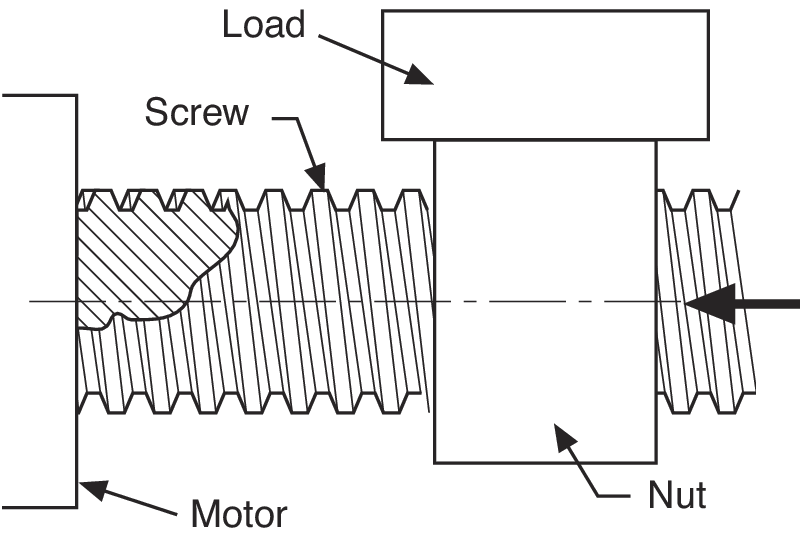

| Centered Load Capacity | 1000 N | 1000 N | 1000 N |
| Axial Load Capacity (+Cx) | 200 N | 200 N | 200 N |
| Inverse Axial Load Capacity (-Cx) | -21 N | -21 N | -21 N |
| Accuracy, Typical | ±1.5 µm | ±2.0 µm | ±2.5 µm |
| Accuracy, Guaranteed | ±2.5 µm | ±2.5 µm | ±3.0 µm |
| Uni-directional Repeatability, Typical | ±0.30 µm | ±0.50 µm | ±0.50 µm |
| Uni-directional Repeatability, Guaranteed | ±0.75 µm | ±0.75 µm | ±0.75 µm |
| Bi-directional Repeatability, Typical | ±0.75 µm | ±0.75 µm | ±0.75 µm |
| Bi-directional Repeatability, Guaranteed | ±1.5 µm | ±1.5 µm | ±1.5 µm |
| Origin Repeatability | ±0.75 µm | ±0.75 µm | ±0.75 µm |
| Pitch, Typical | ±10 µrad | ±20 µrad | ±30 µrad |
| Pitch, Guaranteed | ±20 µrad | ±40 µrad | ±60 µrad |
| Yaw, Typical | ±10 µrad | ±17 µrad | ±30 µrad |
| Yaw, Guaranteed | ±17 µrad | ±35 µrad | ±53 µrad |
| Compliance in Pitch | 6 µrad/Nm | 6 µrad/Nm | 6 µrad/Nm |
| Compliance in Yaw | 5 µrad/Nm | 5 µrad/Nm | 5 µrad/Nm |
| Compliance in Roll | 4 µrad/Nm | 4 µrad/Nm | 4 µrad/Nm |
| Cable Length | 3 m | 3 m | 3 m |
| Thread Type | M4 and M6 | M4 and M6 | M4 and M6 |
| Weight | 10 kg | 12.3 kg | 14.6 kg |
| MTBF | 20,000 h (25% load, 10% duty cycle) | 20,000 h (25% load, 10% duty cycle) | 20,000 h (25% load, 10% duty cycle) |
DC Motors are best characterized by their high speeds, smooth motion, good efficiency and a high power/weight ratio. An incremental sensor consisting of an optical scale and encoder head provides position feedback for smooth motion and good repeatability. DC Motor-driven stages are preferable to stepper motor stages for applications requiring high dynamic speed and tight repeatability. MTN series is available in brushless DC motor version for faster speed and finer repeatability and stepper motor version for a more economical solution.
MTN Series stages are available with Stepper, DC, or Brushless DC motors.
| MTN-PP (Stepper Motor) | MTN-CC (DC Motor) | MTN-BLHS (Brushless DC Motor) | |
|---|---|---|---|
| Travel Range (mm) | 100 / 200 / 300 | 100 / 200 / 300 | 100 / 200 / 300 |
| Maximum Speed (mm/s) | 40 | 100 | 250 |
| Minimum Incremental Motion (nm) | 100 | 600 | 300 |
| Uni-directional Repeatability, Guaranteed (µm) | ±0.75 | ±0.75 | ±0.3 |
| Bi-directional Repeatability, Typical (Guaranteed) (µm) | ±1.75 (±2.75) | ±0.75 (±1.5) | ±0.3 (±0.5) |
| Accuracy, Typical (Guaranteed) (µm) | ±1.5 (±2.5) / ±2.0 (±2.5) / ±2.5 (±3.0) | ±1.5 (±2.5) / ±2.0 (±2.5) / ±2.5 (±3.0) | ±2.0 (±4.0) |
The all steel construction allows for extreme stiffness and thermal stability. Because the entire body is made from steel, bi-metallic bending effects and errors are eliminated. Among the all steel linear stages, the MTN boasts the highest load capacity at 100 kg.
Recirculating ball bearings ensure better dynamics and lifetime, as well as equal axial load capacity in both directions.
The non-migrating ball cage design eliminates cage drift, particularly in vertical applications, to enhance reliability.
For XY configurations of MTN stages, use the
Product Series Overview
Product Series Overview
Newport guarantees specification values which are measured and recorded following ASME B5.57 and ISO 230-2 standards. The typical performance values are two times better than the guaranteed specifications.
Compatible motion controllers for the MTN-CC DC motor-driven stages are:
