The RV120BPE High Torque Rotation Stage provides high-precision angular positioning accuracy combined with high load capacity. This 120 mm diameter stage features a Full-step stepper drive equipped with a reduction gear providing higher torque. All RV stages are constructed of tool steel, with rotation accuracy ensured by ground bearing surfaces. A double row of preloaded bearings allows for high off-center loads in a reduced footprint. The single monolithic design offers improved stiffness without compromising dynamic performance. Precise rotation is ensured by a precision ground and hardened worm gear. A rotary encoder mounted on the worm gear shaft provides 0.001° position feedback resolution.
Steel Construction
The tool steel construction ensures enhanced rotation accuracy due to the ground bearing surfaces. The single monolithic design offers improved stiffness and thermal stability without compromising dynamic performance.
Highest Load Capacity
The double row of preloaded ball bearings allows for higher off center loads for its small footprint. The largest member of the RV stepper motor product family can bear up to 650 kg or rotate up to 20 °/s while maintaining eccentricity of less than 4 µm.
Full-Step Stepper Motor
This full-step version is equipped with a reduction gear to obtain higher torque and is primarily designed for applications requiring the direct positioning accuracy to be maintained to within the stage's mechanical resolution when power is switched off.

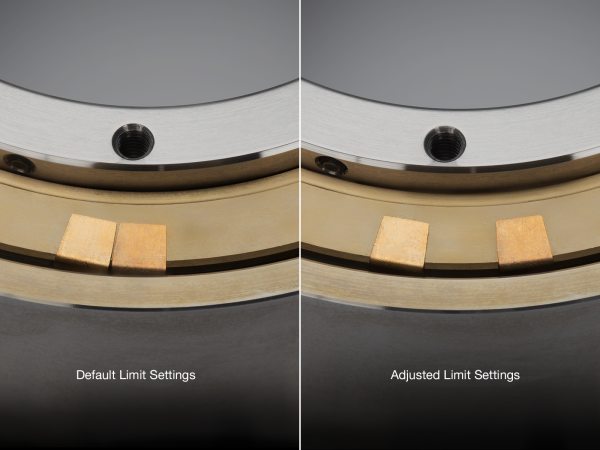

Configurable Limit Switches
Most of the RV models are designed with optical limit switches to limit movement to 170°. These can be enabled or disabled for complete 360° motion with a simple "Allen" wrench.
Based on axis required, choose a specific controller to pair with the stage. Along with an XPS-D or XPS-RLD controller, a driver module is required.
| Compare | Description | Compatibility | Drawings, CAD & Specs | Avail. | Price | |||
|---|---|---|---|---|---|---|---|---|
 |
XPS-D Universal High-Performance 1-8 Axis Motion Controller and Driver 1 | UNIVERSAL | ||||||
 |
XPS-RLD Universal High-Performance 1-4 Axis Motion Controller and Driver 2 | UNIVERSAL | ||||||
 |
ESP302 3-Axis DC and Stepper Motion Controller | UNIVERSAL |
| Compare | Description | Compatibility | Drawings, CAD & Specs | Avail. | Price | |||
|---|---|---|---|---|---|---|---|---|
 |
M-FK-BLX L-Allen Wrench Set, Sizes: 1.5, 2, 2.5, 3, 4, 5, 6, 8, 10 mm, Metric | METRIC |
In Stock
|
$36.00 |
|
|||
 |
MMCABLE-REG Inline Regulator, 5 VDC, for MMCABLEs 5 m or longer | UNIVERSAL |
In Stock
|
$240.00 |
|
|||
 |
M-PBN16 Base Plate, PBN Series, Use with UTR160 Series Rotation Stages | UNIVERSAL |
In Stock
|
$222.00 |
|
|||
 |
M-SK-M4A Black Oxide Screw Kit, M4, Assortment, Qty 249 | UNIVERSAL |
In Stock
|
$74.00 |
|
| Compare | Description | Compatibility | Drawings, CAD & Specs | Avail. | Price | |||
|---|---|---|---|---|---|---|---|---|
 |
URS100BPP Motorized Rotation Stage, Stepper, Continuous 360° Motion, URS100 | UNIVERSAL |
In Stock
|
$5,286.00 |
|
