The RV Series steel rotation stages combine high precision positioning and extremely high load capacities to operate in a large variety of conditions for scientific and industrial applications. Five stage sizes and two stepper motor configurations are available, as are vacuum compatible versions. For applications requiring the highest torque, the BPE stepper motor version is recommended. Also, open-loop stepper motors can be a lower cost alternative to certain closed-loop DC servo systems.
| Compare | Model | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|

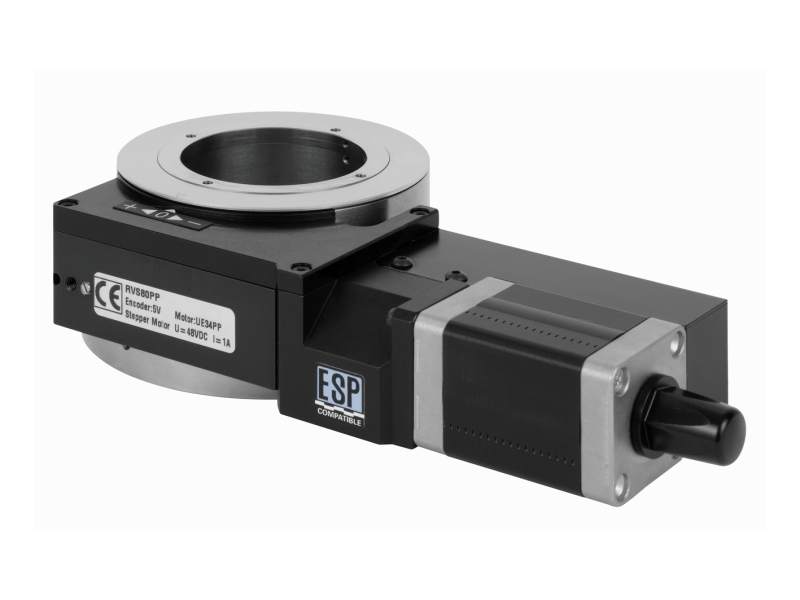

RVS80PP Motorized Rotation Stage, 80 mm, Stepper Drive | $6,341.00 |
|
||||
|
RV120BPP Motorized Rotation Stage, 120 mm, High-Torque Mini-Step Drive |
3 Weeks
|
$9,102.00 |
|
|||
|
|
RV120BPE Motorized Rotation Stage, 120 mm, High-Torque Full-Step Drive |
8 Weeks
|
$9,991.00 |
|
|||
|
RV120BPEV6 Motorized Rotation Stage, 120 mm, High-Torque Full-Step Drive, Vacuum |
8 Weeks
|
$13,808.00 |
|
|||
|
RV160BPP Motorized Rotation Stage, 160 mm, High-Torque Mini-Step Drive |
5 Weeks
|
$11,327.00 |
|
|||
|
|
RV160BPE Motorized Rotation Stage, 160 mm, High-Torque Full-Step Drive |
8 Weeks
|
$12,878.00 |
|
|||
|
|
RV240BPP Motorized Rotation Stage, 240 mm, High-Torque Mini-Step Drive |
3 Weeks
|
$13,468.00 |
|
|||
|
|
RV240BPE Motorized Rotation Stage, 240 mm, High-Torque Full-Step Drive |
8 Weeks
|
$16,513.00 |
|
|||
|
RV350BPP Motorized Rotation Stage, 350 mm, High-Torque Mini-Step Drive |
8 Weeks
|
$19,048.00 |
|
|||
|
|
RV350BPE Motorized Rotation Stage, 350 mm, High-Torque Full-Step Drive |
8 Weeks
|
$21,445.00 |
|
The tool steel construction ensures enhanced rotation accuracy due to the ground bearing surfaces. The single monolithic design offers improved stiffness and thermal stability without compromising dynamic performance.
The double row of preloaded ball bearings allows for higher off center loads for its small footprint. The largest member of the RV stepper motor product family can bear up to 650 kg or rotate up to 20 °/s while maintaining eccentricity of less than 4 µm.
Full-step (BPE and PE) and mini-step (BPP and PP) versions of the RV stepper motor stages are available. The full-step version is equipped with a reduction gear to obtain higher torque and is primarily designed for applications requiring the direct positioning accuracy to be maintained to within the stage's mechanical resolution when power is switched off. The mini-step versions offer a 1/10-step per encoder count, enabling speed of up to 20°/sec. With the exception of the RVS80PP, these stages feature a worm-mounted rotary encoder for improved accuracy and repeatability and to detect motor stalling, an important feature for applications with high acceleration ramps and high torques or payload inertias. For the RVS80PP, position is attained by the number of commanded steps and micro-steps.
Vacuum compatible verions of the RV series full-step stepper motor stages are available. They can be used in vacuum environment down to 10-6 hPa. Check out our vacuum products brochure for more information. Contact us today to discuss your application requirements.
Most of the RV models are designed with optical limit switches to limit movement to 170°. These can be enabled or disabled for complete 360° motion with a simple "Allen" wrench.
Newport guarantees specification values which are measured and recorded following ASME B5.57 and ISO 230-2 standards. The typical performance values are two times better than the guaranteed specifications.
Compatible motion controllers for these stepper motor driven stages are:
