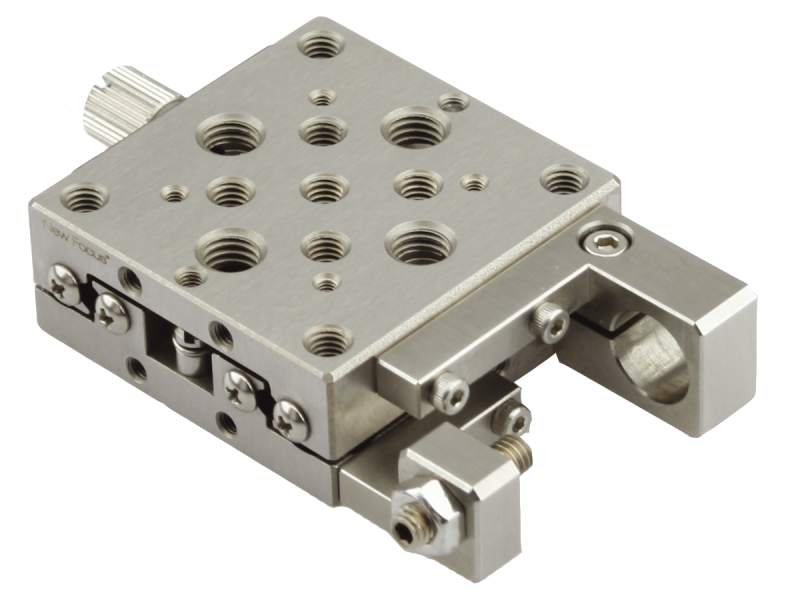

The 9062-COM-M Low Profile Gothic-Arch Stainless-Steel Commercial Stage is a linear X translation stage with 12.7 mm travel that is designed to fit directly into your system. The stage has a 40 mm x 40 mm platform and a reduced profile by eliminating the mounting plates. M4 and M6 mounting threads.
The unique bearing design of these Gothic Series translation stages offer the ultimate stability in temperature-fluctuating environment. Unlike the multicomponent design of standard stages, which can loose their preload properties over time, Gothic Series bearing ways are machined directly out of the stage platform.
The gothic arch contact profile for the stainless steel ball bearings offers increased contact area to reduce bearing stresses, making the stage able to carry higher loads and more resistant to bearing-way damage.

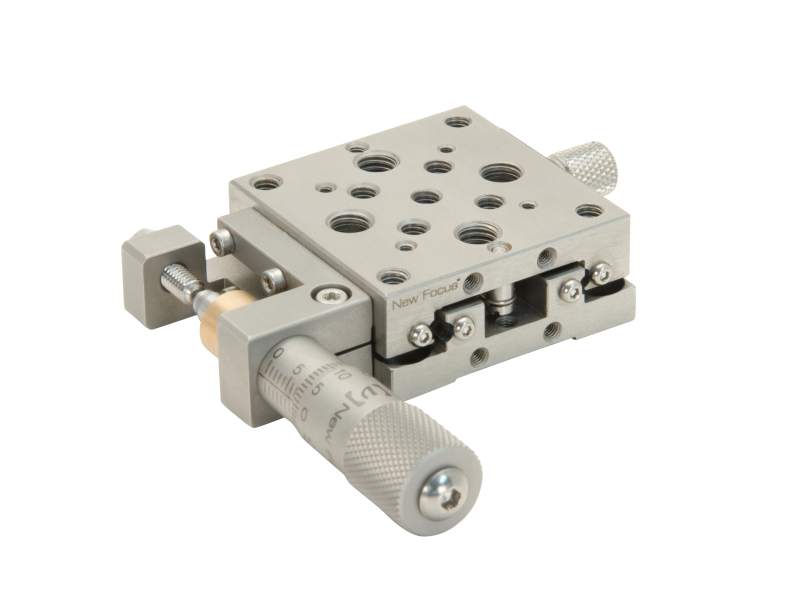

All Gothic series stages have side-mounted actuator clamps, minimizing the final footprint while maintaining a low profile height. These stages can also be stacked for multi-axis translation and include a side-mounted locking mechanism for each axis. Shown is 9062-COM with micrometer.
The actuator mounts on the Gothic Series stages can be easily reconfigured for left-handed operation. The micrometer block is relocated where the push block is and vise versa. The video shows a micrometer reconfiguration of the 9062-COM stage.
| Compare | Description | Compatibility | Drawings, CAD & Specs | Avail. | Price | |||
|---|---|---|---|---|---|---|---|---|
 |
BB-M Optical Beam Block, Tool Holder, Magnetic-Base, Medium | UNIVERSAL |
In Stock
|
$36.00 |
|
|||
 |
M-BDK-1 Ball Driver Tool Set, Includes: 1.5, 2, 2.5, 3, 4 & 5 mm Wrenches | METRIC |
In Stock
|
$39.00 |
|
|||
 |
AW-1 Adaptor Washers, 1/4-20 (M6) to 8-32 (M4), Qty 10 | UNIVERSAL |
In Stock
|
$20.00 |
|
|||
 |
M-SK-A Socket Head Cap Screw Kit, Stainless Steel, M4 & M6, Qty 805 | UNIVERSAL |
In Stock
|
|
||||
 |
TA-M6Q20-10 Thread Adaptor, M6 Male to 1/4-20 Male, pack of 10 | UNIVERSAL |
In Stock
|
$42.00 |
|
| Compare | Description | Compatibility | Drawings, CAD & Specs | Avail. | Price | |||
|---|---|---|---|---|---|---|---|---|
 |
9062-X-M Manual Linear Stage, Gothic-Arch Bearings, 12.7 mm Travel, M4 and M6 | METRIC |
In Stock
|
$507.00 |
|
|||
 |
9062-XY-M XY Linear Stage, Gothic-Arch Bearings, 12.7 mm Travel, M4 and M6 | METRIC |
In Stock
|
$937.00 |
|
|||
 |
9062-XYZ-M XYZ Linear Stage, Gothic-Arch Bearings, 12.7 mm Travel, M4 and M6 | METRIC |
In Stock
|
$1,423.00 |
|
|||
 |
9062-A-M Angle Bracket, 9062-M Series Stages, XZ and XYZ Configurations | METRIC |
In Stock
|
$97.00 |
|
| Compare | Description | Compatibility | Drawings, CAD & Specs | Avail. | Price | |||
|---|---|---|---|---|---|---|---|---|
 |
M-RS40 Platform Rotation Stage, 40 mm Diameter, 10° Fine, BM11.5 Included, M3 and M6 | METRIC |
1 Week
|
$511.00 |
|
|||
 |
M-B-2B Adaptor Plate, 25x25 or 40x40 mm Stage to Optical Table or 65x65 mm Stage | METRIC |
In Stock
|
$48.00 |
|
|||
 |
9355 Micrometer, 0.5 in. Travel, Unthreaded, For 9062 Series Stages | UNIVERSAL |
In Stock
|
$137.00 |
|
|||
 |
9367 Adjustment Screw, Knob, Braked, 12.7 mm Travel, Ball Tip, 1/4-100 | UNIVERSAL |
In Stock
|
$55.00 |
|
|||
 |
HR-13 Micrometer Head, High Resolution, 0.5 µm Sensitivity, 13 mm Travel | UNIVERSAL |
In Stock
|
$229.00 |
|
