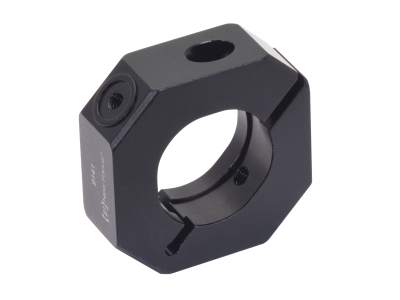

Post Clamp, 25.4 mm Diameter Pedestals and Posts, M4 Thread

Post Clamp, 25.4 mm Diameter Pedestals and Posts, M4 Thread

Model: 9141-M

$75.00

In Stock

Compare

Add to List

Product Series Overview

1.0 in. Post Collars and Clamps

The 9141-M Pedestal Clamp lets you vary the height of your optical mounts, without having to give up the stability of our pedestal risers. These clamps are perfect for building sturdy periscopes. M4 Thread

Specifications

Technical Specs

Type

Post Clamp
Height

16 mm
Thread Type

M4

Material

Aluminum
Diameter

25.4 mm

Type

Post Clamp
Height

16 mm
Thread Type

M4

Material

Aluminum
Diameter

25.4 mm

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

99-9141 (97 kB, PDF)

Other

MKS EU ROHS3 - 9141.pdf (231.3 kB, PDF)
